Lavabiancheria - Capacity 24 kg - Basket cm 73 - cm 97 x 110.5 x 146 h
Lavabiancheria - Capacity 24 kg - Basket cm 73 - cm 97 x 110.5 x 146 h
Lavabiancheria - Capacity 24 kg - Basket cm 73 - cm 97 x 110.5 x 146 h
Lavabiancheria - Capacity 24 kg - Basket cm 73 - cm 97 x 110.5 x 146 h

  • -8%
Lavabiancheria - Capacity 24 kg - Basket cm 73...
Lavabiancheria - Capacity 24 kg - Basket cm 73...
Lavabiancheria - Capacity 24 kg - Basket cm 73...
Lavabiancheria - Capacity 24 kg - Basket cm 73...

Lavabiancheria - Capacity 24 kg - Basket cm 73 - cm 97 x 110.5 x 146 h

G-PT-GWH240
G-PT-GWH240
€13,973.33 €15,188.40 -8%
€13,973.33 Senza tasse €17,047.46 Con tasse €15,188.40 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

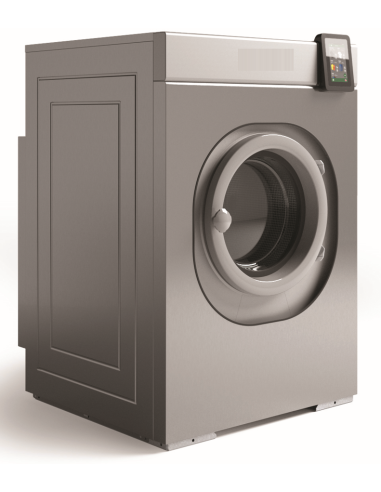

Lavabiancheria - Model GWH - Capacity 24 kg - Diameter basket cm 73 - Dimensions cm 97 x 110.5 x 146 h

HEATING TYPE

Options

+ ACCESSORIES


Washing machines GWH
Dimensions product cm 97 x 110.5 x 146 h
Dimensions packaging C 107 x 120 x 156 h
Net weight / Lord KG 435-455
Warranty 12 months
Norma CE
Origin Italy
TECHNICAL DATA
Capacity load ratio KG 13.4-26.7 (1/9) - kg 12-24 (1/10)
Washing speed/centrifugal rpm 20 ÷ 60/980 max
Factor G 400
Dynamic load on the ground kN 4.6 ± 1.1/16.3
Heating Electric or Direct steam or indirect vapor
Diameter basket mm 730
Depth basket 540 mm
Door diameter 460 mm
Volume basket dm3 240
IDRICAL CONSUMER DATA (based on ISO9398)
Total cycle 60°C 205.3 lt
of which hot water 51.4 lt
of which fresh water 51.4 lt
of which hard water 102.5 lt
Fall discharge inch 3
ELECTRICAL DATA
Power supply Standard Three-phase V380-415/3N/50-60Hz (on request special voltages)
Motor basket kW 3.00
Speed changer Standard inverter
Speed rpm freely set
Electric heating data Electric power std kW 18 (A380-415V) 32.7 - Power consumption std kW/h 6.450
Direct steam heating data Steam pressure bar 1-6 - Steam connection inch 3/4"
Indirect steam heating data Steam pressure bar 3-6 - Steam connection/condensation inch 3/4" - 3/4"
GENERAL FEATURES
Electronicly controlled motor speed (inverter) with check-in condition
Redundant laboratory certified security system
The frame of the machine allows anchoring on the ground without having to move the machine
Suitable for 5 liquid detergent inputs, ergonomic dispenser with 4 compartments
180 openable block°: easy loading and unloading by pulling the cart to the machine
Easy and fast maintenance thanks to the positioning of the internal components
DWS patented weighing system: automatically weighs the billed linen and regulates the actual consumption of resources
Wavy series control: the user interface that can be set according to use, unlimited possibilities for creating and customizing programs. Storage of all usage data. 36 supported languages. Wi-Fi connection
Hot, cold, hard and sweet series water inputs
Automatically managed and mixed water inputs from Wavy control
3" exhaust pipe with 90 curve° and 3 water load pipes from 3/4" included
*WASHING MACHINES
*Load capacity kg 23*
