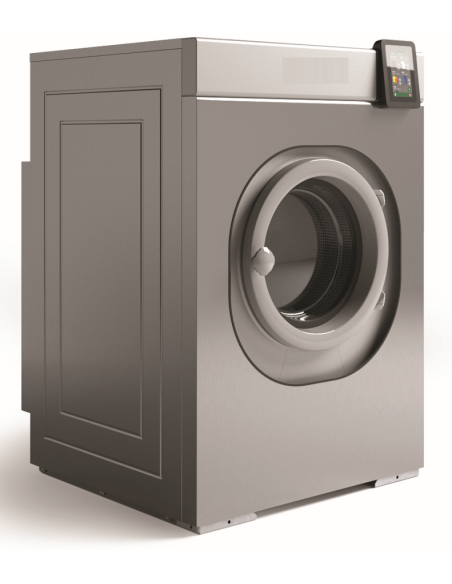

Lavabiancheria - Capacity 8 kg - Basket cm 52 - cm 79.5 x 78 x 124.5 h
G-PT-GWH80
G-PT-GWH80
€6,871.54
€7,233.20
-5%
€6,871.54 Senza tasse
€8,383.28 Con tasse
€7,233.20 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Lavabiancheria - Model GWH - Capacity 8 kg - Diameter basket cm 52 - Dimensions cm 79.5 x 78 x 124.5 h
Options
+ ACCESSORIES
Washing machines | GWH |
Dimensions product | cm 79.5 x 78 x 124.5 h |
Dimensions packaging | C 90 x 104 x 135 h |
Net weight / Lord | Kg 190-205 |
Warranty | 12 months |
Norma | CE |
Origin | Italy |
TECHNICAL DATA | |
---|---|
Capacity load ratio | KG 4.1-8.3(1/9) - kg 3.75-7.5(1/10) |
Washing speed/centrifugal | rpm 20 ÷ 60/1165 max |
Factor G | 400 |
Dynamic load on the ground | kN 1.9 ± 0.5/19.4 |
Heating | Electric or Direct steam or indirect vapor |
Diameter basket | 520 mm |
Depth basket | mm 350 mm |
Door diameter | mm 330 |
Volume basket dm3 | 75 |
IDRICAL CONSUMER DATA (based on ISO9398) | |
---|---|
Total cycle 60°C | 73.2 lt |
of which hot water | 17.8 lt |
of which fresh water | 17.8 lt |
of which hard water | 37.6 lt |
Fall discharge | inch 3 |
ELECTRICAL DATA | |
---|---|
Power supply Standard | Three-phase V380-415/3N/50-60Hz (on request special voltages) |
Motor basket | 0.75 kW |
Speed changer | Standard inverter |
Speed | rpm freely set |
Electric heating data | Electric power std kW 6 (A380-415V) 10.4 - Power consumption std kW/h 1.563 |
Direct steam heating data | Steam pressure bar 1-6 - Steam connection inch 3/4" |
Indirect steam heating data | Steam pressure bar 3-6 - Steam connection/condensation inch 3/4" - 3/4" |
GENERAL FEATURES | |
---|---|
Electronicly controlled motor speed (inverter) with check-in condition | |
Redundant laboratory certified security system | |
The frame of the machine allows anchoring on the ground without having to move the machine | |

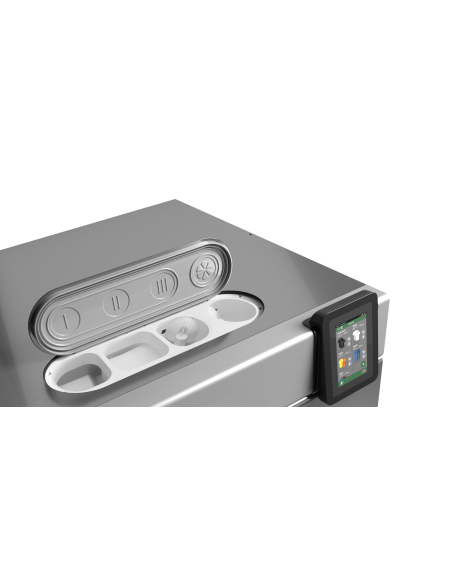

Suitable for 5 liquid detergent inputs, ergonomic dispenser with 4 compartments | |
180 openable block°: easy loading and unloading by pulling the cart to the machine | |
Easy and fast maintenance thanks to the positioning of the internal components | |
DWS patented weighing system: automatically weighs the billed linen and regulates the actual consumption of resources | |

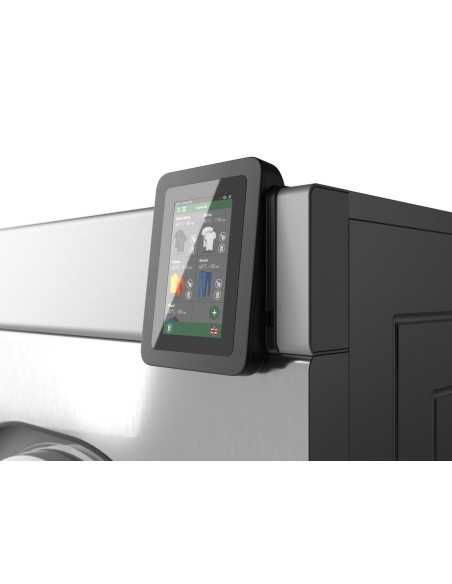

Wavy series control: the user interface that can be set according to use, unlimited possibilities for creating and customizing programs. Storage of all usage data. 36 supported languages. Wi-Fi connection | |
Hot, cold, hard and sweet series water inputs | |
Automatically managed and mixed water inputs from Wavy control | |
3" exhaust pipe with 90 curve° and 3 water load pipes from 3/4" included |
