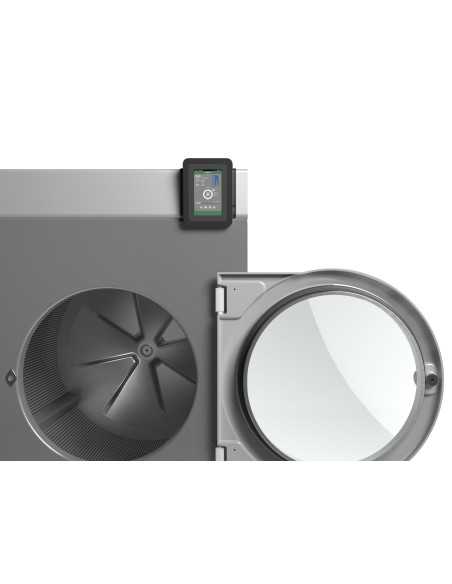

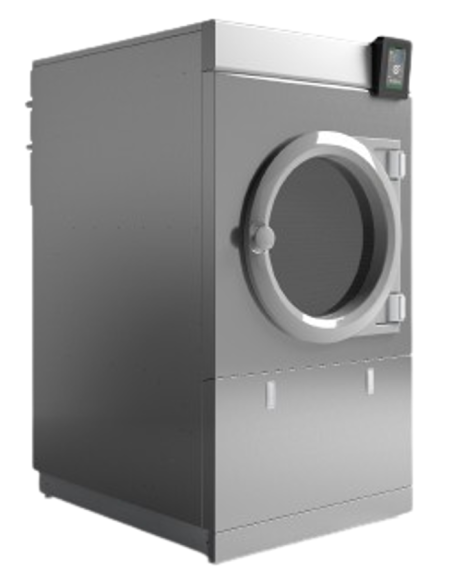

Dryer - Diameter porthole cm 61.2 - cm 97 x 120.5 x 181 h
D-LLG-ES600
D-LLG-ES600
€6,863.20
€7,460.00
-8%
€6,863.20 Senza tasse
€8,373.10 Con tasse
€7,460.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Dryer - Model GD600 - Diameter porthole cm 61.2 - Dimensions cm 97 x 120.5 x 181 h
Options
+ ACCESSORIES
PRODUCT INFORMATION | |
---|---|
Dryer | GD600 |
Dimensions product | cm 97 x 120.5 x 181 h |
Dimensions packaging | cm 107 x 141 x 191 h |
Net weight / Lord | Kg 306-321 |
Warranty | 12 months |
Norma | CE |
Origin | Italy |
TECHNICAL DATA | |
---|---|
Capacity report | kg 24(1:25) - kg 30 (1:20) - kg 33.3 (1:18) |
Volume basket | 600 dm3 |
Diameter basket | cm 61.2 |
Speed rotation basket | 40 / (20-60) |
ELECTRICAL DATA | |
---|---|
Power supply | 380V - 415 V - 3N - 50/60 Hz |
Motor basket | kW 0.55 |
Turnover | Standard |
Suction motor | 0.75 kW |
Discharge | Diameter mm 200 |
Transmission | Reverse with straps |
Rumours | dB < 60 |
Electric heating | Power kW 15+15/10.5/10.5+15 - Electric consumption kW/h 17.4 - Capacity evaporation lt/h 16.8 - Fuses A 45.5 |
Gas heating | Power heating 16-24 linear adjustment - Electric consumption kw/h 0.5 - Gas connection 1/2 inch - Gas port city G110 m3/h 4.7 - Methane flow G20 m3/h 2.6 - GPL G31 m3/h 1 - Capacity evaporation lt/h 20.6 - Fuses A 2 |
Steam heating | Steam consumption kg/h 60 - Steam pressure 3-6 Bar - Steam connection inch 1" IN/ 3/4" OUT - Capacity evaporation lt/h 16.74 - Fuses A 2 |
GENERAL FEATURES | |
---|---|
Verification of the actual rotation of the aluminium plate basket through sensors | |
Redundant security systems: port opening, filter door, temperature management | |

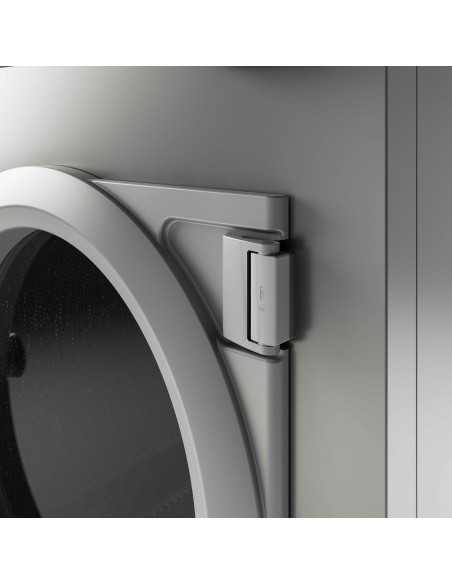

180 openable block° easy loading and unloading of the linen by pulling the cart directly to the front of the machine | |
Easy and fast maintenance thanks to the positioning and compartment of the internal components | |
Unlimited programmable drying diagrams manually to optimize effective resource consumption | |

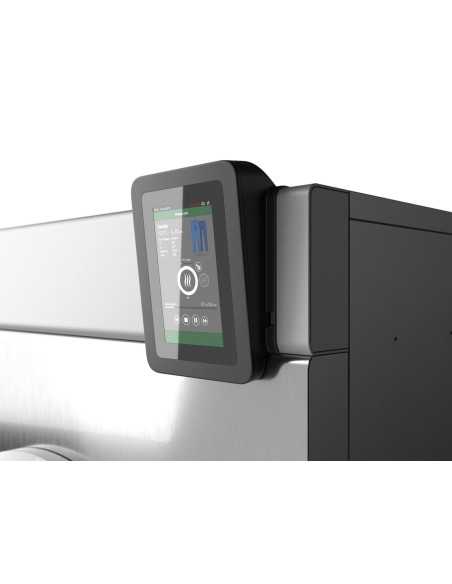

Wavy series control: the user interface that can be set according to use, unlimited possibilities for creating and customizing programs. | |
Storage of all usage data | |
Large volume of air shifted to extreme silection of operation. | |
L'outlet air is filtered by a stainless steel filter. | |
T2 probe to the standard running exhaust, metal clasp | |
Thermal insulation: 25 mm ceramic fiber allow low heating powers and low exhaust air temperatures |
- *DRYER TYPE
- *Room superimposed on a closed circuit*
