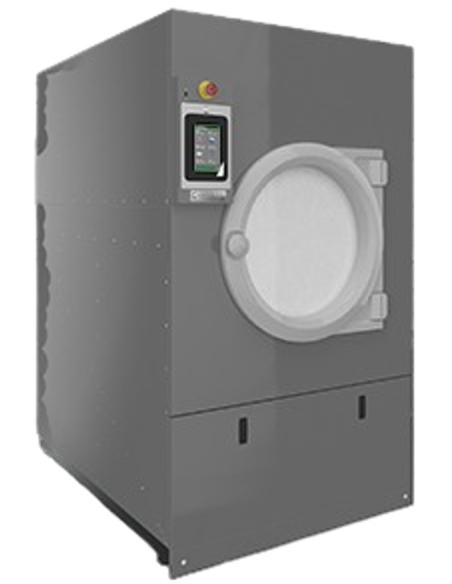

Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 - Three-phase - cm 114 x 179.5 x 195 h
Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 - Three-phase - cm 114 x 179.5 x 195 h
Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 - Three-phase - cm 114 x 179.5 x 195 h
Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 - Three-phase - cm 114 x 179.5 x 195 h
Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 - Three-phase - cm 114 x 179.5 x 195 h

  • -8%
Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 -...
Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 -...
Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 -...
Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 -...
Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 -...

Rotary dryer - Capacity kg 40 ÷ 50 ÷ 55 - Three-phase - cm 114 x 179.5 x 195 h

D-LLG-ES1000
D-LLG-ES1000
€10,792.52 €11,731.00 -8%
€10,792.52 Senza tasse €13,166.87 Con tasse €11,731.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Rotary dryer - Model GD1000- Capacity kg 40 ÷ 50 ÷ 55 - Diameter basket cm 108 - Three-phase - Dimensions cm 114 x 179.5 x 195 h

HEATING TYPE

Options

+ ACCESSORIES


PRODUCT INFORMATION
Dryer GD1000
Dimensions product cm 114 x 179.5 x 195 h
Dimensions packaging cm 135 x 200 x 200 h
Net weight / Lord Kg 465-520
Warranty 12 months
Norma CE
Origin Italy
TECHNICAL DATA
Capacity kg 40 ÷ 50 ÷ 55
Volume basket 1000 lt
Diameter basket cm 108
Depth basket cm 109.2
ELECTRICAL DATA
Power supply Standard Three-phase V380-400-415/3N/50Hz (on request special voltages)
Power thermal thermal thermal thermal kW 54 (electric) - kW 34-52 (gas)
Power motor basket kW 1.10 (electric) - kW 1.10 (gas) - kW 1.10 (steam)
Power total kW 56.20 (electric) - kW 2.20 (gas) - kW 2.20 (steam)
Discharge Diameter mm 250
Direct steam pressure kPa (bar) 600 (6)
Rumours dB < 65
GENERAL FEATURES
Stainless steel basket AISI 430 with inversion
Transmission with reducer + inverter adjustment speed basket
Emergency button
Large load capacity rotary dryer with basket holder consisting of bearings, printed bottom and reinforced with generous size shaft for intensive work

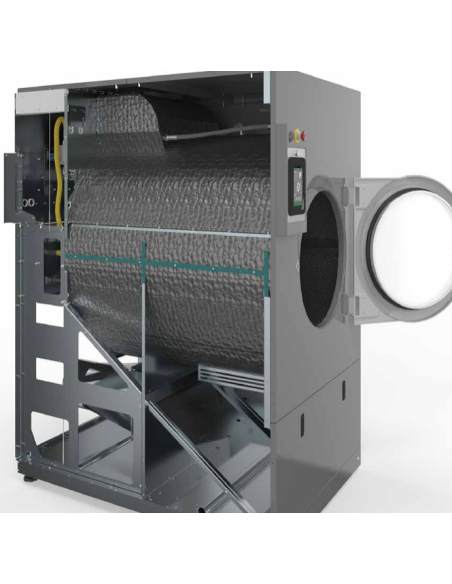

Made with rotary basket and fixed insulation tank to optimize thermal performance and reduce operating costs
2.5 ceramic fiber thermal insulation system cm thick on the tub and insulating thermal panel on the machine front: two solutions that allow low installed heating powers and low air temperatures to discharge
Large air volume circulating inside the basket and extreme noise of funzonation. L'output air is filtered by a double stainless steel filter
Double probe for air temperature detection.

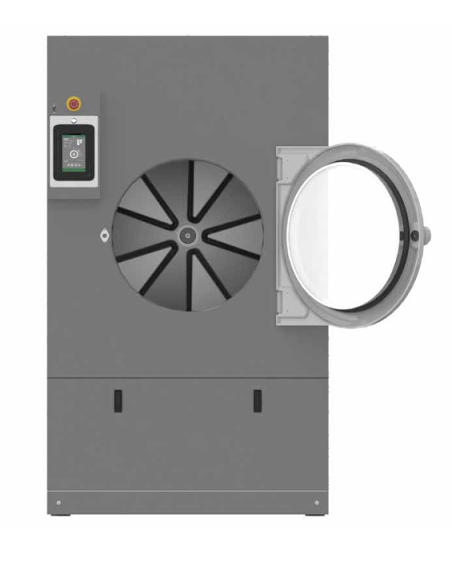

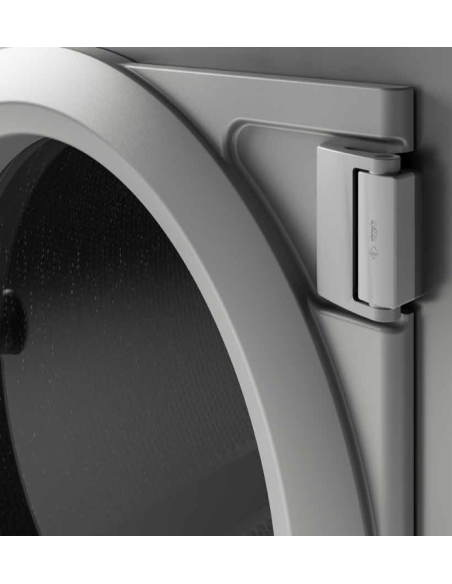

Openable up to 180°: easy loading and unloading of the linen by pulling the cart directly to the front of the machine.
Verification of the actual rotation of the basket, made with aluminium plate, through a sensor placed directly on the shaft.
Redundant systems to manage the most critical aspects of security such as: port opening, filter opening, temperature management.
Easy and fast maintenance thanks to the positioning and compartment of the internal components. Electrical panel isolated and separated from the heat parts.
Wavy series control: the user interface can be set according to use; unlimited possibilities for creating and customizing programs. Storing all usage data on both machine and remotely on the TheMind cloud platform
Unlimited programmable drying diagrams manually to optimize actual resource consumption
Adjustable basket speed linearly via 28 to 43 rpm inverter
Direct-drive and shock-absorbed reaction arm: eliminates regular maintenance thanks to the elimination of traditional transmission straps.


*DRYER TYPE
*Rotative*
