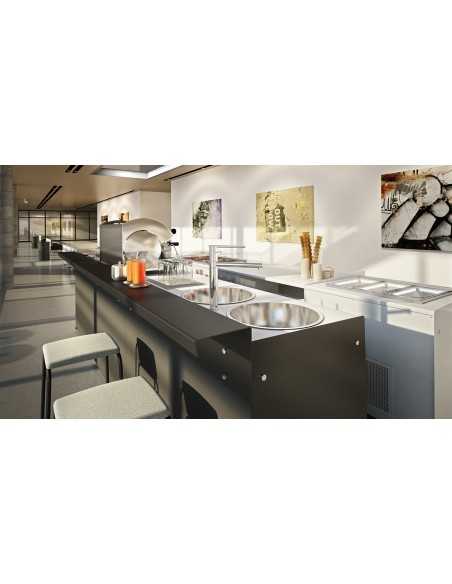

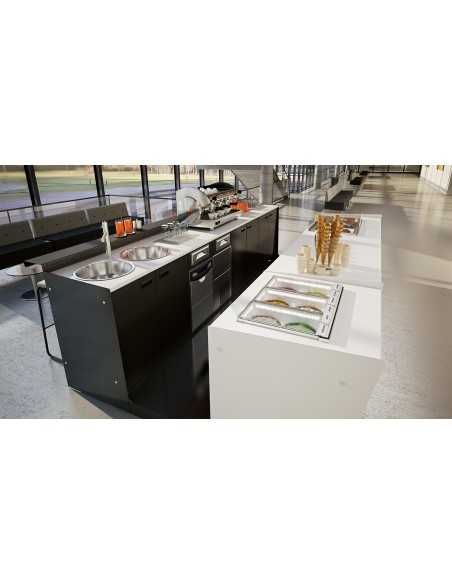

Bar and back counter with ice cream display -cm L 350 x P 232.5 x h 95.1

I-FFI-L3500-4-6C-BC-H951BC
I-FFI-L3500-4-6C-BC-H951BC
€15,878.24 €17,258.96 -8%
€15,878.24 Senza tasse €19,371.46 Con tasse €17,258.96 Senza tasse
Tax excluded

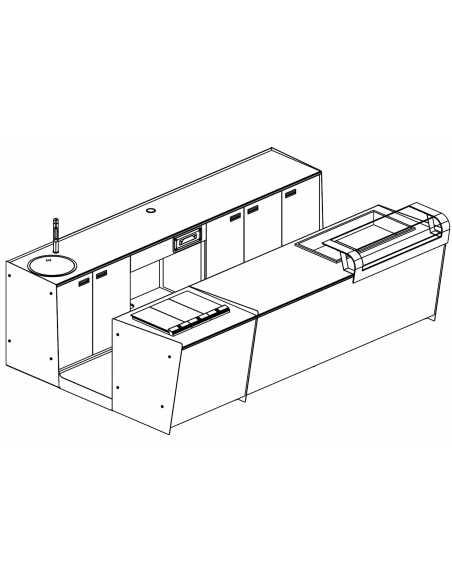

Bar counter and back counter with Panorama ice cream display - Glass countertop - N. 3 refrigerated cells - Coffee machine station - Sink ø 42 cm and mixer - 4 or 6-well ice cream display without reserve - Ventilated refrigeration - Motor on board - Power supply single-phase V230/1/50Hz - Dimensions Cm L 350 x P 232.5 x h 95.1

StartUp line color variant


STAR UP BAR COUNTER

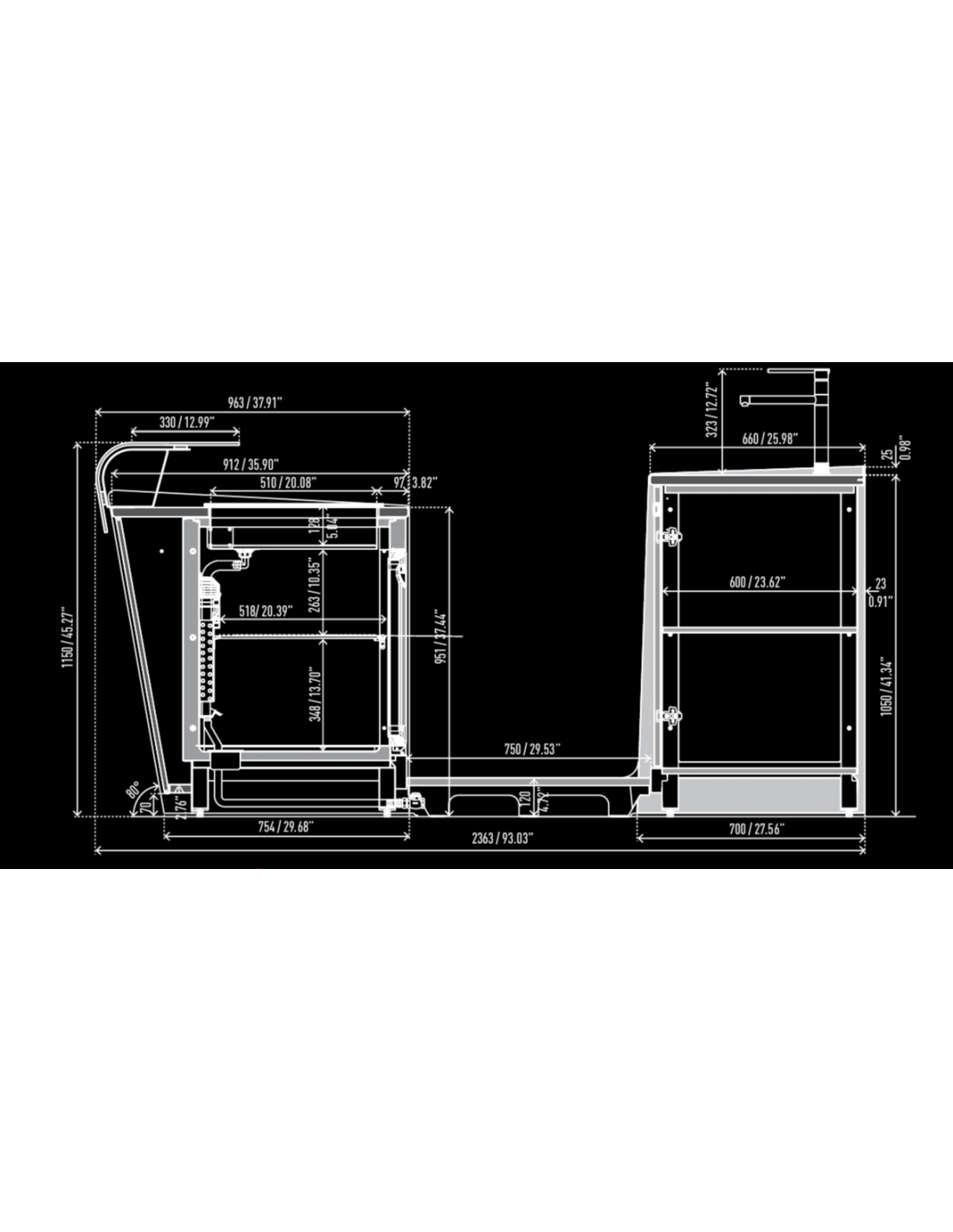

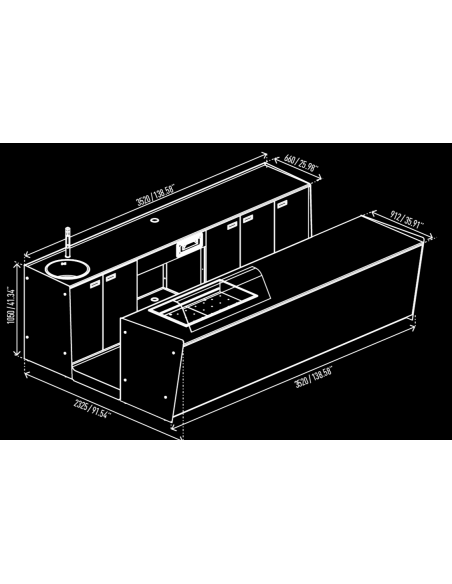

Dimensions Cm 350 x 232.5 x 95.1 h
Refrigerated Cells N. 3
Sink with Tap ø 42
Power supply Monophase - 230V-1Ph-50Hz
Origin Made in Italy
Standard CE
Warranty 12 Months
With Panorama Ice Cream Display, 4-well or 6-well without reserve
Coffee Machine Station
Transparent Glass Counter
COUNTER FEATURES (FRONT)
SUPPORTING STRUCTURE made of tubular steel painted white in an oven at 180°C with epoxy powders, guaranteeing durability, with stiffening elements and adjustable feet for perfect levelling of the furniture.
CELL with ventilated refrigeration, to ensure higher performance and temperature uniformity inside the refrigerated compartment. External cell cladding, including doors and drawers (optional), in white prepainted sheet metal. Temperature operating +4°C/ +8°C. Test at 32°C with 60% U.R.
MOTOR on board placed in the special technical compartment protected by ventilation grill in white prepainted sheet metal. L'Refrigeration system consists of hermetic compressor, air-cooled condenser with copper tube and aluminum fins with fan, capillary-fed evaporator with copper tube and aluminum fins. Ventilated refrigeration with uniform air distribution through special conveyor located above the evaporator.
REFRIGERATED TANK for the display of food & beverage recessed in the cell whose refrigeration it exploits, made of stainless steel with Scotch-Brite finish, available in 1000 and 1400 mm modules. The tank is equipped with drainage for cleaning and liquid evacuation. Temperature operating +4°C/ +8°C. Test at 25°C with 60% U.R.
ELECTRONIC CONTROL PANEL with general button for managing the cell refrigeration system, and second button for managing the tank refrigeration.
WORKTOP made of water-repellent postforming with low formaldehyde emission, white color
FIANCO in metal, 3 mm thick, painted white in oven at 180°C with epoxy powders, or RAL lacquered according to sample. SIDE in plywood, 8 mm thick, available in "Aged Oak" finish. The side is fixed with n° 4 screws inserted inside stainless steel bushings, diameter 20 mm, thickness 7 mm
Transparent tempered glass, 6 mm thick, to protect the refrigerated tank.
AVAILABLE FINISHES: F1 = metal sides painted white and front panel in FULL COLOR laminate F2 = metal sides painted white and front panel in TEXTURE, LINOLEUM and FENIX white and black laminate F3 = metal sides lacquered as per sample; front panel lacquered as per sample or in FENIX gold, silver or acc. hamilton laminate F4 = metal sides lacquered in anodized color; front panel lacquered in anodized color or in 100% recycled paper

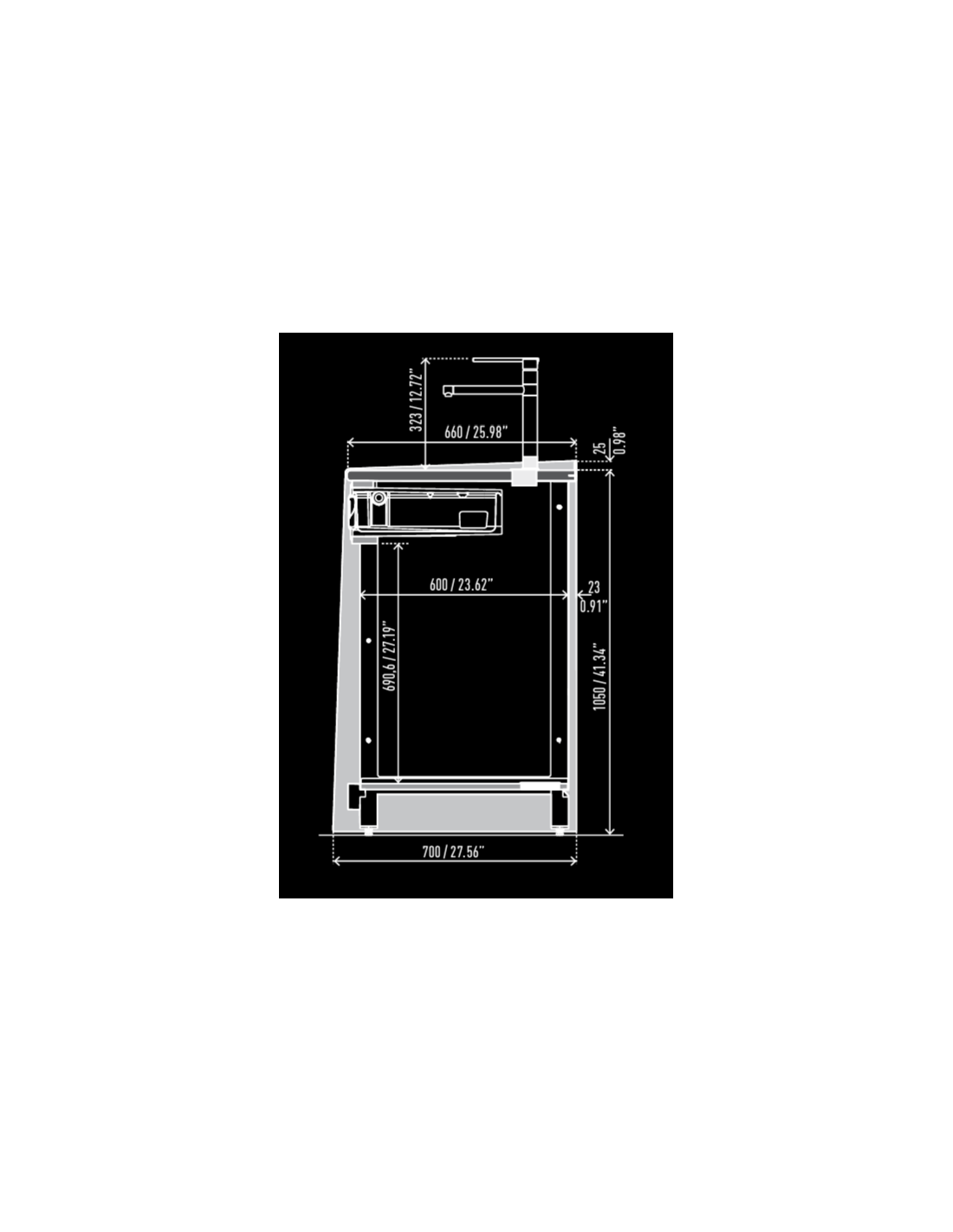

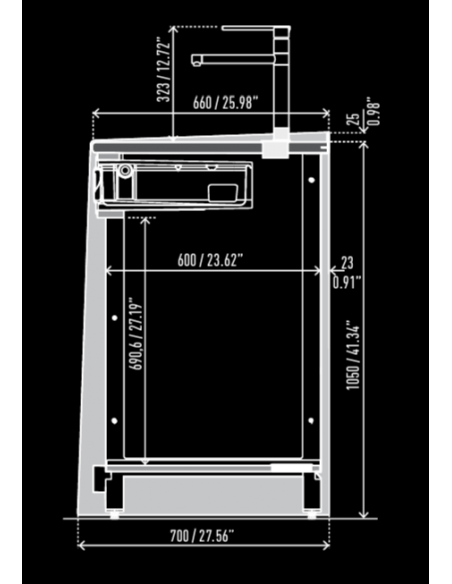

COUNTER FEATURES (BACK)
SUPPORTING STRUCTURE made of tubular steel painted black in an oven at 180°C with epoxy powders, guaranteeing durability, with stiffening elements and adjustable feet for perfect levelling of the furniture.
BACKS in white prepainted sheet metal
DOORS in black-colored melamine with low formaldehyde emission.
WORKTOP in water-repellent postforming with low formaldehyde emission.
HOLE for COFFEE MACHINE with stainless steel protective collar.

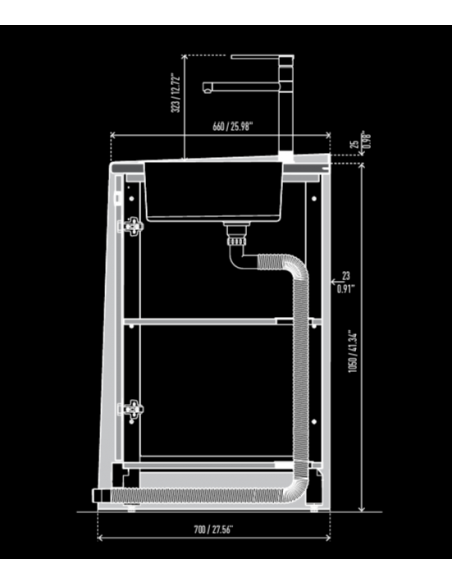

SINK in polished stainless steel 420 mm diameter.
MIXER with water-saving double-flow lever
PROFILE in extruded aluminum painted black in an oven at 180°C with epoxy powders
COMPARTMENT A DAY L 1000 - H 690 - P 600 mm for insertion of cup washer with aluminum bottom protection tank.
FILTER TRAY in polished stainless steel finish.
Metal SIDE, 3 mm thick, painted black in oven at 180°C with epoxy powders, fixed with n° 4 screws inserted inside stainless steel bushings diameter 20 mm, thickness 7 mm.
PEDESTAL with water-repellent backing and black plastic covering.
Metal end FIANCHES, 3 mm thick, painted black in an oven at 180°C with epoxy powders.

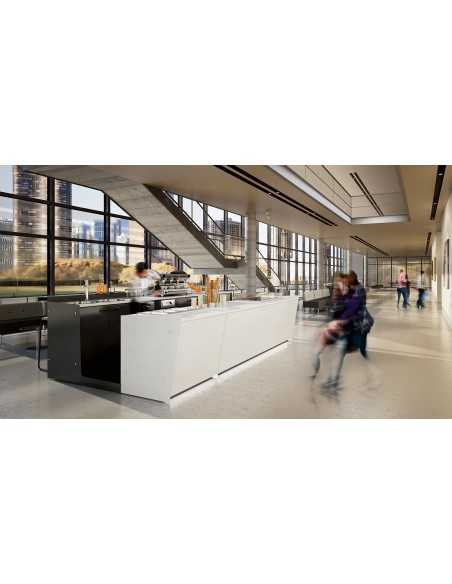

Start up is a new way of understanding bar service. An essential unit, which integrates all the essential elements for the operation of a room. Front and back make up a basic bar service that makes it possible for anyone to open their premises.
Proposed in a clean and linear black-white configuration, the service can be customized with various accessories

RETRO FEATURES

  • N. 4 doors in black melamine
  • Worktop in water-repellent postforming in white or wood color
  • Hole for coffee machine with stainless steel protection collar
  • 420 mm diameter polished stainless steel sink
  • Double flow lever mixer for water saving
  • Stainless steel beater drawer
  • Open compartment cm 100 x 60 x 69 h - For inserting the cup washe
  • Epoxy powder coated extruded aluminum profile
  • Side in 3 mm metal painted with epoxy powders
  • Water-repellent support platform and plastic coating
  • Back in pre-painted sheet metal
  • Supporting structure in painted tubular steel
  • Adjustable feet

BENCH FEATURES

  • N. 3 refrigerated cells
  • N. 1 neutral compartment
  • Cell operating temperature + 4 ° C / + ° C
  • Refrigerated tank for food and beverage display embedded in the cell
  • Tank size 100 x 51 cm
  • The tank is equipped with a drain for cleaning and evacuation of liquids
    Transparent tempered glass to protect the refrigerated tank
  • Electronic control panel with button for managing the refrigerating system of the cell and second button for managing the refrigeration of the tank
  • On-board refrigeration unit, located in the special technical compartment protected by a pre-painted sheet metal grill
  • Electronic control panel with general button and second button for cell management
  • Ventilated refrigeration to ensure greater performance and temperature uniformity
  • Postforming worktop
  • Painted 3 mm metal side

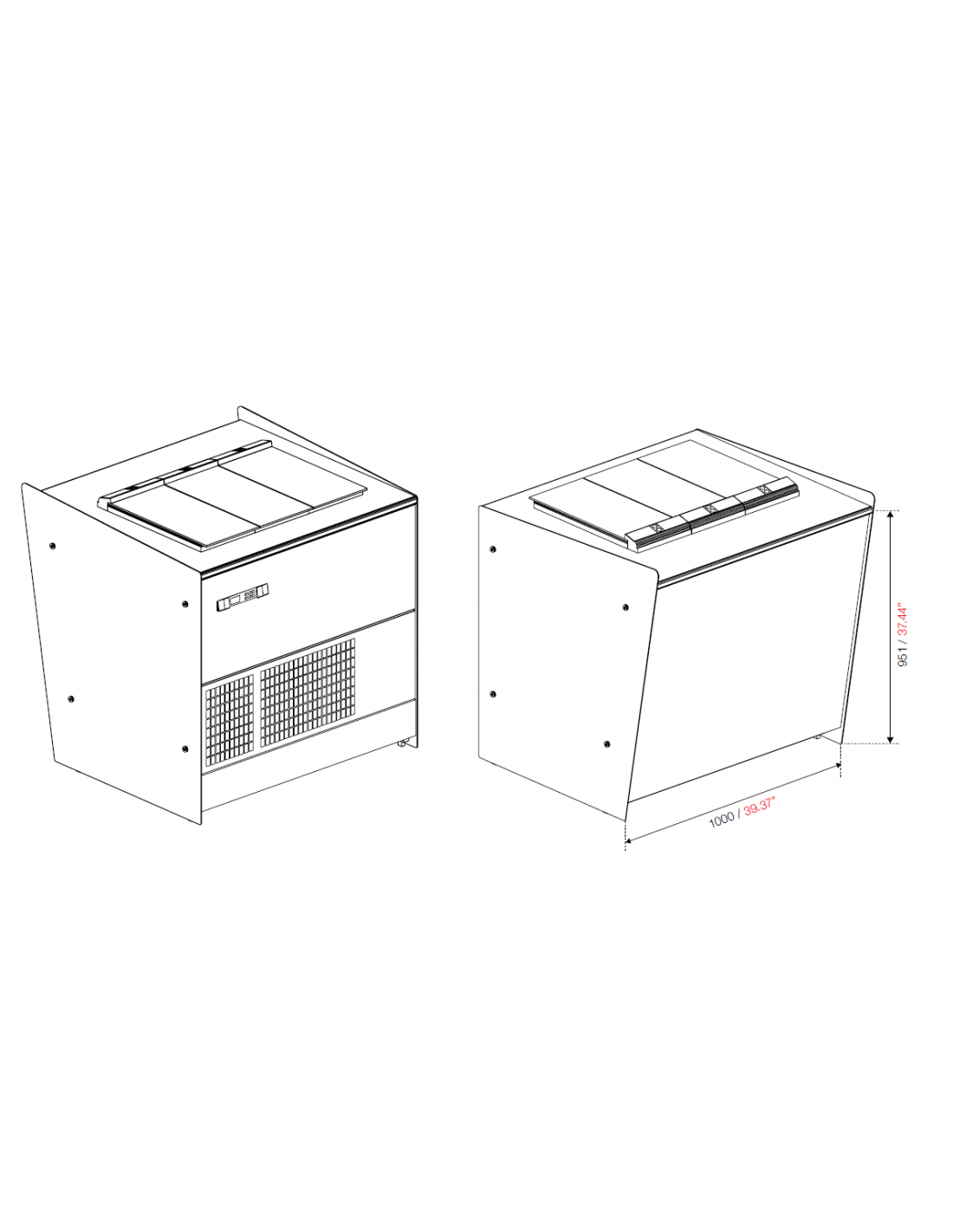

CARAPINE COCKPIT FEATURES

  • No. 4 o 6 wells without reserve
    Electronic control panel with digital display
  • Cell operating temperature -2 ° C / -15 ° C
  • Internal tank in AISI 304 stainless steel with 2 B finishes with drain
  • Plasticized wire baskets with anti-rotation system
  • The glasses of eratic closing with servo-assisted closing system
  • Carapine excluded
  • Worktop in water-repellent postforming in white or wood color

PRACTICE YOUR CREATIVITY

Making an original start up is very easy.When ordering, you can send a graphic file with the design of your choice. The two types of projects are:

1) Graphic creation of the front panel with 1, maximum 2 files and / or digital content in high resolution (photographs, images, logos, writings) and preparations of high resolution print files

2)Four-color digital printing of the graphics, to be applied on the front panel. The graphic file for printing must be provided in the following high resolution formats (from 150 to 300 DPI): PDF, TIFF, JPG, BMP. Or documents from the following applications can be supplied: ADOBE PHOTOSHOP, ADOBE ILLUSTRATOR, CORAL DRAW12 for length 200 cm - Print dimensions: length 200.1 x 86.4 h
