Veterina snack - Straight glass low - Static - With cell - cm 150 x 68.8 x 115.1 h
Veterina snack - Straight glass low - Static - With cell - cm 150 x 68.8 x 115.1 h

  • -8%
Veterina snack - Straight glass low - Static -...
Veterina snack - Straight glass low - Static -...

Veterina snack - Straight glass low - Static - With cell - cm 150 x 68.8 x 115.1 h

IF-F-EY134953
IF-F-EY134953
€5,258.32 €5,715.56 -8%
€5,258.32 Senza tasse €6,415.14 Con tasse €5,715.56 Senza tasse
Tax excluded

Veterina snack - Model MIX - Straight glass low - Static - With cell - Dimensions cm 150 x 68.8 x 115.1 h

Options

+ ACCESSORIES



Veterina snack MANUFACTURE FROM MATERIALS OF ANY HEADING

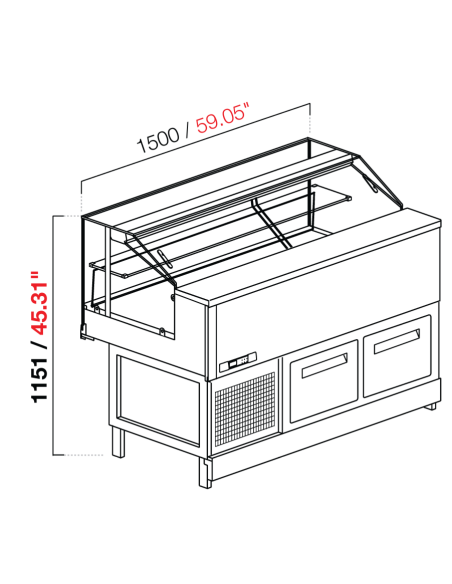

Dimensions product cm 150 x 68.8 x 115.1 h
Power absorbed W 654 - A 3.05
Surrendered 634 W/h -10°C
Refrigerant R452A
Power supply 230V-1-50Hz
Climate class 4 - 30°C - 55 %
Norma CE
Warranty 12 months
GENERAL FEATURES
Lower supporting structure in painted steel tubular with 180 oven epoxy powders°C with stiffening elements and adjustable feet
Single block shell with a minimum thickness of 50 mm foam with low density injected polyurethane (40 Kg/m3)
Stainless steel single block
AISI 304 Scotch-Brite finish: the tank is made in a single piece with smooth interior corners seamlessly between the exhibition floor, dripper and external edges, in order to avoid the annihilation of the dirt
An aluminum pipe drowned in polyurethane foam and placed in contact with the perimeter edge of the tub houses a hot cable that acts as a heat cut to avoid condensation formation on the glasses that are in direct support on the edge of the stainless steel tank
Worktop deep operator side 193 mm stainless steel AISI 304 Scotch-Brite finish
Rear wall operator side and side sides of stainless steel tank AISI 304 Scotch-Brite finish
Exhibited floor of 67 mm compared to the perimeter edge of the tub.
Front glass is tempered and openable with tipping system to the customer side. Anti-condensity front glass placed directly on the edge of the tub.
Wired side clams of transparent glass structure.
Intermediate shelves are slightly shorter than the showcase leaving a slot of 15 mm per side to facilitate cleaning operations
Rear closure with plexiglas slides with recessed transparent polycarbonate handle, guaranteeing a hygienic closure.
The special aluminium cable hose positioned to the left (operator side) of the showcase is unique for the cables of the eventual hot shelf and for the ceiling lamp
4000K led lighting ceiling under glass roof
Automatic defrosting with electrical resistance on the evaporator, condensate evaporation tank with too full level
I evaporator tubes and motor connection cables are placed in the operator side wall and under the working plane.
The capacitor is placed on the operator side and is accessible by disassembling the protection grid
Electronic control panel inserted in the rear structure operator side with customer view temperature repeater
Refrigerated tank with static evaporator. Refrigeration is produced with the same hermetic group of the double-control showcase for independent use of the showcase and cell. Cyclic thermostat inside the cell.
Complete glass top frame, glass sides, without aesthetic finishes, without front panel, without hoof, without lower sides.
*LENGTH
*150 cm*
*GLASS TYPE
*Straight ahead*
*FORMAT
*Linear*
*SHOWCASE TYPE
Refrigerated
