Veterina snack - Straight glass low - Static - cm 200 x 68.8 x 115.1 h
IF-F-EY134946P
IF-F-EY134946P
€4,201.85
€4,423.00
-5%
€4,201.85 Senza tasse
€5,126.26 Con tasse
€4,423.00 Senza tasse
Tax excluded
Veterina snack - Model MIX - Straight glass low - Static - Dimensions cm 200 x 68.8 x 115.1 h
Options
+ ACCESSORIES
Veterina snack | EY134946P |

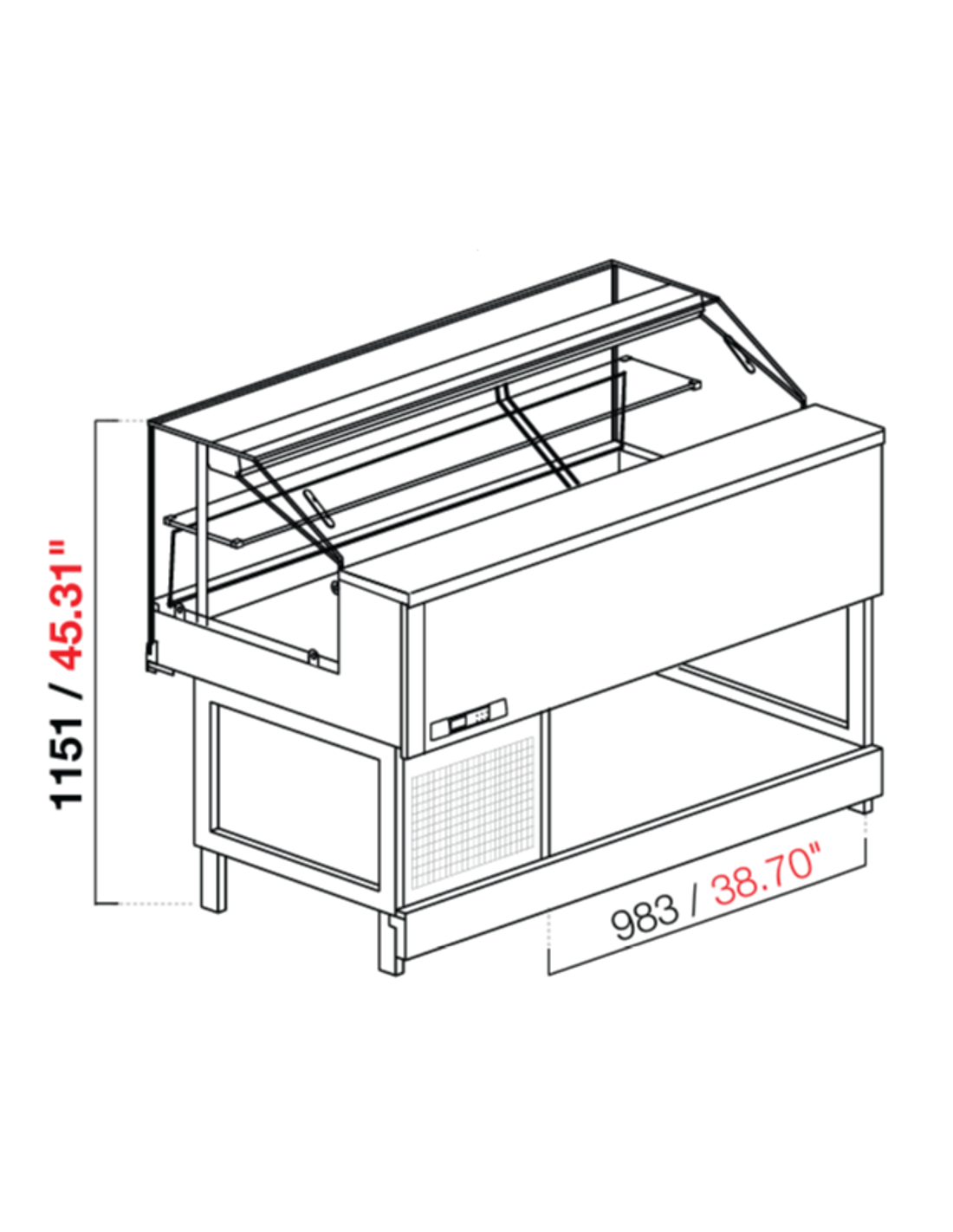

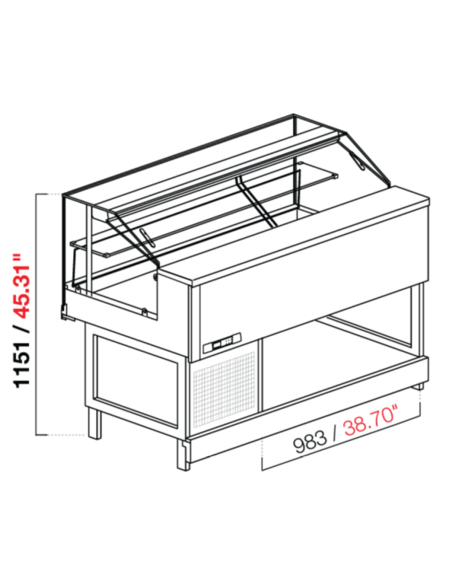

Dimensions product | cm 200 x 68.8 x 115.1 h |
Power absorbed | W 744 - A 3.23 |
Surrendered | 691 W/h -10°C |
Climate class | 4 - 30°C - 55 % |
Temperature class | H |
Refrigerant | R290 |
Power supply | 230V-1-50Hz |
Consumption | 1717 kwh/year |
Norma | CE |
Warranty | 12 months |
GENERAL FEATURES | |
---|---|
Lower supporting structure in painted steel tubular with 180 oven epoxy powders°C with stiffening elements and adjustable feet | |
Single block shell with a minimum thickness of 50 mm foam with low density injected polyurethane (40 Kg/m3) | |
Stainless steel single block | |
AISI 304 Scotch-Brite finish: the tank is made in a single piece with smooth interior corners seamlessly between the exhibition floor, dripper and external edges, in order to avoid the annihilation of the dirt | |
An aluminum pipe drowned in polyurethane foam and placed in contact with the perimeter edge of the tub houses a hot cable that acts as a heat cut to avoid condensation formation on the glasses that are in direct support on the edge of the stainless steel tank | |
Worktop deep operator side 193 mm stainless steel AISI 304 Scotch-Brite finish | |
Rear wall operator side and side sides of stainless steel tank AISI 304 Scotch-Brite finish | |
Exhibited floor of 67 mm compared to the perimeter edge of the tub. | |
Front glass is tempered and openable with tipping system to the customer side. Anti-condensity front glass placed directly on the edge of the tub. | |
Wired side clams of transparent glass structure. | |
Intermediate shelves are slightly shorter than the showcase leaving a slot of 15 mm per side to facilitate cleaning operations | |
Rear closure with plexiglas slides with recessed transparent polycarbonate handle, guaranteeing a hygienic closure. | |
The special aluminium cable hose positioned to the left (operator side) of the showcase is unique for the cables of the eventual hot shelf and for the ceiling lamp | |
4000K led lighting ceiling under glass roof | |
Automatic defrosting with electrical resistance on the evaporator, condensate evaporation tank with too full level | |
I evaporator tubes and motor connection cables are placed in the operator side wall and under the working plane. | |
The capacitor is placed on the operator side and is accessible by disassembling the protection grid | |
Electronic control panel inserted in the rear structure operator side with customer view temperature repeater | |
Complete glass top frame, glass sides, without aesthetic finishes, without front panel, without hoof, without lower sides. |
- *LENGTH
- *200 cm*
- *GLASS TYPE
- *Straight ahead*
- *FORMAT
- *Linear*
- *SHOWCASE TYPE
- Refrigerated
