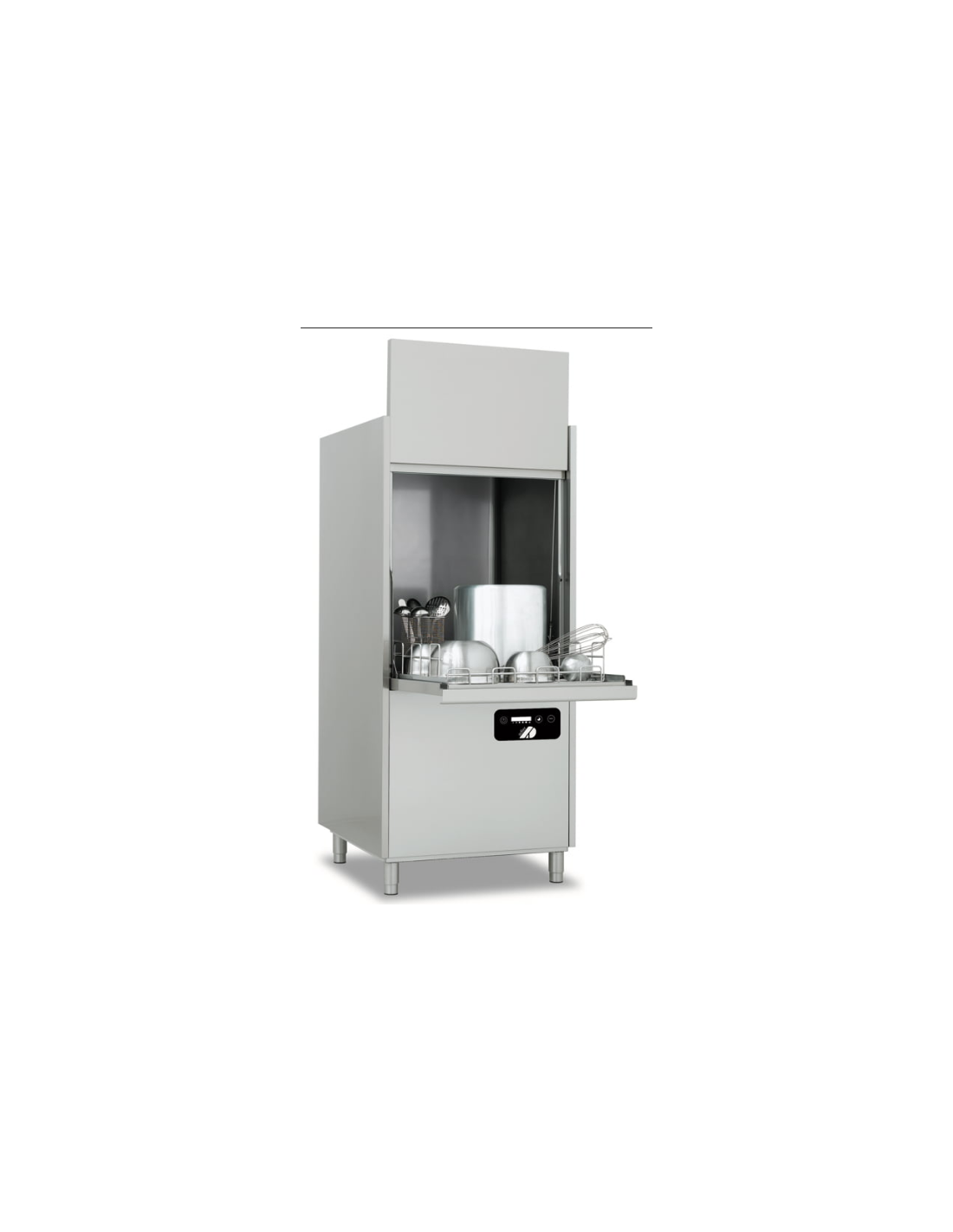

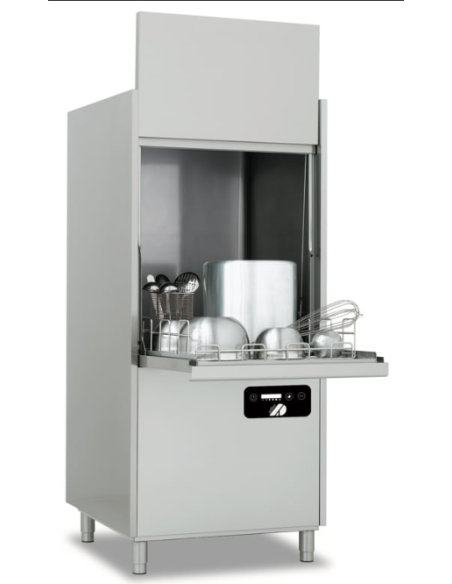

Canopy tool washer - Basket from cm 70 x 70 - Cm 85 x 85 x 196 h
ADE-AP4
ADE-AP4
€7,551.36
€8,208.00
-8%
€7,551.36 Senza tasse
€9,212.66 Con tasse
€8,208.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Capote tool washer with square basket cm 70 x 70 - Model AP4 - Digital Controls - Power supply Three-phase - Cm 85 x 85 x 196 h - Various use programs - Dimensions washing chamber cm 70 x 70 x 85 h
Options
+ ACCESSORIES
Tool washer | Model AP4 |

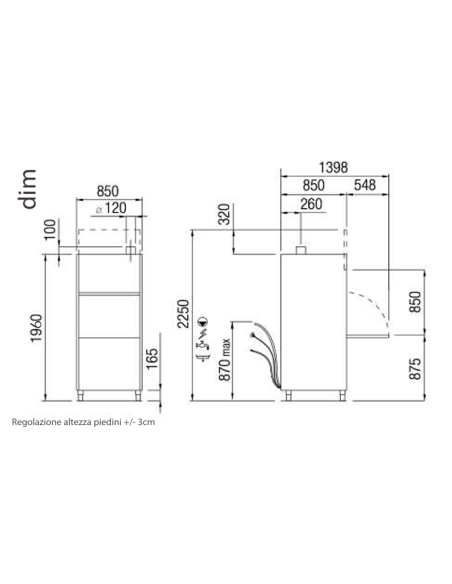

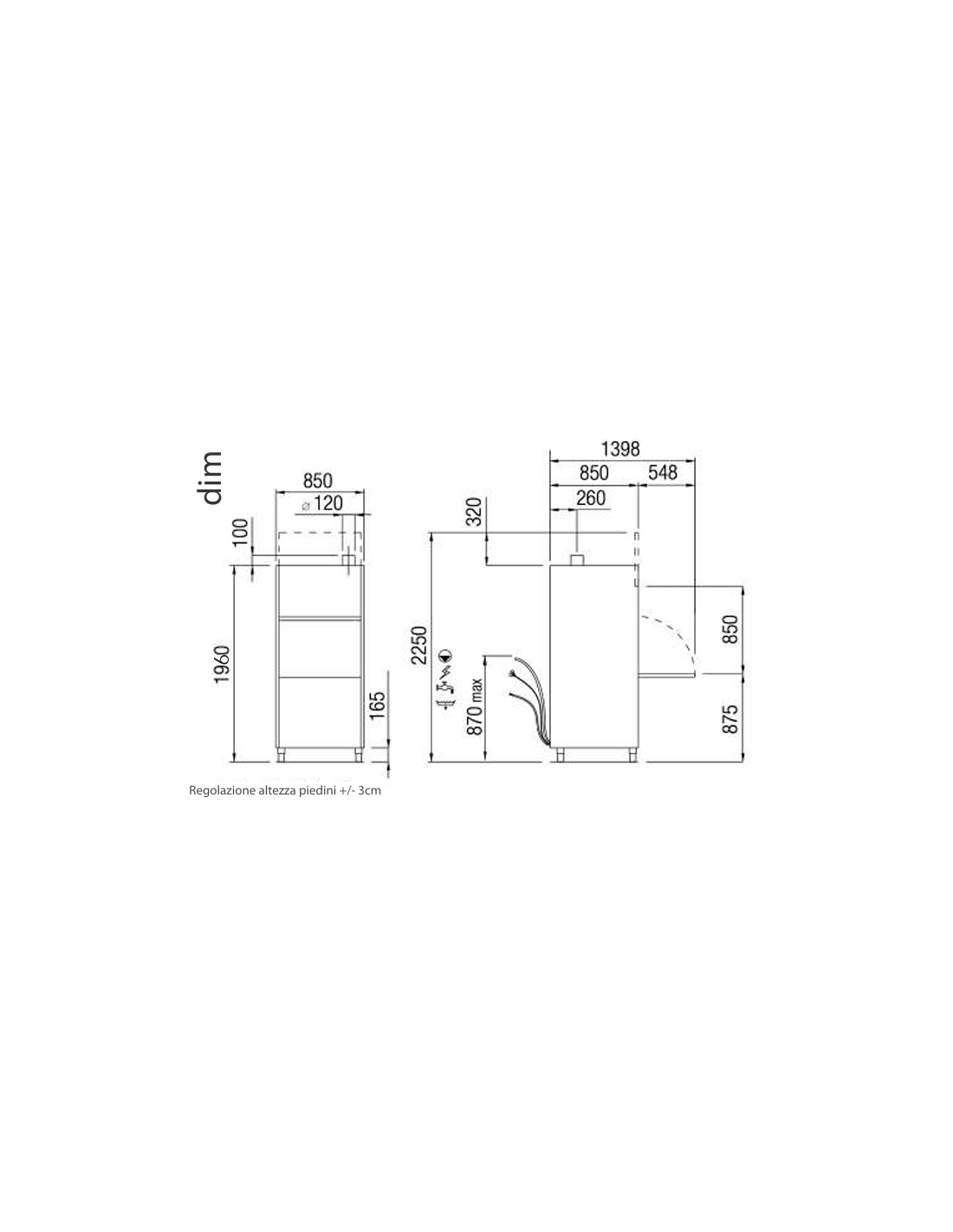

Dimensions | Cm 85 x 85 x 196 h |
Dimensions washing chamber | Cm 70 x 70 x 85 h |
Control panel | Digital |
Power supply Three-phase | 400V-3-50-60Hz |
Energy consumption Three-phase | 18.7 Kw |
Max Absorption | Amp 32 |
Warranty | 12 months |
Standard | CE |
Origin | Italy |
TECHNICAL DATA | |
---|---|
Inox basket | outside cm 70 x 70 - inside cm 67 x 67 |
Inlet water pressure | 1 - 6 bar |
Basket production-h | 30 |
Temperature inlet water | 15-60°C |
Power discharge pump | 40 W |
Boiler heater | 8 Kw |
Capacity Boiler | 12 L |
Capacity tank | 68 L |
Resistance Tank | 8 Kw |
Power rinse pump | 200 W |
Power wash pump | 2700 W |
Detergent or rinse aid dispenser kit | Supplied |
GENERAL FEATURES | |
---|---|
LED backlit button interface | |
Large multifunction display | |
Double-wall constructed structure with insulated and counterbalanced door. | |
Tub molded and equipped with stainless steel surface filters that reduce the accumulation of dirt and obstruction inside the hydraulic part | |
Basket guides are molded with rounded corners | |
The wash chamber is free of internal piping and areas where dirt can accumulate | |
L'control interface consists of a 4-character LED display and two vertical indicators combined with four soft touch buttons. | |
The combination of colors, symbols, and text provides a simple and clear readout of the progress status of the wash cycle. | |
The display also provides information on wash and rinse temperature, remaining time, and machine self-diagnostics. | |
Temperature and chemical adjustment is made through the interface to optimize and achieve the best results according to the characteristics of the installation area. | |
Tool washer with stainless steel structure | |
Tool washer with included basket of: ext. dim. cm 56 x 63 - int. dim. cm 54 x 60.5 | |
It is easy to use and very reliable over time thanks to the large backlit LED digital buttons, multifunction display and electronic control. | |
Utensil washer also suitable for pots and pans - and any kind of utensil that fits in it | |
Also features dfilter technology with dual filtration that ensures high-quality water filtration to preserve all components and ensure excellent washing results | |
All components are easy to remove, for daily cleaning operation, and placed at the front of the machine, for service maintenance | |
I various optional extras as accessories make this machine a perfect companion for any type of installation and use. |
- *BASKET
- *Square basket*
- *BASKET DIMENSIONS
- *Cm 50 x 62*
- *DRAIN PUMP
- *With drain pump*
- *COMMANDS
- *Electronic controls*
