I-TX-ITWIN110
I-TX-ITWIN110
Product to quote
€0.00
€0.00 Senza tasse €0.00 Con tasse
Tax excluded

Diving arms kneader - Model ITWIN110 - Mixing capacity (min/max) kg 8/110 - flour capacity (min/max) kg 5/70 - Water capacity (min/max) lt 3/40 - Bath volume lt 150 - Size cm 86.85 x 124.8 x 167.9 (201.1h)

Model


PRODUCT INFORMATION

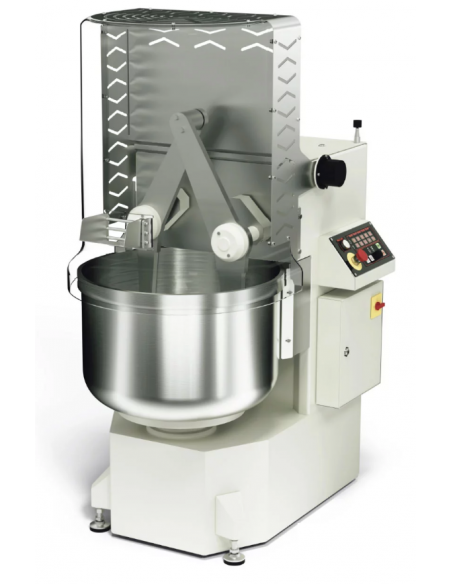

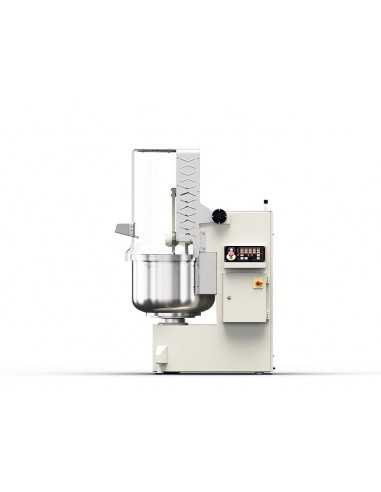

Diving arms kneader ITWIN110

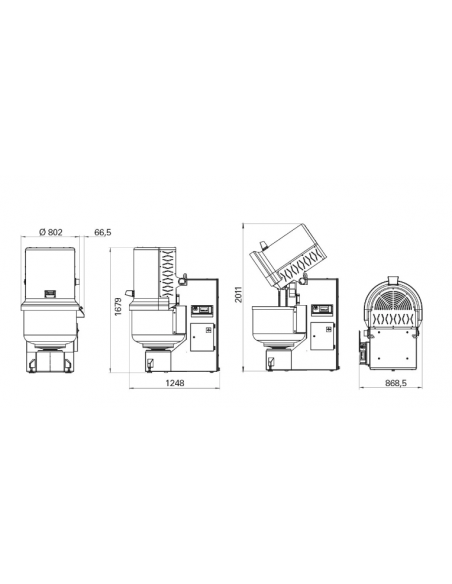

Dimensions cm 86.85 x 124.8 x 167.9 (201.1h)
Net weight Kg 670
Warranty 12 months
Norma CE
TECHNICAL DATA
Capacity of dough (min/max) kg 8/110
Flour capacity (min/max) kg 5/70
Water capacity (min/max) lt 3/40
Tank volume lt 150
Water / flour (min) 60 %
Speed of arms Inverter INV/TOUCH bpm from 25 to 75
Tank speed Inverter INV/ TOUCH rpm from 5 to 15
Size cm 68 x 45.5
Power engine INV /TOUCH Kw 4
Power supply INV - TOUCH V 400/3/50-60 or V 230/3/50-60
GENERAL FEATURES
Electric motor brake
Ability of dough calculated with 60% hydration. The maximum capacity can vary according to the ingredients.
Painted steel frame with certified non-toxic paints for food use
Built in stainless steel of considerable thickness with reinforcement at the base

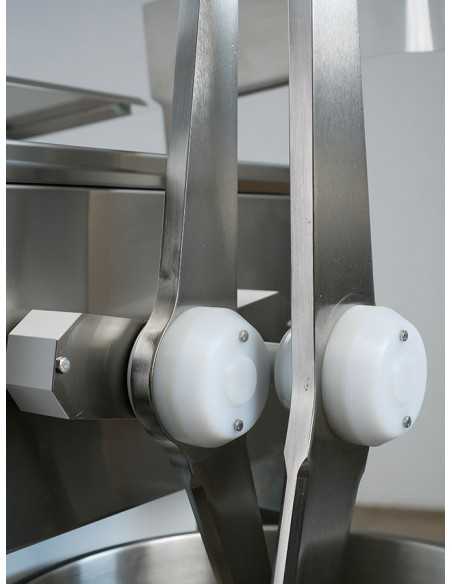

The arms are made of stainless steel of considerable thickness and mounted on self-lubricated ball bearings. The left arm is equipped with a “loop back” to take the dough, while the right arm is designed to spread the dough
Gears made of spheroid cast iron melt immersed in oil bath to ensure quietness and durability
Rotating hydraulic decelerator that increases the degree of safety of our machines when the tank protection is lifted or lowered
Motor available in three-phase version 2 speeds and in three-phase/monofase version with variable speed (INVERTER)
All machines are supplied standard with connection in 400 Volt 50/60 Hz 3 stages. On request, you can do with different tensions
Motion transmission with pulleys and trapezoidal straps to ensure maximum silence and reliability. The tank is connected to a gear motor
Anti-shock plexiglass refill. Respect all hygiene and health regulations

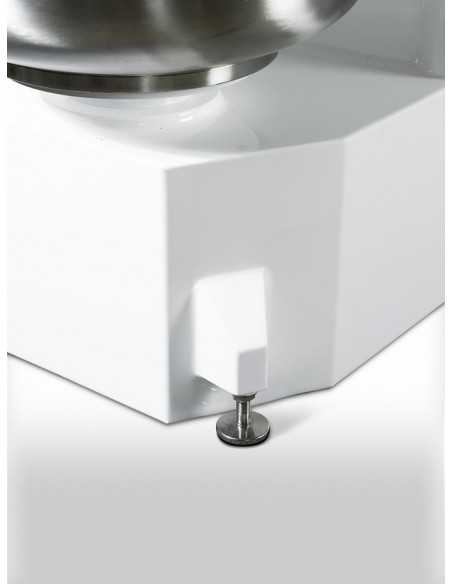

Equipped with wheels for handling and two feet stabilizers, to maintain a hygienic level in your laboratory. Adjustable front foot support
Fast hook/unlock system half locks reducing cleaning and maintenance times
TYPE OF PANEL

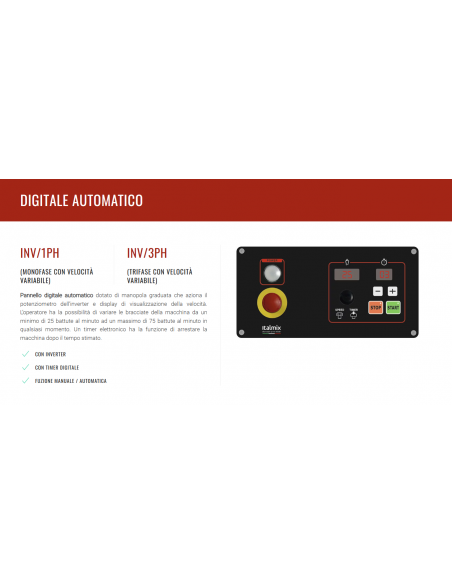

AUTOMATIC DIGITAL INV/1PH (Monophase with variable speed) or INV/3PH (Triphase with variable speed)

With inverter (display speed) - With digital timer - MANUAL function / AUTOMATICAC Automatic digital panel with graduated knob that drives the inverter potentiometer and display speed. The operator has the possibility to change the machine's bracelets from a minimum of 25 jokes per minute to a maximum of 75 jokes per minute at any time. An electronic timer has the function of stopping the machine after the estimated time.

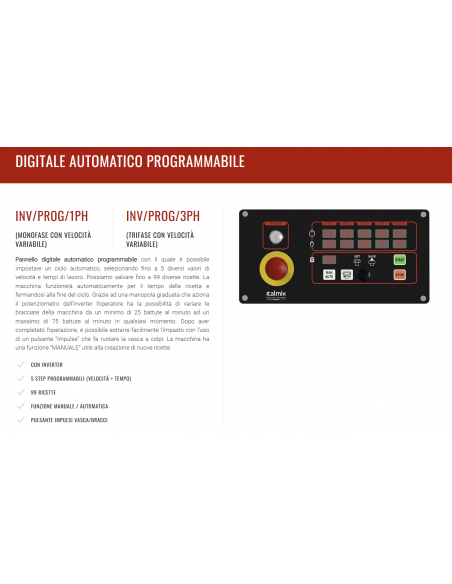

V/PROG/1PH (Monophase with variable speed) or INV/PROG/3PH (Triphase with variable speed)

With inverter - 5 programmable steps (speed + time) - 99 recipes - MANUAL function / AUTOMATIC - Bath/brace pulse button Programmable digital panel with which you can set an automatic cycle, selecting up to 5 different speed values and working times. We can save up to 99 different recipes. The machine will automatically work for the time of the recipe and stopping at the end of the cycle. Thanks to a graduated knob that drives the inverter potentiometer, the operator has the possibility to change the machine's arms from a minimum of 25 jokes per minute to a maximum of 75 jokes per minute at any time. After completing the operation, you can easily extract the dough with the use of a “impulse” button that rotates the tank to hits. The machine has a “MANUAL” function useful for creating new recipes.

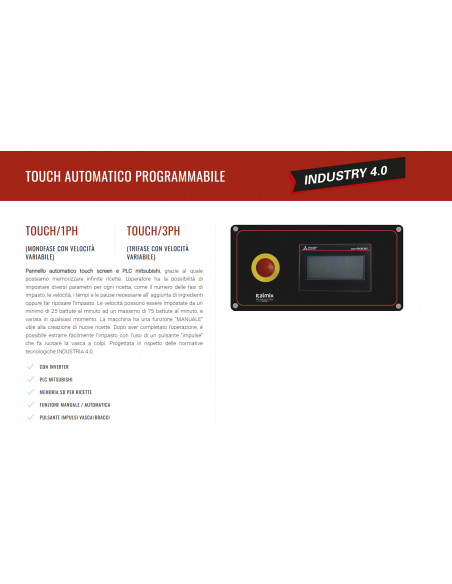

TOUCH AUTOMATIC PROGRAMME TOUCH/1PH (Monophase with variable speed) or TOUCH/3PH (Triphase with variable speed)

With inverter - Plc mitsubishi - SD memory for recipes - MANUAL / AUTOMATIC function - Bath/brace pulse button Automatic touch screen and PLC mitsubishi, thanks to which we can store endless recipes. The operator has the possibility to set different parameters for each recipe, such as the number of phases of dough, the speeds, times and breaks necessary for the addition of ingredients or to make the dough rest. Speeds can be set by a minimum of 25 jokes per minute to a maximum of 75 jokes per minute, and varied at any time. The machine has a “MANUAL” function useful for creating new recipes. After completing the operation, you can easily extract the dough with the use of a “impulse” button that rotates the tank to hits. Designed in compliance with INDUSTRY 4.0 technological regulations.

*MODEL
*1 Velocità
*CAPACITY KG
*Kg 100*
