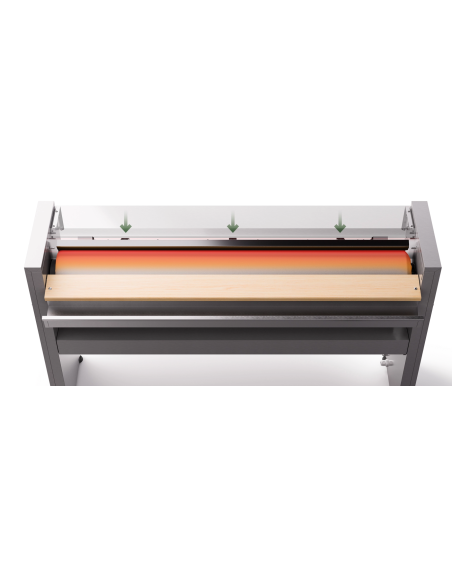

Roller Grinder - Length cm 140 - Ø cm 18 - cm 161 x 39.5 x 107 h
G-PT-GI1418EVT
G-PT-GI1418EVT
€2,996.26
€3,256.80
-8%
€2,996.26 Senza tasse
€3,655.43 Con tasse
€3,256.80 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Roller Grinder - Model GI1418 - Automatic conca movement - Productivity kg 34 - Speed change - Length cm 140 - Diameter cm 18 - Power kW 5.58 - Triphase - Dimensions cm 161 x 39.5 x 107 h
Stress | Fox |
Product size | C 161 x 39.5 x 107 h |
Packaging dimensions | C 172 x 53 x 131 h |
Net weight / Lord | Kg 123/142 |
Warranty | 12 months |
Norma | CE |
Origin | Italy |
TECHNICAL DATA | |
---|---|
Diameter of roller | 180 mm |
Length of roll | mm 1400 |
Productivity kg/h with UR% 10÷15% | 34 |
Speed | mt/min Variable xx/2.5 |
External coating | Cotton cloth |
Contact surface | 0.252 m2 |
Conca Movement | Automatic |
Push adjustment | Standard |
ELECTRICAL DATA | |
---|---|
Power supply | Triphase V380-415/3/50H |
Power thermal thermal thermal thermal | kW 5.4 |
Power engine roller | kW 0.03 |
Power motor conca | Kw 0.05 |
Power total | Kw 5.58 |
Rumours | 60 dB |
GENERAL FEATURES | |
---|---|
Self-supporting structure made of grey plastic plate with small side shoulders for the advantage of the roller width useful for ironing operations | |
Automatic conca movement through new patented system free from maintenance and self-regulating | |
Push elements positioned behind the conca for uniformity of ironing quality throughout the roller | |
Aluminum conca treated with deep anodising guarantee of long life and energy saving | |
Heating elements positioned inside the aluminium rod for excellent heat transmission | |
Thermal insulation with thick ceramic wool | |
Roller supported by bearings and padded with triple layer of steel wool, cotton spring and outer cotton cloth | |
Single-front use with possibility of pulling the wall-mounted ironing machine | |
Wooden axis to facilitate the introduction of the linen with adjustable angle so as to adapt to the height of the operator | |
Wide upper part of the roller available to the operator to achieve a particularly useful introduction band effect in the case of large garments | |
Hand-saving device for operator protection in case of wrong maneuvers with forced air cooling system | |
Fox electronic control with temperature adjustment with electronic thermostat, roller rotation speed variator, aluminum conca push selection towards roller | |
Control panel placed in such a way that you can easily manage the parameters with one finger and without moving from the workplace | |
Safety thermostat to prevent undesirable overheaving of manual rearmament | |
Escalator for the control of the movement of the conca (open/close) where more frequent garments of the standard are to be introduced | |
Automatic device for removing the conca from the roller in case of lack of electricity that secures the machine and immediately allows to remove the head that was ironing |
