IF-F-EY132675P-134187P
IF-F-EY132675P-134187P
€18,206.51 €19,789.69 -8%
€18,206.51 Senza tasse €22,211.95 Con tasse €19,789.69 Senza tasse
Tax excluded

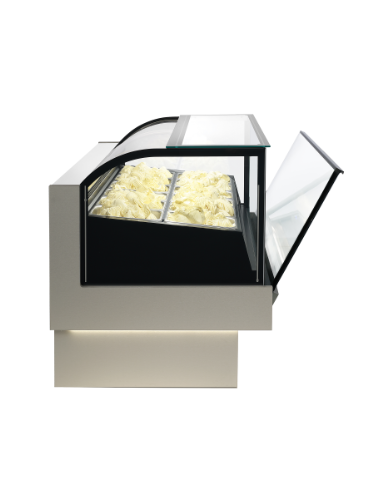

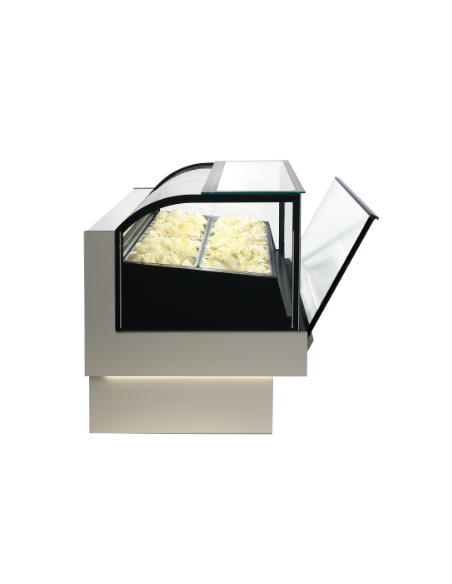

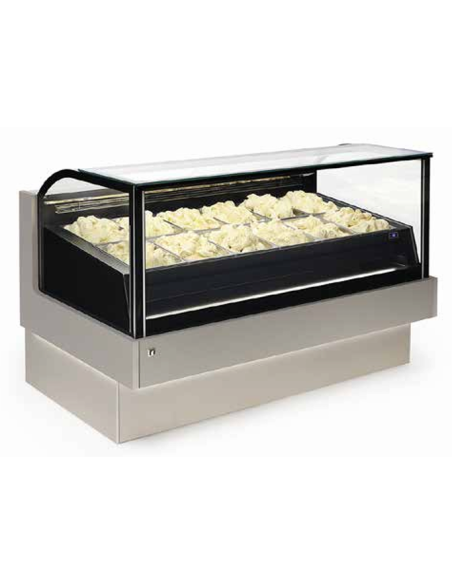

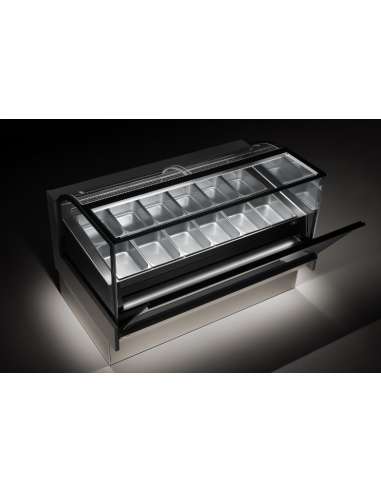

Ice cream display case - Model MILA - Ventilated - Temperature -2 -18°C +4+8°C - Dimensions cm 212.5 x 105.5 x 115.1 h

Color option

Options

+ ACCESSORIES


Ice cream display case MILA

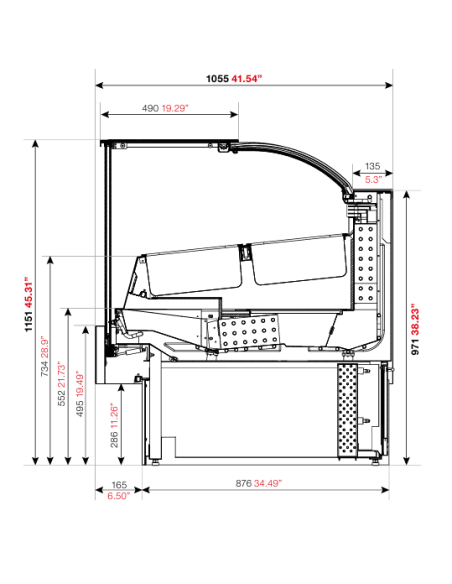

Dimensions product cm 212.5 x 105.5 x 115.1 h
Capacity N.24 tubs
Yield 1559+1559 W/ h -30°C
Refrigeration Ventilated
Power absorbed W 2423
Power supply 230V-1-50Hz
Refrigerant R290
Standard CE
Warranty 12 months
GENERAL FEATURES
Tubular steel lower load-bearing structure painted with epoxy powders by oven baking at 180°C with stiffening elements and adjustable feet.
One-piece shell with minimum thickness of 50 mm foamed with low-density injected polyurethane (40 Kg/mc).
Operator-side work surface foamed with low-density injected polyurethane (40 Kg/mc) and covered with stainless steel AISI 304 polished BA finish.
Tray holder structure with integrated taste holder made of polyester powder coated stainless steel in black RAL 9005 or white RAL 9010, illuminated from underneath by a 4000°K LED strip to create the suspended effect.

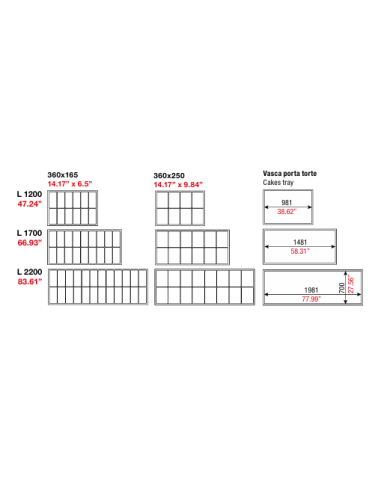

The structure accommodates trays in a double row of 360x165 mm or 360x250 mm that rest on rear and front longitudinal casings and a central support tube, with spacers that secure the trays.

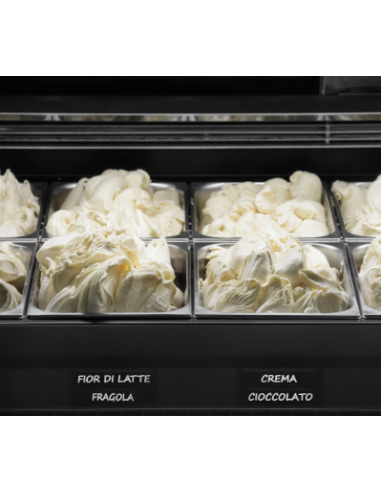

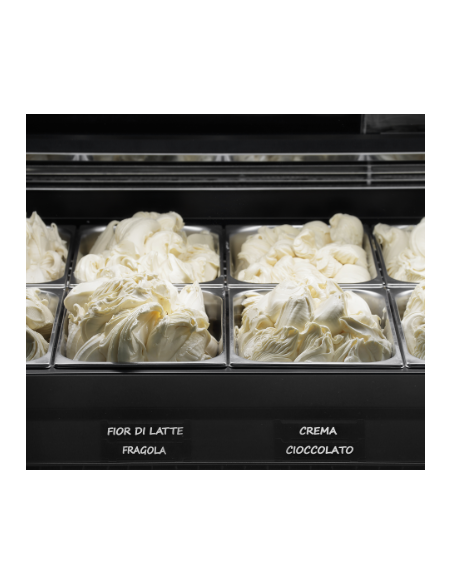

N° 36 taste mark labels made of black back-painted Plexiglas.

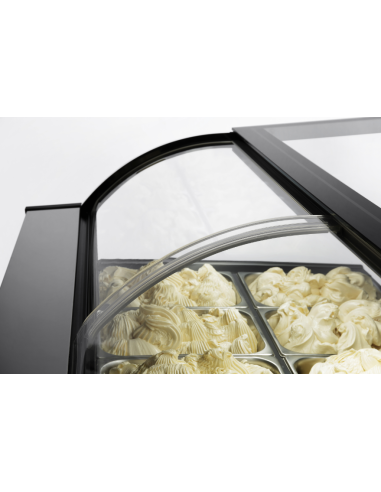

Chamber front glass, pyrolytic, heated and tempered, 22 mm thick, with handle integrated in the upper profile and assisted opening from top to bottom by gas pistons.

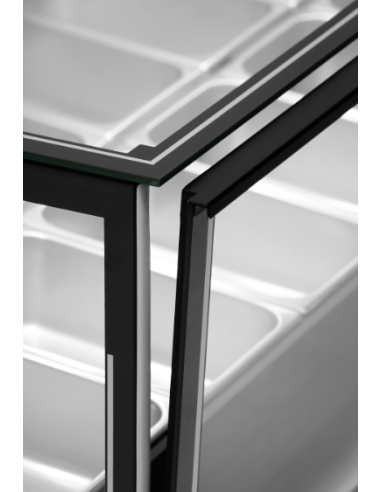

Chamber side glass, pyrolytic, heated and tempered, 19 mm thick.
Fixed single-glazed, pyrolytic, heated and tempered roof 490 mm deep with ceiling light of LED Lighting 4000°K.
Since defrosting only starts when the display case is in use (open) and not when it is closed, ice cream can be stored inside the display case at the end of the day without the need to store it in cabinets or low-temperature refrigerated cells (safety defrost set after 24 hours).
Operator-side closing system with curved methacrylate sliding doors, 8 mm thick, with milled handles.
Thanks to sensors that detect when the display case is closed and the RDF (Reduced Defrosting Frequency) system, defrosting occurs only when necessary, creating the conditions for perfect product preservation (less stress on ice cream) and relative energy savings.
L'ventilated refrigeration system with double evaporator and overhead flow ensures temperature homogeneity in the tank.
The display case is equipped with two evaporators to ensure longer continuous working hours. Rapid defrosting (automatic hot gas with on-board condensing unit, reverse cycle with remote condensing unit) is differentiated between front and rear evaporator: 4-hour cycle for front evaporator and 12-hour cycle for rear evaporator. The end of defrosting is controlled by a dedicated probe located on the evaporator.
L'Condensing unit on board the display case is placed on a metal base that slides on rails for easy extraction and is protected by a metal grille.
Condenser protection filter and tool-free removable faceplate for quick easy access to filter cleaning.

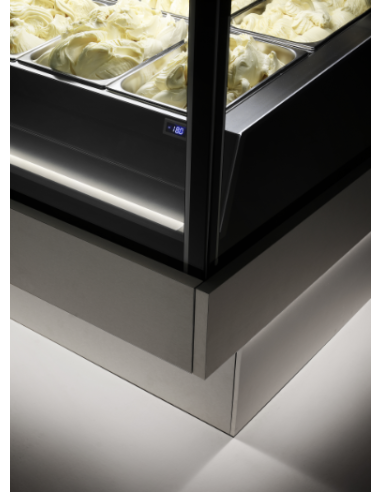

Electronic control panel with digital temperature repeater at customer view.
Tubs excluded
Optional condensate evaporator tank and PTC electric heater (sensor that senses the water temperature and optimizes power consumption by only switching on when needed).
The Ice Cream Display Case/Pastry Shop has a switch button on the control panel that allows you to switch from the ice cream function (-2°C;-18°C) to the pastry function (+4°C;+8°C) and vice versa. Optional stainless steel display shelf to replace the ice cream trays, which is necessary when the display case functions as a pastry shop.
*COLD LINE REFRIGERATION
* Ventilated *
*LENGTH
* from 101 to 200 cm *
*ICE CREAM CAPACITY
*n. 24 vaschette*
