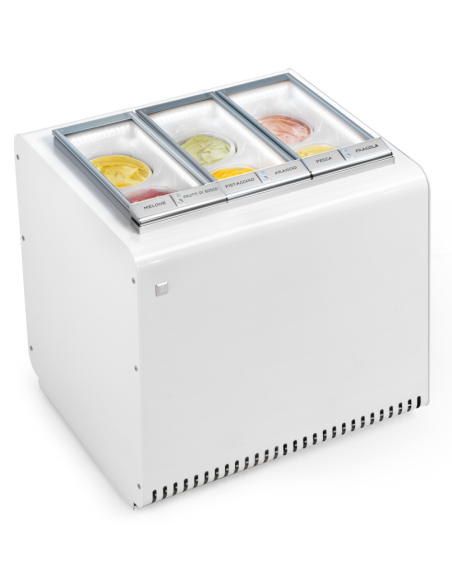

Vetrina gelateria - N. 6 carapines - Dimensions cm 86.5 x 77.9 x 92.1 h
Vetrina gelateria - N. 6 carapines - Dimensions cm 86.5 x 77.9 x 92.1 h

  • -8%
Vetrina gelateria - N. 6 carapines - Dimensions...
Vetrina gelateria - N. 6 carapines - Dimensions...

Vetrina gelateria - N. 6 carapines - Dimensions cm 86.5 x 77.9 x 92.1 h

IF-F-EY131617
IF-F-EY131617
€5,242.06 €5,697.89 -8%
€5,242.06 Senza tasse €6,395.31 Con tasse €5,697.89 Senza tasse
Tax excluded

Vetrina gelateria - Model BIT-PANORAMA TUBS - N.6 carapines - Dimensions cm 86.5 x 77.9 x 92.1 h

Options

+ ACCESSORIES


Ice cream BIT-PANORAMA TUBS
Dimensions product cm 86.5 x 77.9 x 92.1 h
Capacity N.6 carapines
Surrendered 522 W/h -30°C
Climate class 7 - 35°C - 75%
Power absorbed W 532
Power supply 230V-1-50Hz
Refrigerant R452A
Norma CE
Warranty 12 months
GENERAL FEATURES
Bearing structure made with tubular and galvanized sheet, outer coating in laminated
Foam structure with density polyurethane 40 Kg/mc with thickness of 60mm complete with coiled copper tube and expansion valve.
Exterior in galvanized sheet, stainless steel inner tank AISI 304 2B finish with exhaust fleece equipped with closure cap
Cover for the front, back and top made with a single sheet of galvanized sheet and painted with white epoxy powders RAL9010.
White RAL9010, thickness 3mm.
Removable rear aeration grill to access the engine compartment.
4 pivoting wheels for bench handling
Plastified wire baskets to contain carapines, with integrated anti-rotation system and injection molded Tritan upper tray: tray and baskets are extractable to allow cleaning of the tub
Perimeter frame equipped with LED lighting including food PVC seal for the airtight closure of the upper glass, the seal is replaceable
Ermetic closure servoassistita glass room, tempered and heated
Door tastes integrated in the customer side glass opening profile
Bath with inner stirrer of air to uniform the temperature and allow the perfect preservation of ice cream.
Manual debriation with plant shutdown: to collect dissolved condensation water in the debrisation it is necessary to extract the exhaust pipe on the operator side and remove the cap, place a container for collecting water at the pipe, remove the bottom cap in the tank
Electronic control panel
*COLD LINE REFRIGERATION
* Ventilated *
*LENGTH
*80 cm*
*ICE CREAM CAPACITY
* N ° 6 wells *
