Recessed well - A glycol - N. 10 wells - With reserve - cm 200 x 68.8 x 95.1 h
Recessed well - A glycol - N. 10 wells - With reserve - cm 200 x 68.8 x 95.1 h

  • -8%
Recessed well - A glycol - N. 10 wells - With...
Recessed well - A glycol - N. 10 wells - With...

Recessed well - A glycol - N. 10 wells - With reserve - cm 200 x 68.8 x 95.1 h

IF-F-EY105909
IF-F-EY105909
€8,511.55 €9,251.69 -8%
€8,511.55 Senza tasse €10,384.10 Con tasse €9,251.69 Senza tasse
Tax excluded

Recessed well - Stainless steel - A glycol - N. 10 wells - With reserve - Dimensions cm 200 x 68.8 x 95.1 h

Options

+ ACCESSORIES


Recessed well MANUFACTURE FROM MATERIALS OF ANY HEADING

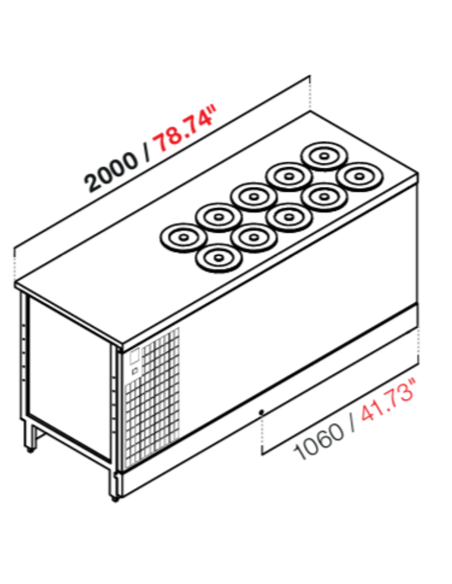

Dimensions product cm 200 x 68.8 x 95.1 h
Capacity N. 10 wells
Surrendered 611 w/h -30°C
Climate class 7 - 35°C/75%U.R.
Power absorbed 525 W
Power supply 230V-1-50Hz
Refrigerant R452A
Norma CE
Warranty 12 months
GENERAL FEATURES
Stainless steel tin containers AISI 304 18/10 for containment of carapines
Exterior tank side operator covered in polished stainless steel with inserted control panel
Interior stainless steel tank 18/10 aisi 304 with sealed welding for the containment of coolant
The tank is equipped with a hole too full to ensure that the glycol levels are higher than that of the carapina
Expansion valve
Ice cream service level is 150/200 mm from the work surface as it must be kept under the coolant level
Inside stainless steel tank and carapine stalks circulates the coolant: a mixture of food glycol and water
Insulating between carapina and tin container
Foam structure with density polyurethane 40kg/mc with thickness 60 mm complete of coiled copper tube and expansion valve
Exterior tub coated in galvanized sheet on all 4 sides plus the bottom for containment of the weight relative to the liquid coolant mass
Double row of carapines with anti rotation system

*COLD LINE REFRIGERATION
* Glycol *
*LENGTH
*200 cm*
*ICE CREAM CAPACITY
* N ° 10 wells *
