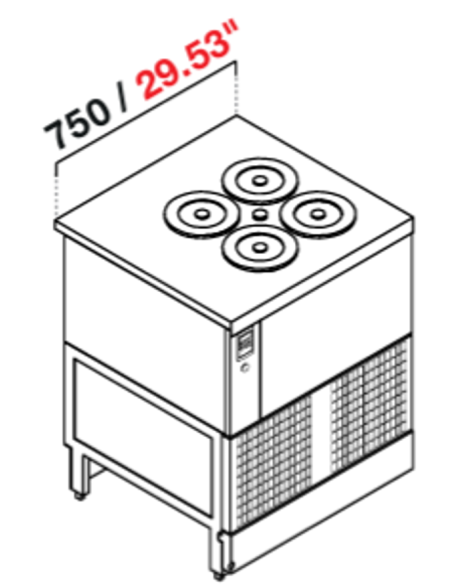

Recessed well - A glycol - N. 4 wells - cm 75 x 68.8 x 95.1 h
Recessed well - A glycol - N. 4 wells - cm 75 x 68.8 x 95.1 h

  • -8%
Recessed well - A glycol - N. 4 wells - cm 75 x...
Recessed well - A glycol - N. 4 wells - cm 75 x...

Recessed well - A glycol - N. 4 wells - cm 75 x 68.8 x 95.1 h

IF-F-EY128216
IF-F-EY128216
€4,327.39 €4,703.69 -8%
€4,327.39 Senza tasse €5,279.42 Con tasse €4,703.69 Senza tasse
Tax excluded

Recessed well - Stainless steel - A glycol - N. 4 wells - No reserve - Dimensions cm 75 x 68.8 x 95.1 h

Options

+ ACCESSORIES


Recessed well MANUFACTURE FROM MATERIALS OF ANY HEADING
Dimensions product cm 75 x 68.8 x 95.1 h
Capacity N. 4 wells
Surrendered 448 w/h -30°C
Climate class 7 - 35°C/75%U.R.
Operating capacity 9.09 cm3
Power absorbed 415 W
Power supply 230V-1-50Hz
Refrigerant R452A
Norma CE
Warranty 12 months
GENERAL FEATURES
Stainless steel tin containers AISI 304 18/10 for containment of carapines
Exterior tank side operator covered in polished stainless steel with inserted control panel
Interior stainless steel tank 18/10 aisi 304 with sealed welding for the containment of coolant
The tank is equipped with a hole too full to ensure that the glycol levels are higher than that of the carapina
Expansion valve
Ice cream service level is 150/200 mm from the work surface as it must be kept under the coolant level
Inside stainless steel tank and carapine stalks circulates the coolant: a mixture of food glycol and water
Insulating between carapina and tin container
Foam structure with density polyurethane 40kg/mc with thickness 60 mm complete of coiled copper tube and expansion valve
Exterior tub coated in galvanized sheet on all 4 sides plus the bottom for containment of the weight relative to the liquid coolant mass
In the tank without external reserve operator side covered in polished stainless steel with control panel inserted
*COLD LINE REFRIGERATION
* Glycol *
*LENGTH
*75 cm*
*ICE CREAM CAPACITY
* N ° 4 wells *
