Vertical hydraulic sausage stuffer 25 liters - Single phase
Vertical hydraulic sausage stuffer 25 liters - Single phase
Vertical hydraulic sausage stuffer 25 liters - Single phase
Vertical hydraulic sausage stuffer 25 liters - Single phase

  • -8%
Vertical hydraulic sausage stuffer 25 liters - Single phase
Vertical hydraulic sausage stuffer 25 liters - Single phase
Vertical hydraulic sausage stuffer 25 liters - Single phase
Vertical hydraulic sausage stuffer 25 liters - Single phase

Vertical hydraulic sausage stuffer 25 liters - Single phase

F-NA-012013
F-NA-012013
€2,788.75 €3,031.25 -8%
€2,788.75 Senza tasse €3,402.28 Con tasse €3,031.25 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

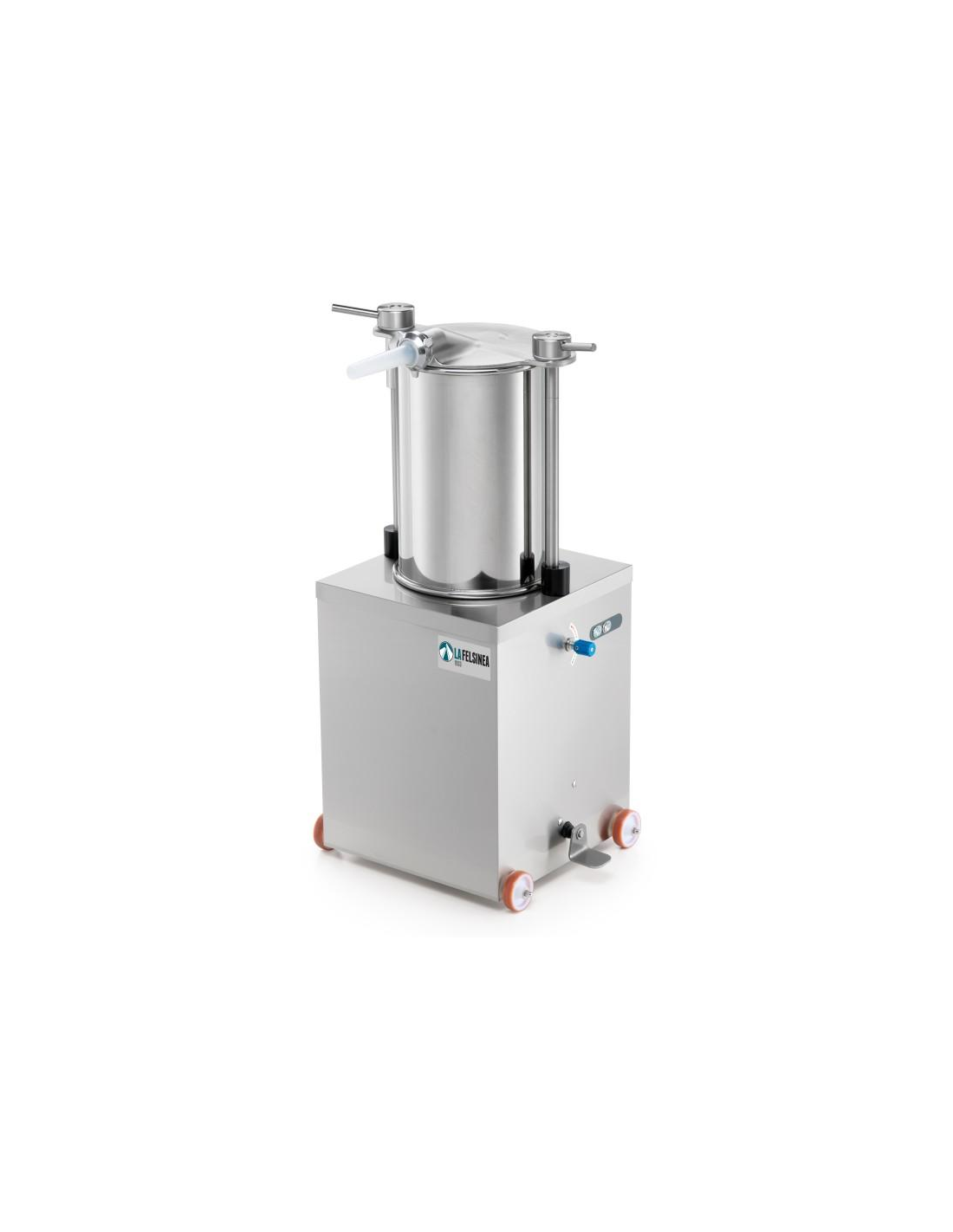

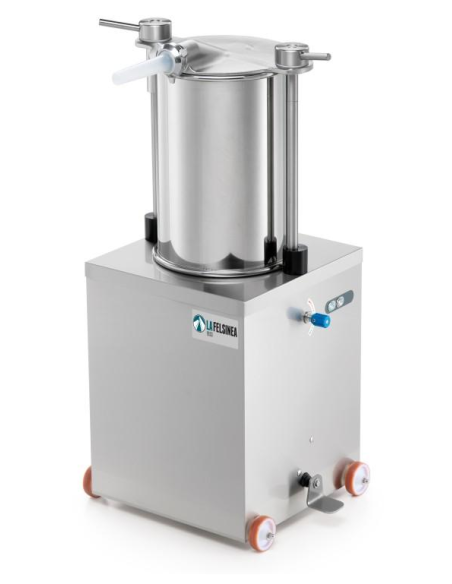

Vertical hydraulic sausage stuffer - Model IS24 VARIA - Cylinder capacity Lt 25 - Cylinder diameter cm Ø 26 - Cylinder length cm 46 - Power Watt/Hp 520/0.7 - Single-phase power supply V230/50Hz - Dimensions cm 56.5 x 45 x 116 h

Options

+ ACCESSORIES


Hydraulic sausage stuffer IS24VARIA-MON
Product size cm 56.5 x 45 x 116 h
Packaging dimensions cm 75 x 58 x 140 h
Weight kg 91 - kg 103
TECHNICAL DATA
Capacity 25 lt
Power supply monophase V230/50Hz
Power Watt/hp 520/07
Cylinder length cm 46
Cylinder Diament cm ø 26
Piston stroke cm 38
Minimum emptying speed 2' 02'
Maximum emptying speed 51
Piston return speed 33"
GENERAL FEATURES
Robust structure made of AISI 304 stainless steel
Airtight protection on hydraulic piston
4 external rubber wheels facilitate movement on each floor (optional model 15)
AISI 304 stainless steel cylinder polished, with rounded edges
Automatic piston return with motor self-offering

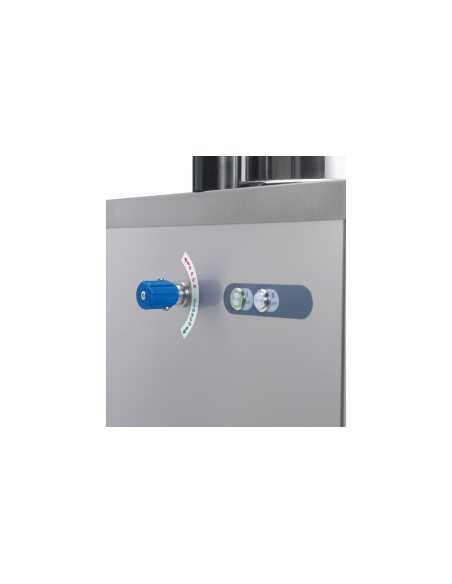

Controls 24 Volt IP54 and hydraulic flow regulator
Operated piston engine only
Fully stainless steel cover and pad
Highly airtight lid closure thanks to the insertion of the same inside the cylinder
Long life of the cover seals thanks to the exclusive internal locking system of the cylinder
Elevator cover for easier opening (only 24 and 35)
Complete with polyethylene funnels of three different sizes: Ø 10-18-25 mm
Available with cam ejectors for cylinder removal
Norma CE
Warranty 12 months
