Vertical hydraulic sausage stuffer 15 liters - Three-phase
Vertical hydraulic sausage stuffer 15 liters - Three-phase
Vertical hydraulic sausage stuffer 15 liters - Three-phase
Vertical hydraulic sausage stuffer 15 liters - Three-phase

  • -8%
Vertical hydraulic sausage stuffer 15 liters - Three-phase
Vertical hydraulic sausage stuffer 15 liters - Three-phase
Vertical hydraulic sausage stuffer 15 liters - Three-phase
Vertical hydraulic sausage stuffer 15 liters - Three-phase

Vertical hydraulic sausage stuffer 15 liters - Three-phase

F-NA-011930
F-NA-011930
€1,979.10 €2,151.20 -8%
€1,979.10 Senza tasse €2,414.51 Con tasse €2,151.20 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

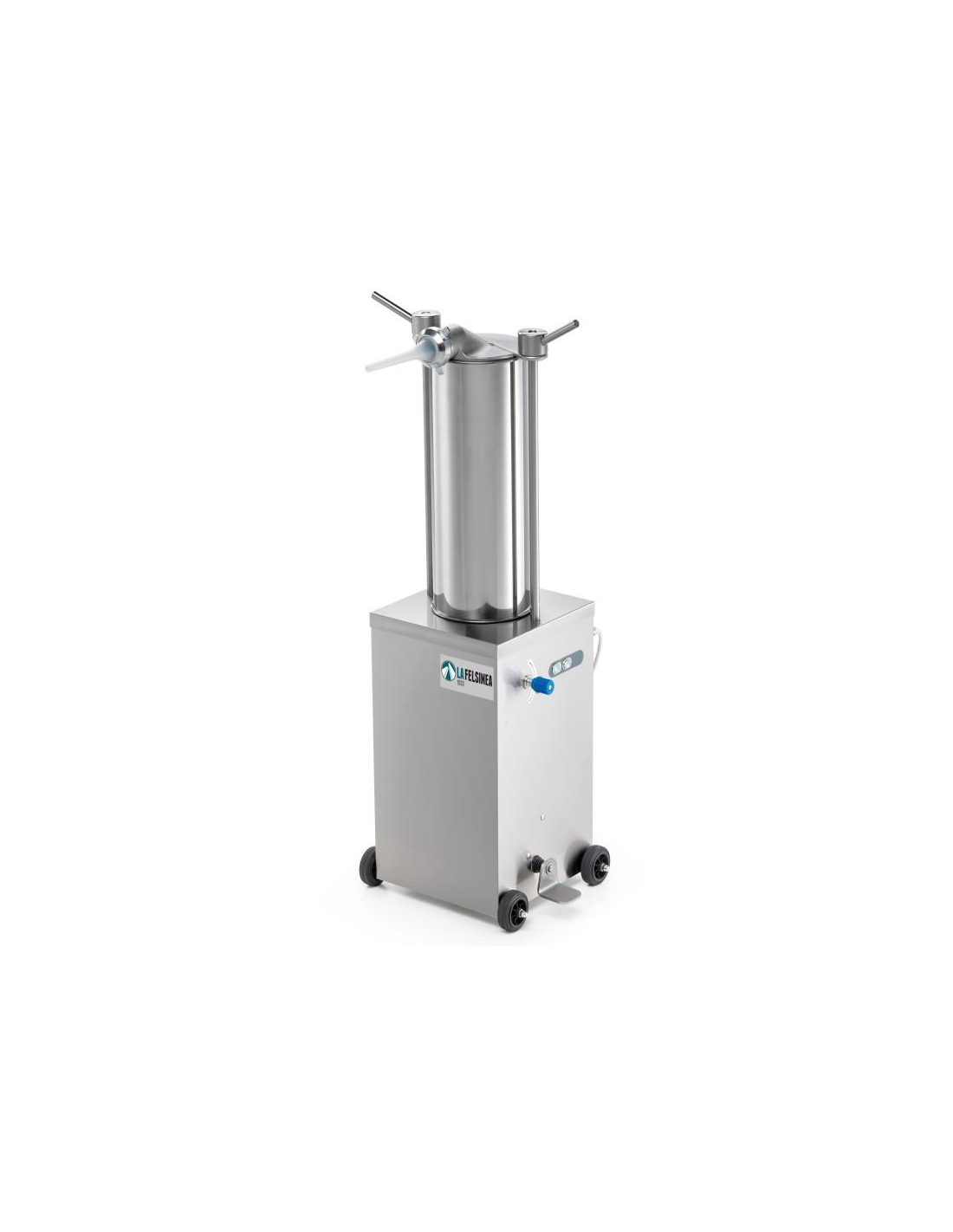

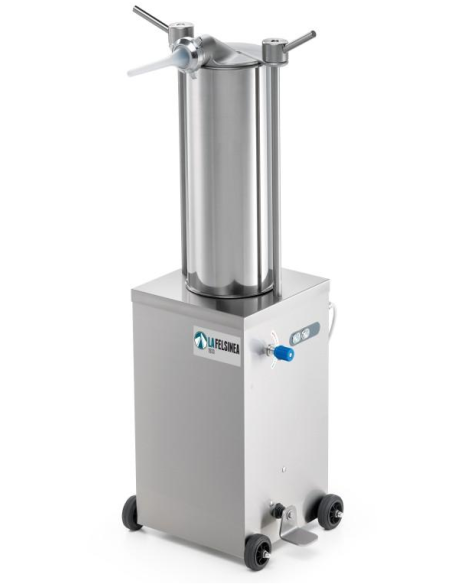

Vertical hydraulic sausage stuffer - Model IS15VARIA - Cylinder capacity Lt 15 - Cylinder diameter cm Ø 20 - Cylinder length cm 49.5 - Three-phase power supply V400/50/3Hz - Dimensions cm 49 x 37 x 120 h

Options

+ ACCESSORIES


Sausage stuffer IS15VARIA
Product size cm 49 x 37 x 120 h
Packaging dimensions cm 75 x 58 x 140 h
Weight kg 53 - kg 63
TECHNICAL DATA
Capacity 15 lt
Power supply Triphase V400/50/3Hz
Power Watt/hp 520/07
Cylinder length cm 49.5
Cylinder Diament cm ø 20
Piston stroke cm 43
Minimum emptying speed 2' 11'
Maximum emptying speed 59"
Piston return speed 35"
GENERAL FEATURES
Robust structure made of AISI 304 stainless steel
Airtight protection on hydraulic piston
4 external rubber wheels facilitate movement on each floor (optional model 15)
AISI 304 stainless steel cylinder polished, with rounded edges
Automatic piston return with motor self-offering

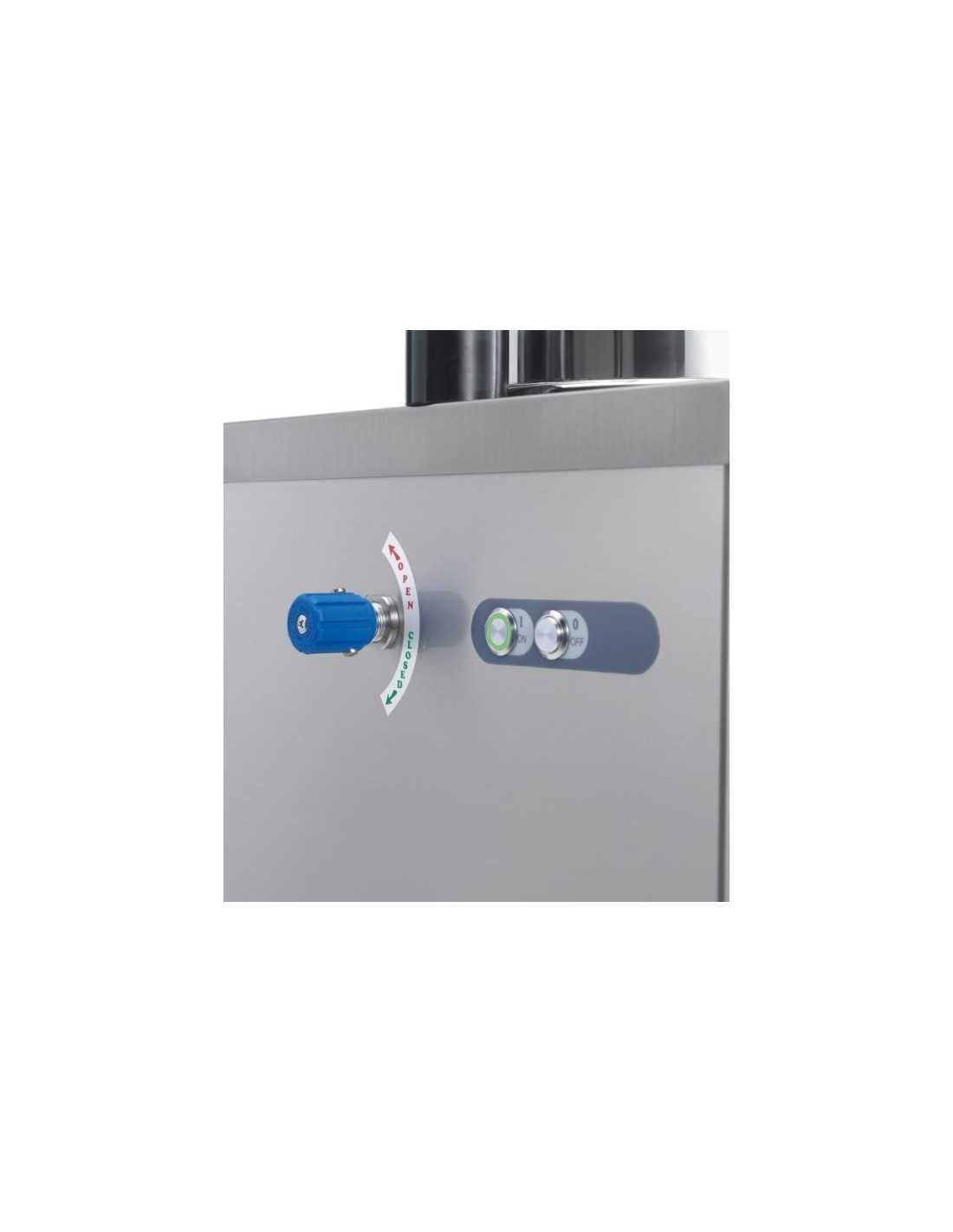

Controls 24 Volt IP54 and hydraulic flow regulator
Operated piston engine only
Fully stainless steel cover and pad

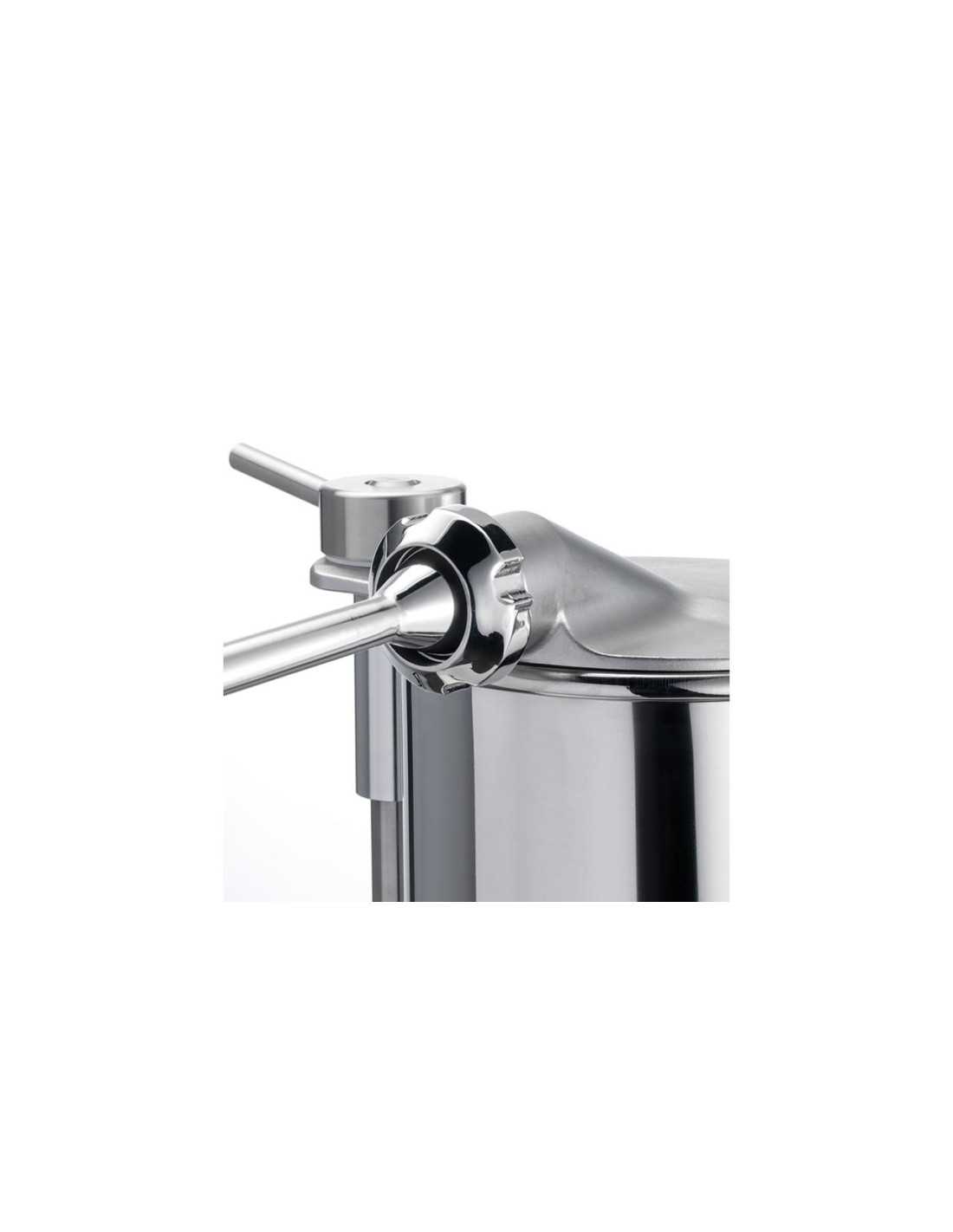

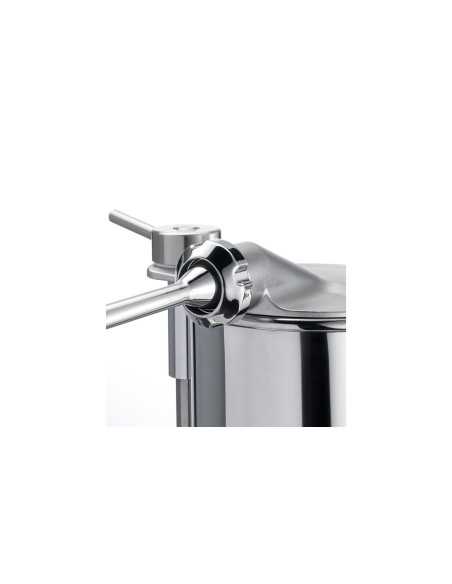

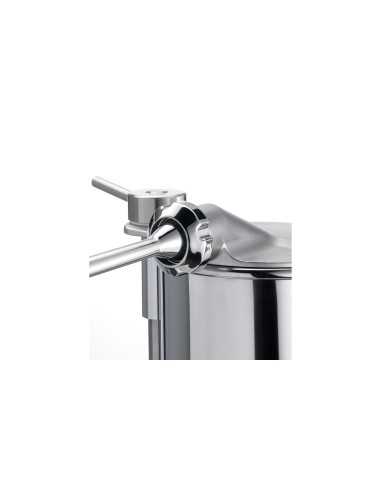

Highly airtight lid closure thanks to the insertion of the same inside the cylinder
Long life of the cover seals thanks to the exclusive internal locking system of the cylinder
Elevator cover for easier opening (only 24 and 35)
Complete with polyethylene funnels of three different sizes: Ø 10-18-25 mm
Available with cam ejectors for cylinder removal
Norma CE
Warranty 12 months
