Basket washer cm 40 x 40 - Max height of glasses cm 30.5 - Cm 45 x 53.5 x 71 h
Basket washer cm 40 x 40 - Max height of glasses cm 30.5 - Cm 45 x 53.5 x 71 h
  • -8%
Basket washer cm 40 x 40 - Max height of...
Basket washer cm 40 x 40 - Max height of...

Basket washer cm 40 x 40 - Max height of glasses cm 30.5 - Cm 45 x 53.5 x 71 h

DI-H-CS40L
DI-H-CS40L
€970.69 €1,055.10 -8%
€970.69 Senza tasse €1,184.24 Con tasse €1,055.10 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Glass washer with basket cm 40 x 40 - Digital controls - Max height of glasses cm 30.5 - Cycles (sec) 90 - 120 - 180 - Power supply single-phase V230/1/50Hz - Cm 45 x 53.5 x 71 h

Options

+ ACCESSORIES

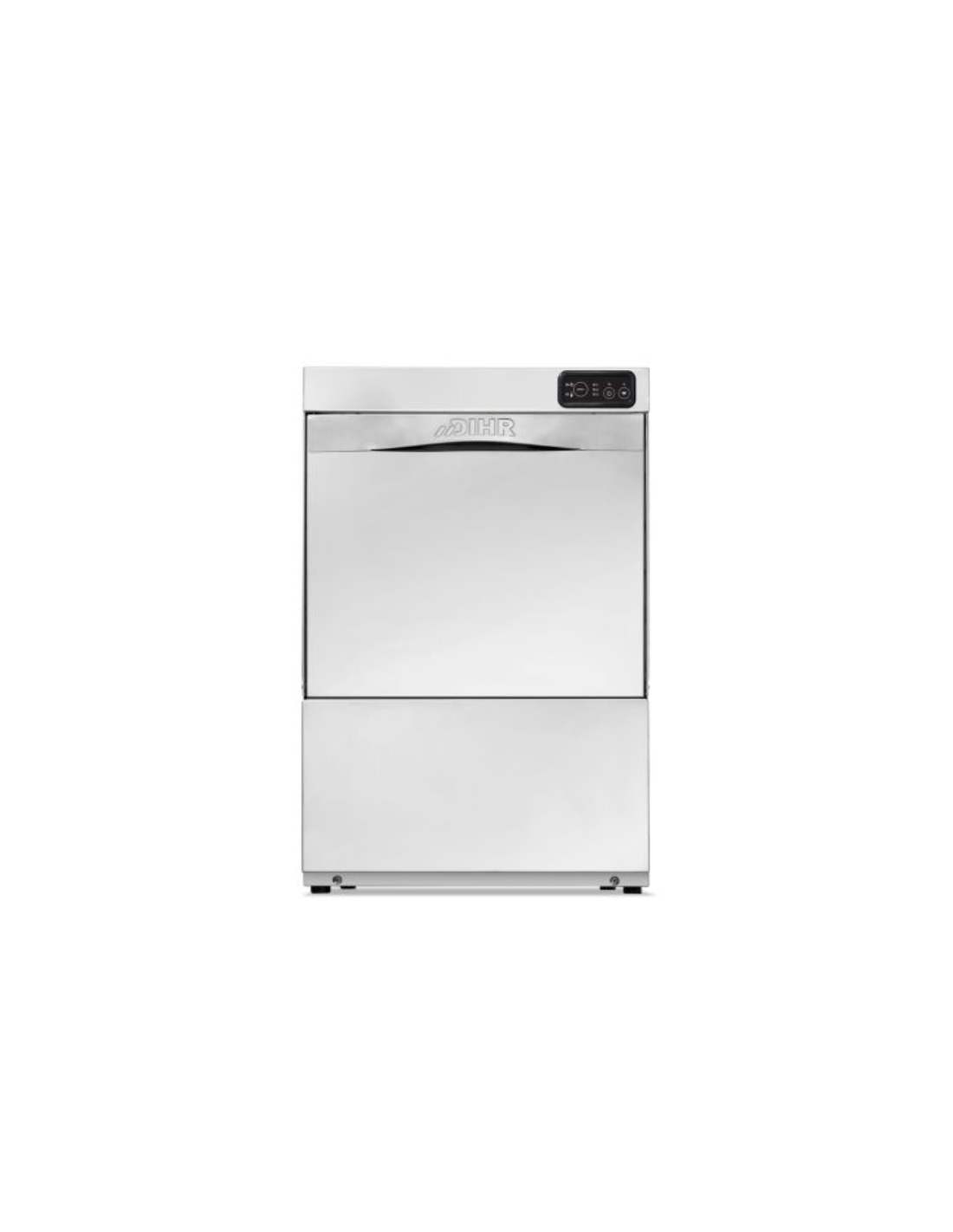

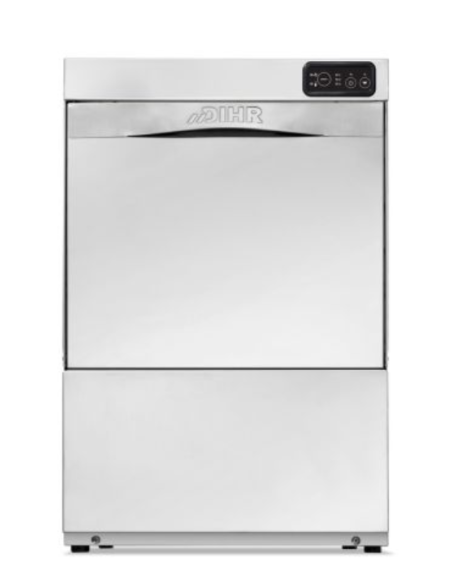

Glass washer Model CS 40 L

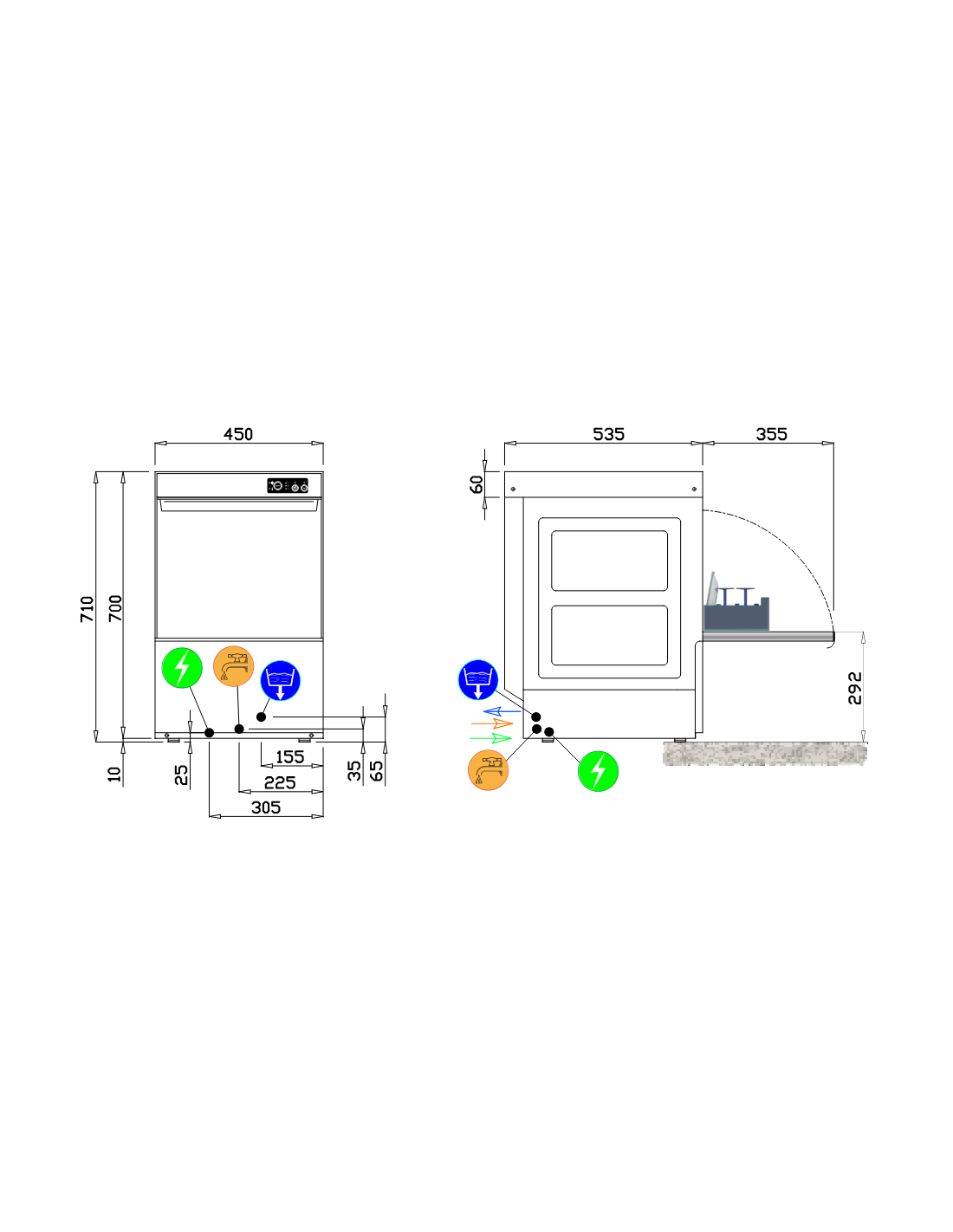

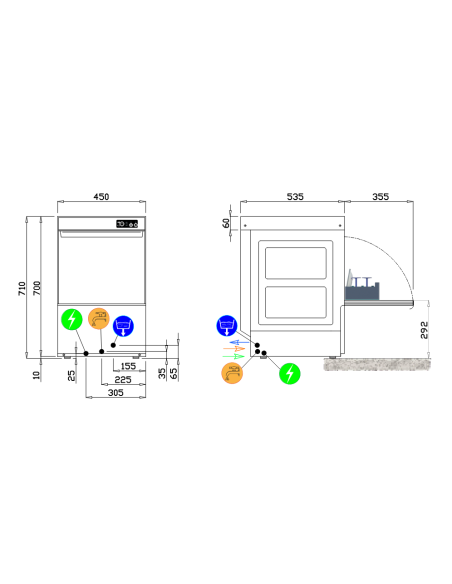

Dimensions Cm 45 x 53.5 x 71 h
Weight Kg 40
Warranty 24 months
Standard CE
Origin Italy
TECHNICAL DATA
Glass washer Digital
Basket Cm 40 x 40
Max height of glasses Cm 30.5
Power maximum input W 2950
Water hardness 2-8 °F
Water supply pressure 200-400 kPq
Cycles 90' - 120' - 180'
Power supply water 55 - Production baskets: 31 baskets in 90' - 30 baskets in 120' - 20 baskets in 180'
Power supply water 10° - Basket production: 14 baskets in 90' - 14 baskets in 120' - 14 baskets in 180'
Water consumption per cycle ( water pressure 200 kPa) 1.8 L
Capacity boiler 3.4 L
Boiler resistance W 2400
Rinse temperature set 85°C
Capacity tank 14.5 L
Tank heater 1250W
Tub temperature set 55°C
Power pump 190W (120 L/ min )
Noise 60.6 (dB)
GENERAL FEATURES
Stainless steel glass washer AISI 304
Inclined tank with screwed basket guide rails
Soundproofed, heat-resistant double-walled door
Door safety device in case of accidental opening
Integrated overflow system and drain filters for triple wash pump protection
1 wash cycle in electromechanical versions
Lightweight composite impellers, efficient even at low mains pressure
Removable nozzles to facilitate daily cleaning operations
Non-return valve
Thermostop system: rinsing starts only when 85°C in boiler is reached
Standard rinse aid dispenser
Optional: round basket
*BASKET
*Square basket*
*BASKET DIMENSIONS
*Cm 40 x 40*
*DRAIN PUMP
*Without exhaust pump*
*COMMANDS
*Electronic controls*
