Ice maker full cube - Air/Water 140 kg/24h
Ice maker full cube - Air/Water 140 kg/24h
  • -8%
%product-name%
Ice maker full cube - Air/Water 140 kg/24h
Ice maker full cube - Air/Water 140 kg/24h

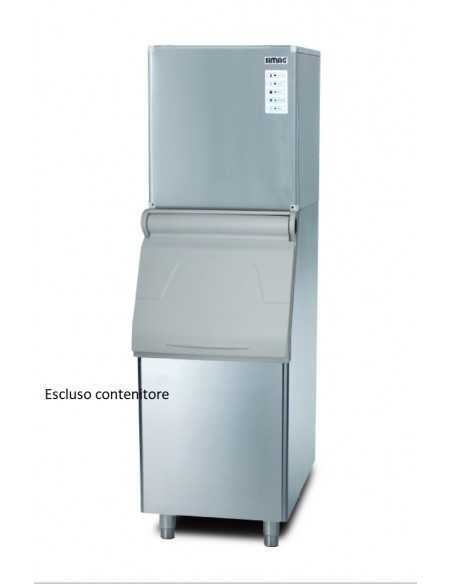

Full Cube Ice Maker - Air/Water 140 kg/24h

S-MGG-SVH152AS
S-MGG-SVH152AS
€2,139.33 €2,325.36 -8%
€2,139.33 Senza tasse €2,609.98 Con tasse €2,325.36 Senza tasse
Tax excluded

Full cube ice maker - Mod. SVH152AS - Production with air motor kg 160/24h - Production with water motor kg 140/24 h - Dimensions cm 55.9 x 66.1 x 60.9h

Option to choose

Options

+ ACCESSORIES


Ice Maker model SVH152AS

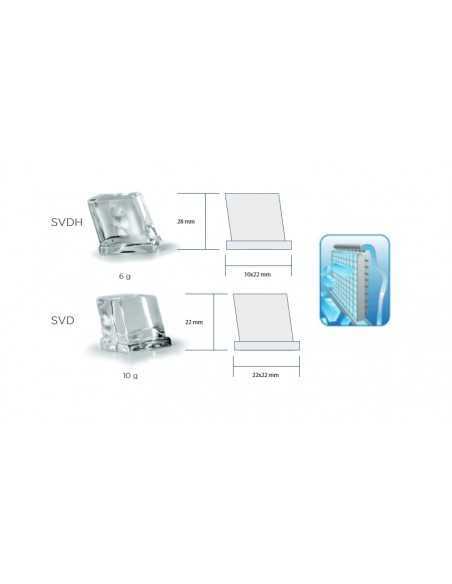

Cube type says
Dimensions cube mm 22 x 22 x 22 h
Cube grams 10 g
Production kg - 24 h air condensation Kg 160
Production kg - 24 h condensing water Kg 140
External bin Optional (to be chosen)
Condensation Air - Water (please indicate when ordering)
Warranty 12 months
Standard CE
Origin Italy

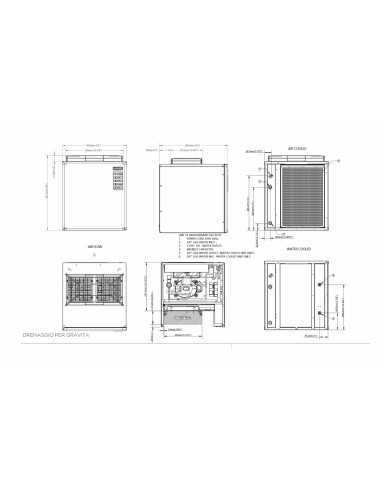

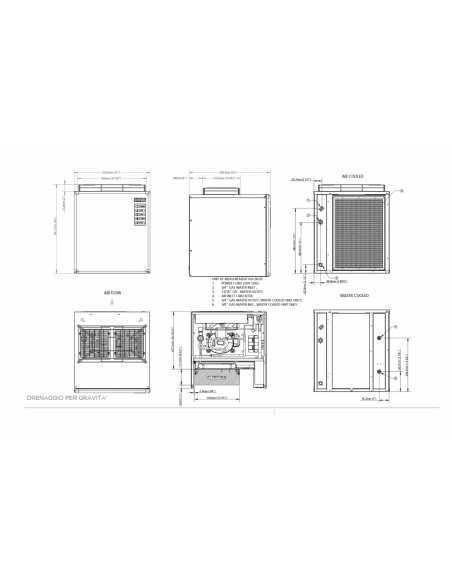

PRODUCT DIMENSIONS
Dimensions machines Cm 55.8 x 61 x 60.9h
Dimensions packaging Cm 62 x 68 x 80 h
Net weight - Gross weight Kg 55 - 70
Volume M³ 0.34
VOLTAGE E CONSUMPTION
Power supply Monophase V230-50-1 Hz
Available on request V 220-60-1
Air consumption W 950
Water absorption W 950
Water consumption - Air Lt-h 7.3
Water consumption - Water Lt-h 109.6
LIMITS OF USE
Temperature air Minimum 10°C - Maximum 40°C
Temperature water Minimum 5°C - Maximum 35°C
Water pressure Minimum 1 bar - Maximum 5 bar
Electrical voltage Minimum -10% Maximum +10%
GENERAL CHARACTERISTICS
High-efficiency vertical evaporator
Stainless steel construction
Revealed water and electric savings
Self-diagnostic system with led indicators
Easily removable condenser filter
Front access to evaporator: immediate access to evaporator for quick cleaning operations
Modular maker: requires a separate container to collect the ice produced
R290 refrigerant gas
RECOMMENDED CONTAINERS
R100 Kg 129
R130 Kg 168
CONTAINERS REQUIRING LIDS
R150 Kg 181
R190 Kg 243

*HOURLY PRODUCTION
*fino a 160 kg/ 24 h*
*CONTAINER CAPACITY
*Combinable*
*ICE CONTAINER
*Prepared for external container*
