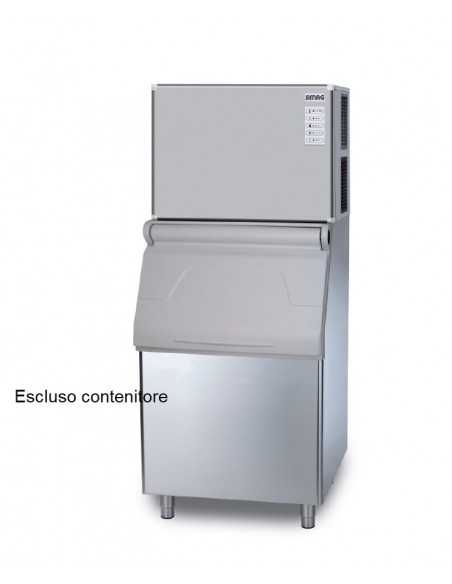

Full cube ice maker - Air/Water 220 kg/24h
Full cube ice maker - Air/Water 220 kg/24h
Full cube ice maker - Air/Water 220 kg/24h


  • -8%
Full cube ice maker - Air/Water 220 kg/24h
Full cube ice maker - Air/Water 220 kg/24h
Full cube ice maker - Air/Water 220 kg/24h

Full cube ice maker - Air/Water 220 kg/24h

S-MG-SVD203
S-MG-SVD203
€2,481.20 €2,696.96 -8%
€2,481.20 Senza tasse €3,027.07 Con tasse €2,696.96 Senza tasse
Tax excluded

Ice maker full cubes - Model SVD 203 - Production with air engine kg 215/24h - Production with water engine kg 200/24 h - Dimensions cm 76 x 62 x 57.5 h

Option to choose

Options

+ ACCESSORIES


PRODUCT INFORMATION
Ice maker SVD203

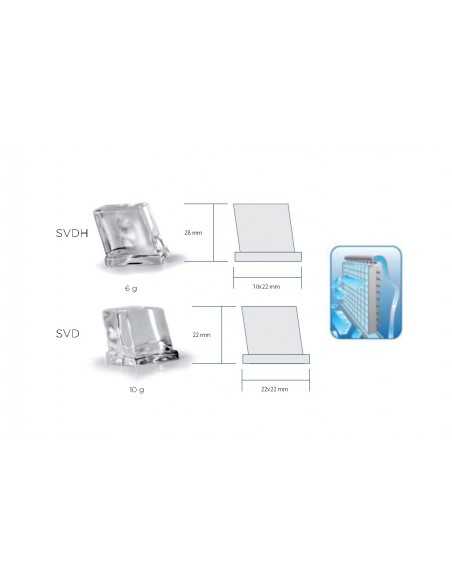

Type of cube DECEMBER
Cube size mm 22 x 22 x 22 h
Grams cube 10 g
Production kg /24 h air condensation Kg 220
Production kg /24 h water condensation Kg 220
Outer Bin Optional ( to choose)
Condensation Air / Water ( indicate in order phase)
Warranty 24 months
Norma CE
Origin Italy

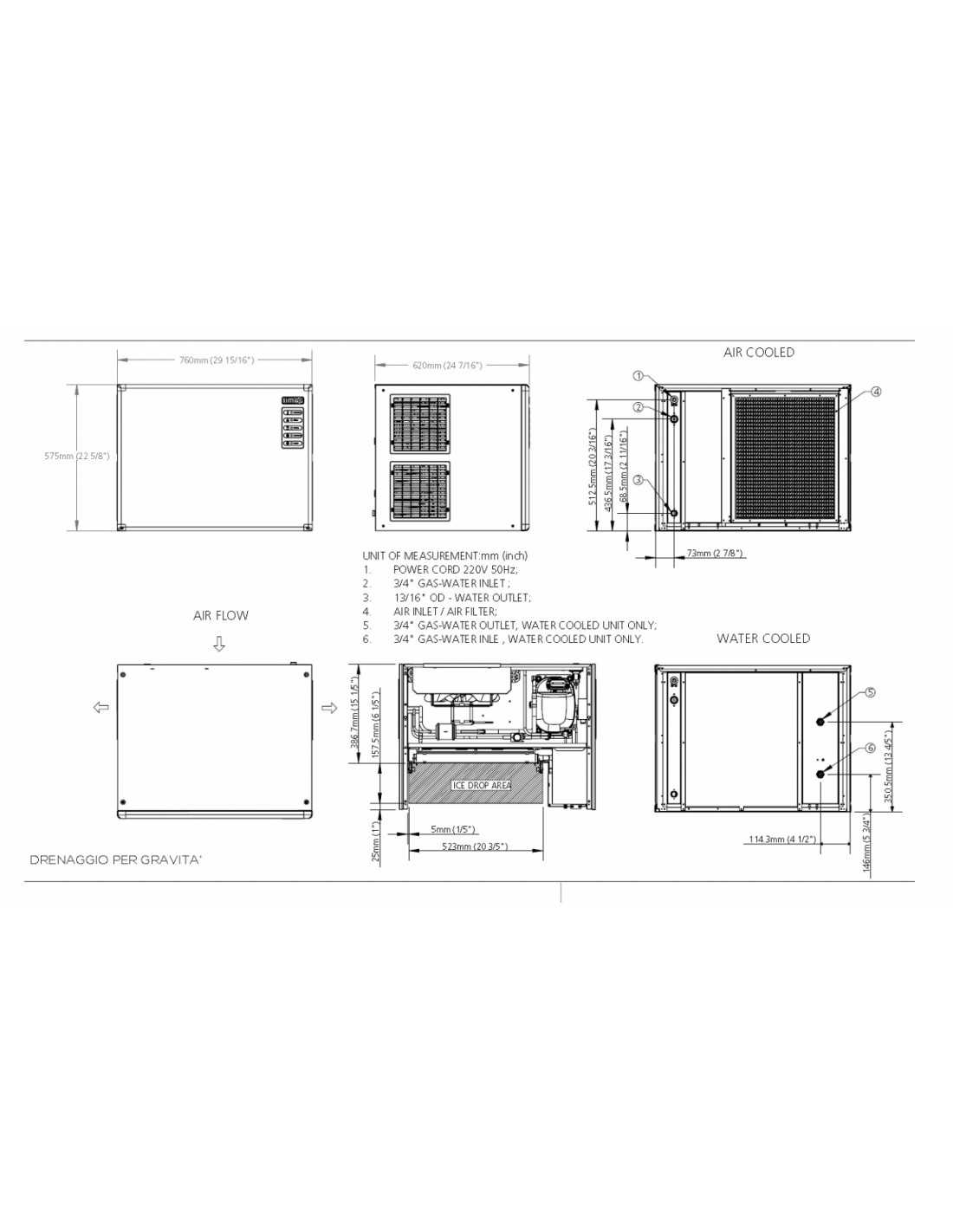

PRODUCT DIMENSIONS
Machine dimensions C 76 x 62 x 57.5 h
Packaging dimensions C 83 x 69 x 72 h
Net Weight / Gross Weight Kg 69 / 85
Volume M3 0.57
VOLTAGGING AND CONSUMERS
Power supply Monophase V230/50/1 Hz
Available on request V 220/60/1
Air absorption W
Water absorption W
Water consumption - Air 11.2
Water consumption - Water Lt/h 84.3
IMPIEGO LIMITS
Air temperature Minimum 10°C - Maximum 40°C
Water temperature Minimum 5°C - Maximum 35°C
Water pressure Minimum 1 bar - Maximum 5 bar
Electrical voltage Minimum -10% Maximum +10%
GENERAL FEATURES
High Efficiency Vertical Evaporator
Stainless steel frame
Evelato water and electricity saving
Autodiagnostic system with led indicators
Easily removable condenser filter
Front access to the evaporator: immediate access to the evaporator for fast cleaning operations
Modular manufacturer: needs a separate container for the collection of ice produced
CONTENTS
R Kg 182
R190 Kg 243
CONTENTS OF COPERKING
R KG 406



*HOURLY PRODUCTION
*fino a 300 kg/ 24 h*
*CONTAINER CAPACITY
*Combinable*
*ICE CONTAINER
*Prepared for external container*
