Ice maker - Production Kg/h 2300 - cm 106.2 x 83.2 x 142.3 h
Ice maker - Production Kg/h 2300 - cm 106.2 x 83.2 x 142.3 h
Ice maker - Production Kg/h 2300 - cm 106.2 x 83.2 x 142.3 h

  • -8%
%product-name%
Ice maker - Production Kg/h 2300 - cm 106.2 x...
Ice maker - Production Kg/h 2300 - cm 106.2 x...
Ice maker - Production Kg/h 2300 - cm 106.2 x...

Ice maker - Production Kg/h 2300 - cm 106.2 x 83.2 x 142.3 h

N-FTT-SM4500
N-FTT-SM4500
€18,383.44 €19,982.00 -8%
€18,383.44 Senza tasse €22,427.80 Con tasse €19,982.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

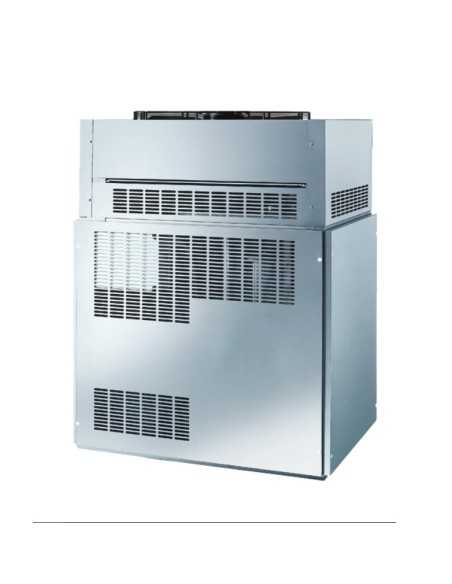

Subcooled flat flake ice maker - Model SM4500 - Production up to Kg/h 2300 - Power W 7000 - Dimensions cm 106.2 x 83.2 x 142.3 h

Options

+ ACCESSORIES


Ice maker SM 4500
System A subcooled flakes
Dimensions product Cm 106.2 x 83.2 x 142.3 h
Dimensions packaging Cm 115 x 96 x 170 h
Net weight / Gross Kg 520/570
Warranty 12 months
Standard CE
Origin Italy
TECHNICAL DATA
Production in 24 h Kg 2300
Condensation Air
Refrigerant gas R 404A - R452A
Power supply Three-phase V400/3/50Hz
Power W 7000
Water consumption 1 l/kg
Fuse 32A
CONDITIONS D'INSTALLATION
Installation Indoor
Temperature environment Min +10°C / Max +43°C
Temperature water Min +3°C / Max +32°C
Inlet water pres Mix 1bar (14 psi) / 6bar (84 psi)
TECHNICAL FEATURES
Subcooled flakes ( -5° to -10°C )
Low consumption (1 lt water / 1 kg ice)
Electromechanical operating system
External structure AISI 304, scotch Brite finish
Stainless steel frame
Anticorodal alloy evaporator, equipped with rotating knife
1 m³ = 430 kg of ice
ABS components FDA approved
Simplified cleaning thanks to rounded surfaces
Inspectable limestone filter
RoHS directive compliance
Automatic water loading
Tropical Class +43 model°C
INFORMATION:

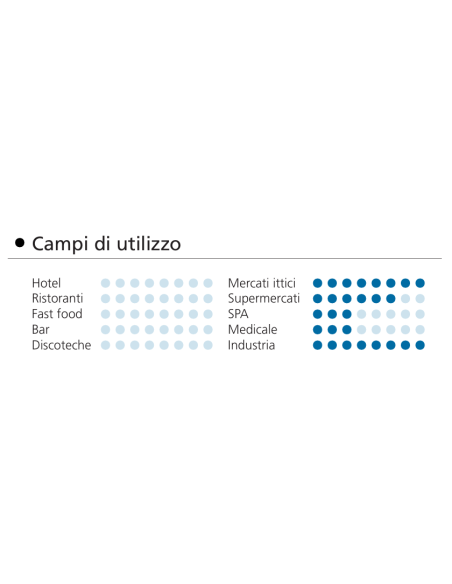

Flat flake ice under cooled, has a temperature of about -5°C. 100% ice , ranging in thickness from 1.5 to 2 mm. Easy to store, handle and dose, it is ideal for the fish industry, meat processing, transportation and food preservation. Ideal for: fish markets, supermarkets, industry, etc

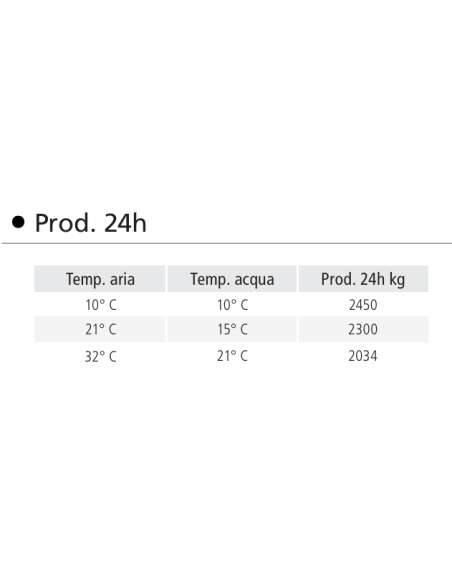

*HOURLY PRODUCTION
*fino a 2200 kg / 24 h*
*ICE CONTAINER
*Prepared for external container*
