Ice Maker - Production Kg/h 400 - cm 49.5 x 58.8 x 70.5 h
Ice Maker - Production Kg/h 400 - cm 49.5 x 58.8 x 70.5 h
Ice Maker - Production Kg/h 400 - cm 49.5 x 58.8 x 70.5 h

  • -8%
%product-name%
Ice Maker - Production Kg/h 400 - cm 49.5 x...
Ice Maker - Production Kg/h 400 - cm 49.5 x...
Ice Maker - Production Kg/h 400 - cm 49.5 x...

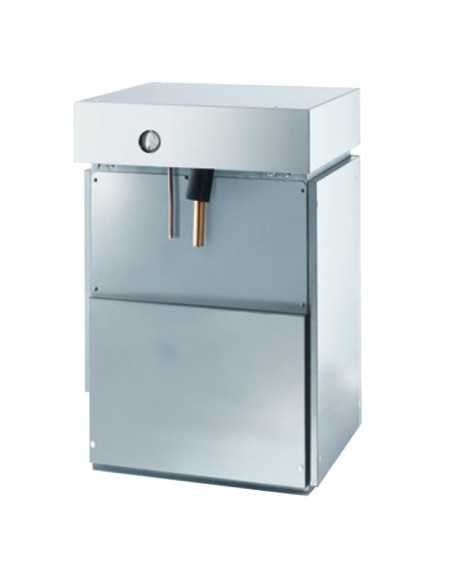

Ice Maker - Production Kg/h 400 - cm 49.5 x 58.8 x 70.5 h

N-FTT-SPLIT750
N-FTT-SPLIT750
€4,377.36 €4,758.00 -8%
€4,377.36 Senza tasse €5,340.38 Con tasse €4,758.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Subcooled flat flake ice maker - Model SPLIT750 - Production up to Kg/h 400 - Power W 180 - Dimensions cm 49.5 x 58.8 x 70.5 h

Options

+ ACCESSORIES


Ice Maker SPLIT750
System A subcooled flakes
Dimensions product Cm 49.5 x 58.8 x 70.5 h
Dimensions packaging Cm 55 x 65.5 x 90 h
Net weight / Gross Kg 66/82
Warranty 24 months
Standard CE
Origin Italy
TECHNICAL DATA
Production in 24 h 400 kg
Prearranged For external condenser
Power refrigeration W 2200 ( evap. temp. -23°C)
Power supply Monophase V230/1/50Hz
CONDITIONS D'INSTALLATION
Installation Indoor
Temperature environment Min +10°C / Max +43°C
Temperature water Min +3°C / Max +32°C
Inlet water pres Mix 1bar (14 psi) / 6bar (84 psi)
TECHNICAL FEATURES
Subcooled flakes ( -5° to -10°C )
Low consumption (1 lt water / 1 kg ice)
External structure AISI 304, scotch Brite finish
Anticorodal alloy evaporator, equipped with rotating knife
1 m³ = 430 kg of ice
ABS components FDA approved
Simplified cleaning thanks to rounded surfaces
Inspectable limestone filter
RoHS directive compliance
Automatic water loading
Tropical Class +43 model°C
COMBINABLE BIN CONTAINERS:
Container model BINT830 = Capacity kg 350 - Stainless steel frame AISI 304 - Feet 100-160 mm - Dimensions cm 125 x 81.5 x 100 - Dimensions packing Cm 130 x 85 x 118 h - Net weight / gross kg 102/120.5
Containermodel 1200DD = Capacity container kg 550 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h - Foot cm 3 - Net weight kg 163
Container model RB280 = Capacity cart up kg 108 x 2 - Capacity reserve kg 50 - Dimensions cm 156 x 106 x 148.4 h - Dimensions packing cm 162.5 x 112.5 x 165.5 h - Net weight / gross 135/170 kg
INFORMATION:
Flat flake ice under cooled, has a temperature of about -5°C. 100% ice , ranging in thickness from 1.5 to 2 mm. Easy to store, handle and dose, it is ideal for the fish industry, meat processing, transportation and food preservation. Ideal for: fish markets, supermarkets, industry, etc
*HOURLY PRODUCTION
*fino a 400 kg/ 24 h*
*ICE CONTAINER
*Prepared for external container*
