Ice maker - Kg production/h 1500 - cm 60.4 x 70...

Ice maker - Kg production/h 1500 - cm 60.4 x 70 x 97 h

N-FTT-SPLIT3300
N-FTT-SPLIT3300
€8,157.49 €8,866.83 -8%
€8,157.49 Senza tasse €9,952.13 Con tasse €8,866.83 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

Ice maker with undercooled flat scales - Model SPLIT3300 - Production up to Kg/h 1500 - Power W 180 - Matchable containers: 1200DD/DRB1100 - Dimensions cm 60.4 x 70 x 97 h

Options

+ ACCESSORIES


PRODUCT INFORMATION

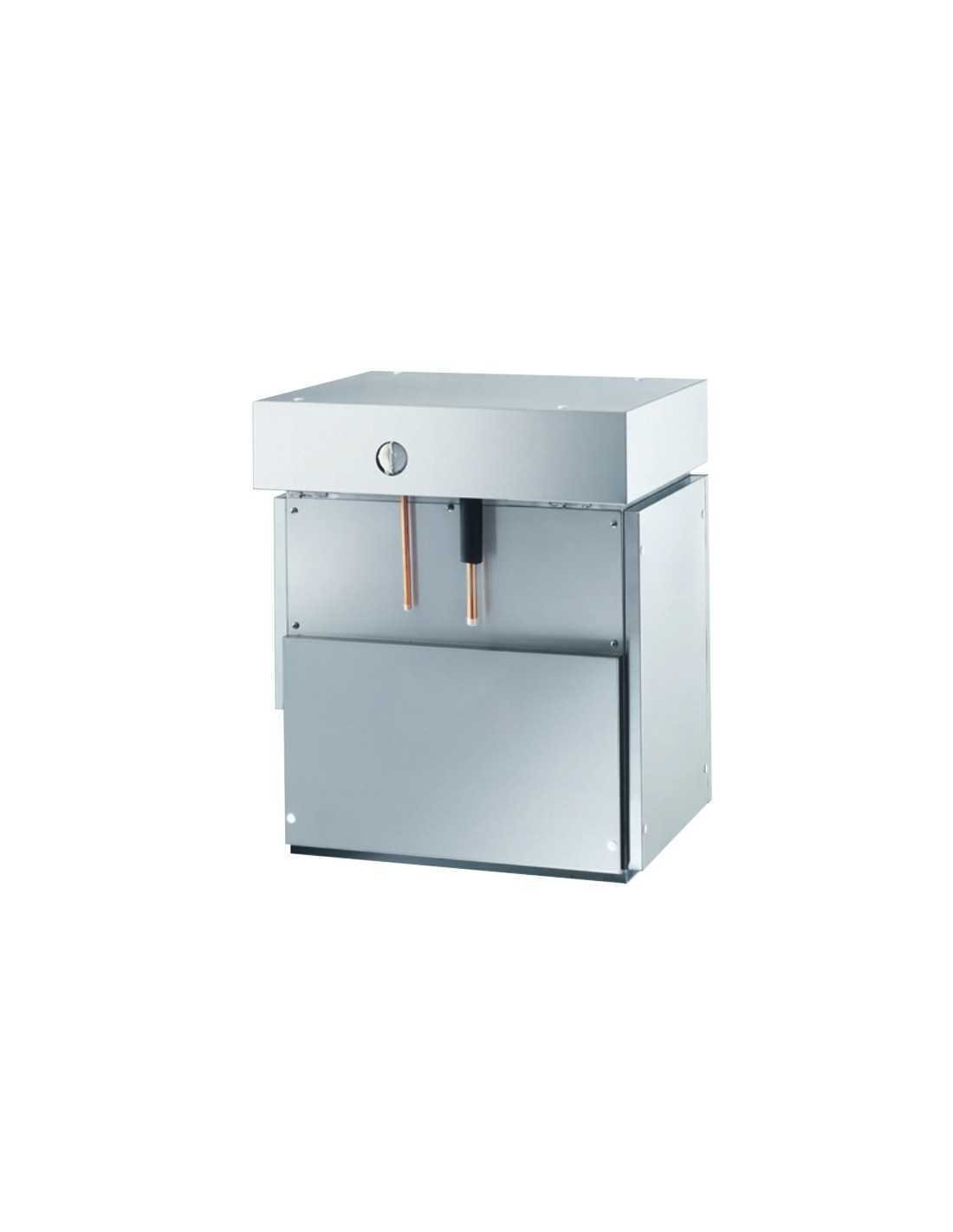

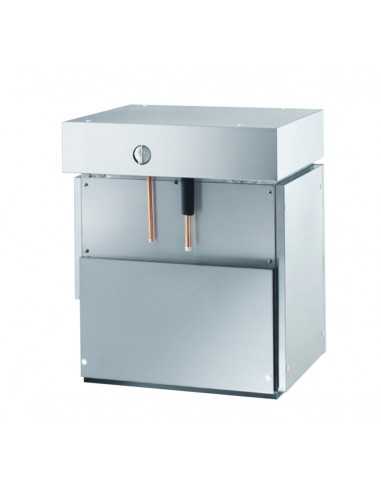

Ice maker SPLIT3300
System Underwater scales
Product size C 60.4 x 70 x 97 h
Packaging dimensions C 65.5 x 78.5 x 145.5 h
Net weight / Lord Kg 144/60
Warranty 24 months
Norma CE
Origin Italy
TECHNICAL DATA
Production in 24 h Kg 1500
Required For external capacitor
Power fridge W 8550 ( temp. evap. -24°C)
Power supply Monophase V230/1/50Hz
INSTALLATION CONDITIONS
Installation Interior
Ambient temperature Min +10°C / Max +43°C
Water temperature Min +3°C / Max +32°C
Pres. inlet water Mix 1bar (14 psi) / 6bar (84 psi)
TECHNICAL FEATURES
Subcooled ankles (from -5° to -10°C)
Reduced consumption (1 lt water / 1 kg ice)
AISI 304 exterior structure, Brite scotch finish
Anticorodal alloy evaporator, equipped with rotating knife
1 m3 = 430 kg ice
FDA Approved ABS components
Simplified cleaning thanks to rounded surfaces
Filter antiscale inspectable
Compliance RoHS Directive
Automatic water charge
Tropical Class Model +43°C
CONTENTS BIN ABBINABILI:
Container model 1200DD = Container capacity kg 550 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h - Folding cm 3 - Net weight kg 163
Container model DRB1100 = Container capacity kg 300 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h - Dimensions packaging cm 163 x 120 x 114.5 (x2) mm - Net / gross weight Kg 204/307
INFORMATION:
Ice under cooled flat scales, has a temperature of about -5°C. 100% ice, of a thickness varying from 1.5 to 2 mm. Easy to store, handle and dose, it is ideal for the fish industry, for meat processing, transport and food preservation. Ideal for: fish markets, supermarkets, industry, etc
*HOURLY PRODUCTION
*fino a 1500 kg / 24 h*
*ICE CONTAINER
*Prepared for external container*
