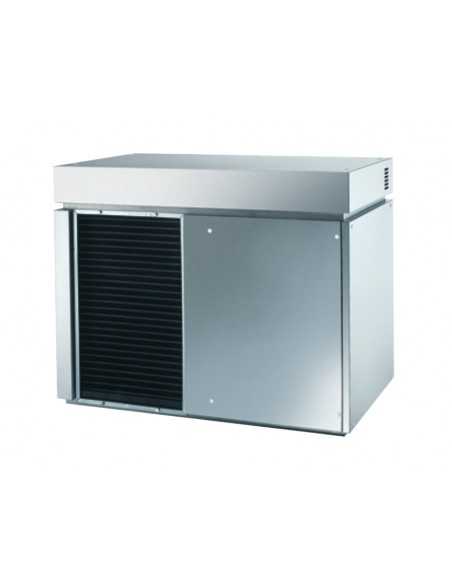

Ice Maker - Production Kg/h 900 - cm 110.7 x 70 x 88 h

N-FTT-SM1750WA
N-FTT-SM1750WA
€9,173.32 €9,971.00 -8%
€9,173.32 Senza tasse €11,191.45 Con tasse €9,971.00 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days

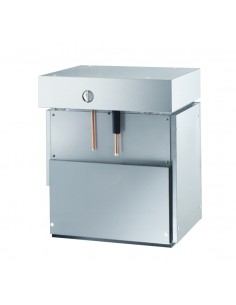

Subcooled flat flake ice maker - Model SM1750 - Production up to Kg/h 900 - Power W 4600 - Matching containers:1200DD/DRB1100/DRB2500 - Dimensions cm 110.7 x 70 x 88 h

Option to choose

Options

+ ACCESSORIES


Ice maker SM 1750
System A subcooled flakes
Dimensions product Cm 110.7 x 70 x 88 h
Dimensions packaging Cm 121 x 80 x 109.5 h
Net weight / Gross Kg 241/262
Warranty 24 months
Standard CE
Origin Italy
TECHNICAL DATA
Production in 24 h Kg 900
Matching containers (optional) 200DD/DRB1100/DRB2500
Condensation Air or Water ( to be chosen when ordering)
Refrigerant gas R 404A - R452A
Power supply Three-phase V400/3/50Hz
Power W 4600
Water consumption (air condensation) 1 l/kg
Water consumption (water condensation) 6.9 l/kg
Fuse 16A
CONDITIONS D'INSTALLATION
Installation Indoor
Temperature environment Min +10°C / Max +43°C
Temperature water Min +3°C / Max +32°C
Inlet water pres Mix 1bar (14 psi) / 6bar (84 psi)
TECHNICAL FEATURES
Subcooled flakes ( -5° to -10°C )
Low consumption (1 lt water / 1 kg ice)
Electromechanical operating system
External structure AISI 304, scotch Brite finish
Stainless steel frame
Anticorodal alloy evaporator, equipped with rotating knife
1 m³ = 430 kg of ice
ABS components FDA approved
Simplified cleaning thanks to rounded surfaces
Inspectable limestone filter
RoHS directive compliance
Automatic water loading
Tropical Class +43 model°C
COMBINABLE BIN CONTAINERS:

Containermodel 1200DD = Capacity container kg 550 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h - Foot cm 3 - Net weight kg 163

Containermodel DRB1100 = Capacity container kg 300 - Water discharge ø mm 24 - Dimensions cm 111 x 106 x191.5 h- Dimensions packing cm 163 x 120 x 114.5 (x2) mm - Net weight / gross Kg 204/307

Containermodel DRB2500 = Capacity container kg 1000 - Water discharge ø mm 24 - Dimensions cm 156 x 133 x 246 h - Dimensions packing cm 163 x 120 x 114.5 (x3) mm - Net weight / gross Kg 251/404

INFORMATION:

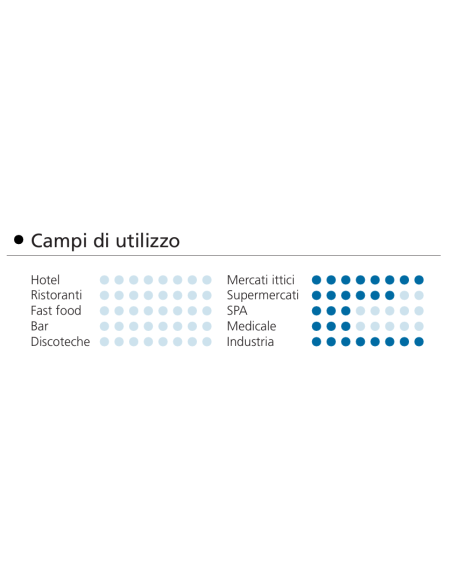

Flat flake ice under cooled, has a temperature of about -5°C. 100% ice , ranging in thickness from 1.5 to 2 mm. Easy to store, handle and dose, it is ideal for the fish industry, meat processing, transportation and food preservation. Ideal for: fish markets, supermarkets, industry, etc

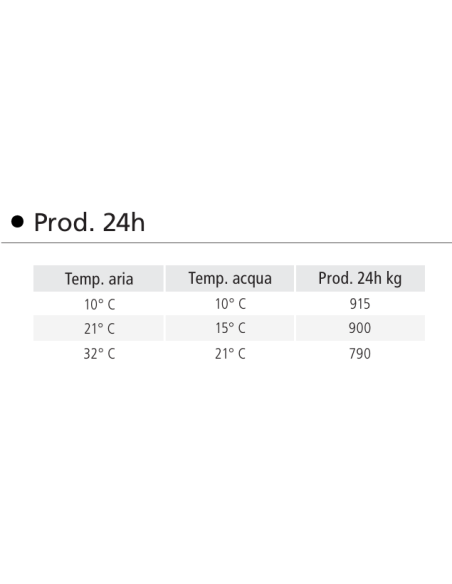

*HOURLY PRODUCTION
*fino a 900 kg / 24 h*
*ICE CONTAINER
*Prepared for external container*
