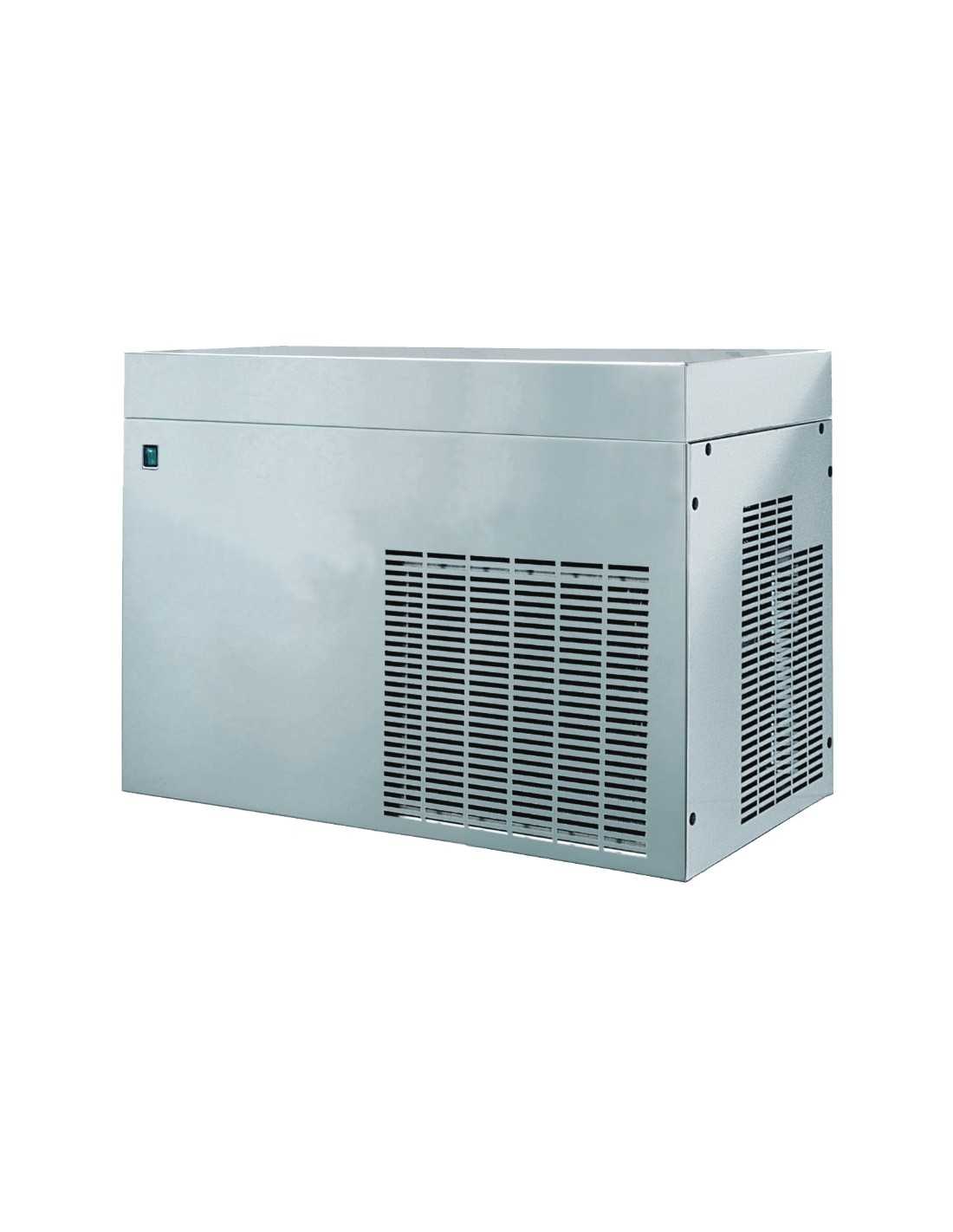

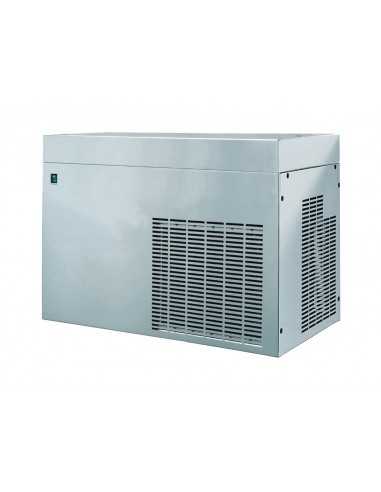

Ice maker - Kg production/h 250 - cm 87 x 55 x 60 h
N-FTT-SM500WA
N-FTT-SM500WA
€4,490.97
€4,881.49
-8%
€4,490.97 Senza tasse
€5,478.98 Con tasse
€4,881.49 Senza tasse
Tax excluded
Shipping times: from 3 days to 15 working days
Ice maker with undercooled flat scales - Model SM500 - Production up to Kg/h 250 - Power W 1700 - Matchable containers: T420/T830 - Size cm 87 x 55 x 60 h
Options
+ ACCESSORIES
PRODUCT INFORMATION | |
---|---|
Ice maker | SM 500 |
System | Underwater scales |
Product size | C 87 x 55 x 60 h |
Packaging dimensions | C 95.5 x 62 x 77 h |
Net weight / Lord | Kg 100/120 |
Warranty | 24 months |
Norma | CE |
Origin | Italy |
TECHNICAL DATA | |
---|---|
Production in 24 h | Kg 250 |
Matchable containers (optional) | T420/T830 |
Condensation | Air or Water (to be selected during ordering) |
Refrigerant gas | R 404A - R452A |
Power supply | Monophase V230/1/50Hz |
Power | W 1700 |
Water consumption (air consumption) | 1 l/kg |
Water consumption (water consumption) | 7.5 l/kg |
Fuse | 16A |
INSTALLATION CONDITIONS | |
---|---|
Installation | Interior |
Ambient temperature | Min +10°C / Max +43°C |
Water temperature | Min +3°C / Max +32°C |
Pres. inlet water | Mix 1bar (14 psi) / 6bar (84 psi) |
TECHNICAL FEATURES | |
---|---|
Subcooled ankles (from -5° to -10°C) | |
Reduced consumption (1 lt water / 1 kg ice) | |
Electromechanical operating system | |
AISI 304 exterior structure, Brite scotch finish | |
Stainless steel frame | |
Anticorodal alloy evaporator, equipped with rotating knife | |
1 m3 = 430 kg ice | |
FDA Approved ABS components | |
Simplified cleaning thanks to rounded surfaces | |
Filter antiscale inspectable | |
Compliance RoHS Directive | |
Automatic water charge | |
Tropical Class Model +43°C |
CONTENTS BIN ABBINABILI: | |
---|---|
Container model BINT420 = Capacity kg 200 - AISI 18/10 stainless steel structure - Folds 100-160 mm - Dimensions cm 87 x 81.5 x 100 h - Cm packaging dimensions 92 x 85 x 117.5 h Net / gross weight 63/78 kg |
|
Container model BINT830 = Capacity kg 350 - AISI 304 stainless steel structure - Folds 100-160 mm - Dimensions cm 125 x 81.5 x 100 - Cm packing dimensions 130 x 85 x 118 h - Net weight / gross kg 102/120,5 |
INFORMATION: | |
---|---|
Ice under cooled flat scales, has a temperature of about -5°C. 100% ice, of a thickness varying from 1.5 to 2 mm. Easy to store, handle and dose, it is ideal for the fish industry, for meat processing, transport and food preservation. Ideal for: fish markets, supermarkets, industry, etc |
- *HOURLY PRODUCTION
- *fino a 250 kg /24 h*
- *ICE CONTAINER
- *Prepared for external container*
