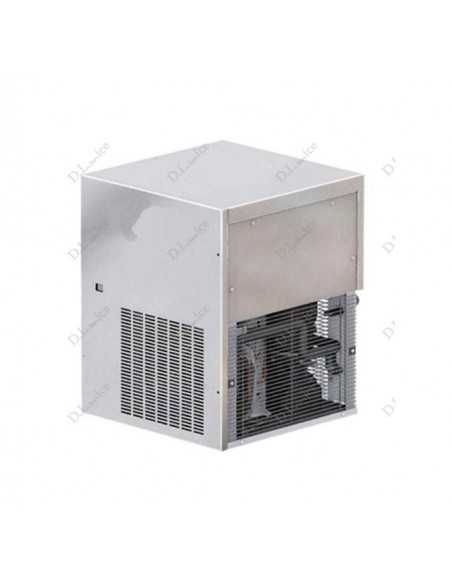

Ice maker - Production kg 140/24 h - cm 56 x 56.9 x 60 h
Pressed granule ice maker - Model MTG310 - Drawing system - Production kg 140/24 h - Matching containers: PE530/T250/T420/RB140 - Dimensions indicative ice mm 8 x 16 x 7 - Refrigerant gas R290 - Power W 650 - Dimensions cm 56 x 56.9 x 60 h
Options
+ ACCESSORIES
Ice Maker | MGT310 |
System | A die |
Dimensions product | Cm 56 x 56.9 x 60 h |
Dimensions packaging | Cm 64.5 x 64.5 x 81 h |
Net weight / Gross | Kg 63 / 74 |
Warranty | 24 months |
Standard | CE |
Origin | Italy |
TECHNICAL DATA | |
---|---|
Production in 24 h | 140 kg |
Compatible containers (excluding) | PE530/T250/T420/RB140 |
Condensation | Air or Water ( to be chosen when ordering) |

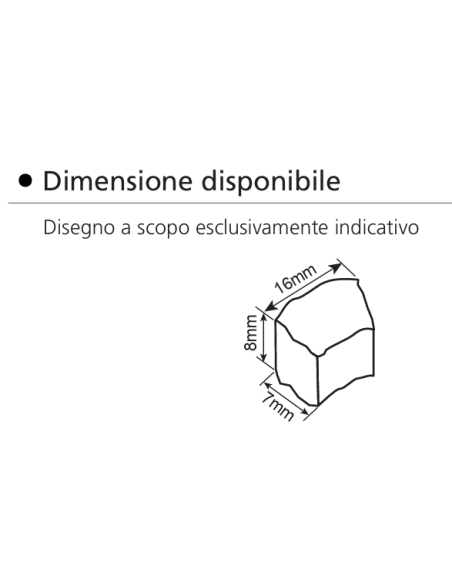

Ice type | mm 8 x 16 x 7 |
Refrigerant gas | R290 |
Power supply | Monophase V220-240 - 50Hz |
Power | W 650 |
Water consumption (air condensation) | 1 l/kg |
Water consumption (condensing ) | 5.5 l/kg |
Fuse | 10A |
CONDITIONS D'INSTALLATION | |
---|---|
Installation | Indoor |
Temperature environment | Min +10°C / Max +43°C |
Temperature water | Min +3°C / Max +32°C |
Inlet water pres | Mix 1bar (14 psi) / 6bar 84 psi) |
TECHNICAL CHARACTERISTICS | |
---|---|
Drawn ice, compact and durable | |
Low consumption (1 lt water / 1 kg ice) - air vers | |
Electromechanical operating system | |
ON switch/OFF | |
External structure AISI 304, Scoth Brite finish | |
Evaporator AISI 304, auger AISI 303 | |
HCFC-free inner container insulation | |
RoHS Directive Compliance | |
Water basin, dustproof system | |
Tropicalized Class +43 model°C | |
Simplified cleaning due to rounded surfaces | |
External protective, removable, easy-to-clean filter | |
Automatic water loading |

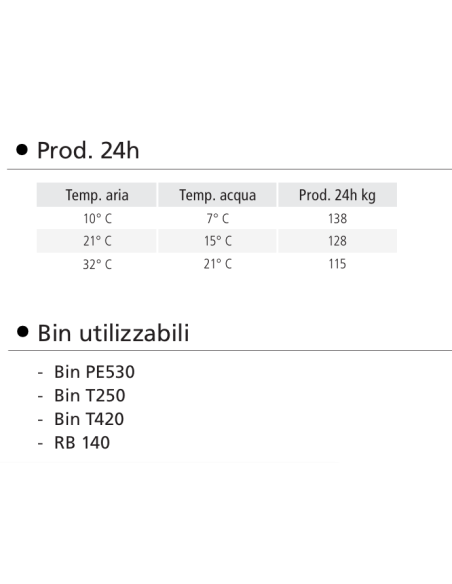

MATCHING BIN CONTAINERS: | |
---|---|
Container model PE530 = Capacity kg 190 - Polyethylene finish - Feet 100-160 mm - Dimensions cm 94.2 x 79.5 x 105.3 h - Dimensions packing Cm 103.5 x 88.5 x 127.5 h - Net weight / gross 61/92 kg Containermodel T250 = Capacity container kg 100 - Dimensions cm 56 x 81.5 x 100 h - Dimensions packing cm 62 x 88 x 117.5 h - Net weight / gross 53/65 kg Container model T420 = Capacity kg 200 - Stainless steel frame AISI 18/10 - Feet 100-160 mm - Dimensions cm 87 x 81.5 x 100 h - Dimensions packing Cm 92 x 85 x 117.5 h - Net weight / gross 63/78 kg Containermodel RB140 = Ice container - Capacity container kg 108 - Reserve kg 17- Water discharge ø mm 24 - Dimensions cm 79.5 x 106 x 128.4 h - Net weight kg 64 |
INFORMATION | |
---|---|
This type of ice is characterized by the ability to provide excellent durability and fully meets all requirements for the preparation of cocktails. |
- *HOURLY PRODUCTION
- *fino a 130 kg / 24 h*
- *ICE CONTAINER
- *Prepared for external container*
