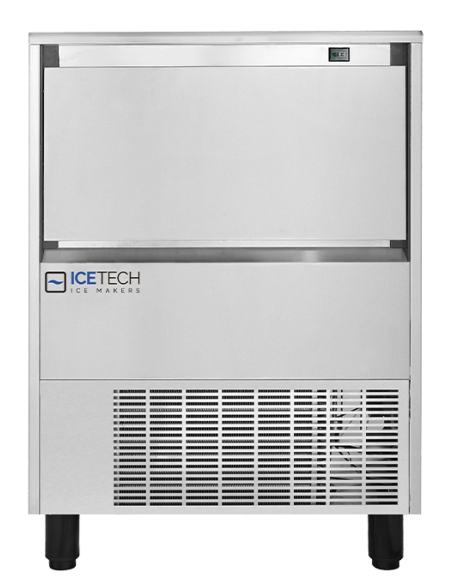

Half-nut ice maker with production 99 kg per day
Half-nut ice maker with production 99 kg per day

  • -8%
Half-nut ice maker with production 99 kg per day
Half-nut ice maker with production 99 kg per day

Half-nut ice maker with production 99 kg per day

I-HT-HD100
I-HT-HD100
€1,970.97 €2,142.36 -8%
€1,970.97 Senza tasse €2,404.58 Con tasse €2,142.36 Senza tasse
Tax excluded

Ice maker - Medium nut - Model HD100 - Air - Production 99 kg/24h - Tank 35 kg - Dimensions cm 66 x 70 x 83.2 h

Option to choose

Options

+ ACCESSORIES


Ice manufacturer HD100
Dimensions cm 66 x 70 x 83.2 h
Dimensions packaging C 74 x 72 x 95.5 h
Net weight / gross Kg 64-76
Warranty 24 months
Norma CE
Origins Spain
TECHNICAL DATA
Type of ice Half a nut
Production (air condensation) KG 99 / 24 h
Container 35 kg
Water pressure 0.7-6 bar
Water inlet connection 3/4"
Exhaust gas connection 25 mm
Power supply Monophase V230/1/50Hz
Refrigerant gas R 290
Power W 465
GENERAL FEATURES
A small cube for high performance applications!
The particular shape of the ice cube in the shape of a nut allows an excellent contact with the drink making this type of ice the ideal cube for high performance applications in the cooling of drinks.
These cubes of ice cut into cubes are frozen in a vertical evaporator.
Ice can be done quickly and is therefore ideal for stores that need high volumes of ice such as fast food restaurants.
Lthe equipment is characterized by small dimensions allowing to improve the ratio between production and the surface used. However, nut-shaped ice cubes are of general use in the hospitality industry.
The nut-shaped cubes are available in two sizes to meet your specific needs
Lwater is sprayed on the surface of the vertical evaporator grid plate so that each cube forms in a grid cell.
This is the most convenient system for costs when the cube volume becomes a fundamental issue
The machine is compact and requires less space than a machine with a horizontal evaporator
Air DP model with exhaust pump : allows installation away from the exhaust point and even use the drain of the sink. The system is installed in the factory. The machine thanks to this accessory will be able to lift the water and give it the necessary impulse to reach the exhaust point. It has a capacity of 3.8 l/min. and allows water to be pumped up to 30 m horizontally and to 1.5 m vertically
