Ice maker with production 220-236 kg per day
Ice maker with production 220-236 kg per day

  • -8%
Ice maker with production 220-236 kg per day
Ice maker with production 220-236 kg per day

Ice maker with production 220-236 kg per day

I-HT-FD215
I-HT-FD215
€2,371.37 €2,577.58 -8%
€2,371.37 Senza tasse €2,893.08 Con tasse €2,577.58 Senza tasse
Tax excluded

Ice maker shape nut - Model FD215 - Production per day air system 220 Kg - Production per day water system 236 Kg - Container to be combined - Refrigerant gas R290 - Dimensions cm 76.2 x 62 x 50 h

Option to choose

Options

+ ACCESSORIES

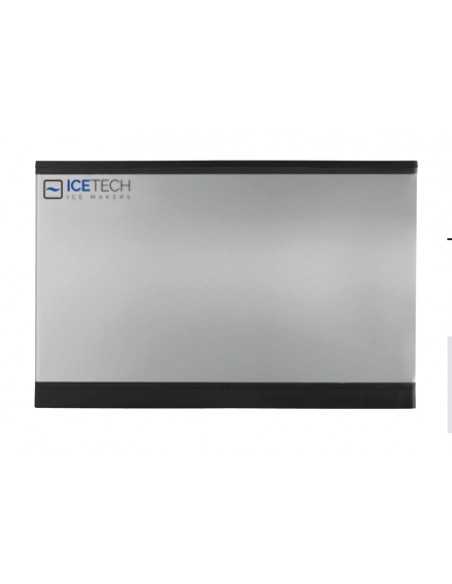

Ice maker FD215
Dimensions C 76.2 x 62 x 50 h
Packaging dimensions C 84 x 64 x 63 h
Net / gross Kg 85/93
Warranty 24 months
Norma CE
Origins Spain
TECHNICAL DATA
Type of ice Dad
Production (air condensation) Kg 220 / 24 h
Production (water condensation) Kg 236 / 24 h
Container To match
Water pressure 0.7-6 bar
Water inlet connection 3/4"
Exhaust gas connection 20 mm
Power supply Monophase V230/1/50Hz
Refrigerant gas R 290
Power W 1200
GENERAL FEATURES

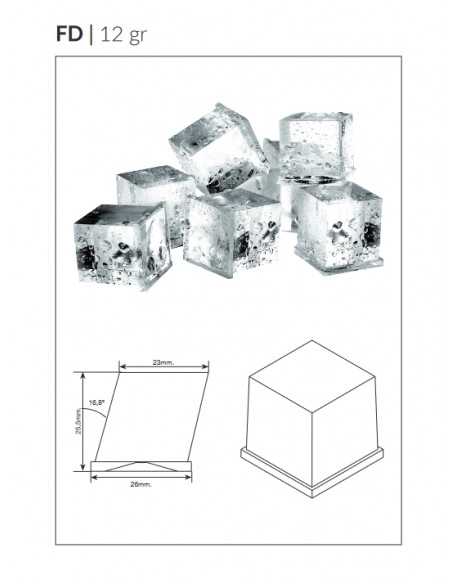

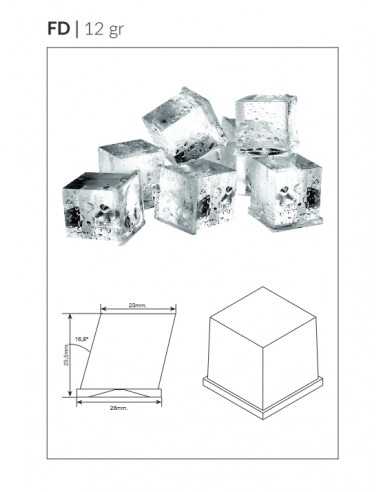

A small cube for high performance applications!
The particular shape of the ice cube in the shape of a nut allows an excellent contact with the drink making this type of ice the ideal cube for high performance applications in the cooling of drinks.
These ice cubes cut into cubes are frozen in a vertical evaporator.
Ice can be done quickly and is therefore ideal for retail outlets that need high volumes of ice as resting fast food.
The equipment is characterized by small dimensions allowing to improve the ratio between production and surface used. However, the cubes of
nut-shaped ice are of general use in the hospitality industry.
The nut-shaped cubes are available in two sizes to meet your specific needs
The water is sprayed on the surface of the vertical evaporator grid plate so that each cube forms in a grid cell.
This is the most convenient system for costs when the cube volume becomes a fundamental issue
The machine is compact and requires less space than a machine with a horizontal evaporator
ABBINABILITY CONTENTS
ITHH-B210 Ice storage container - Capacity kg 225 - Size cm 76.2 x 81.9 x 107.1 h - Weight kg 56
ITHH-B340 Ice storage tank - Capacity kg 350 - Size cm 106.7 x 81.9 x 107.1 h
ITHH-B400 Ice storage tank - Capacity kg 400 - Size cm 121.9 x 81.9 x 107.1 h - Weight kg 75
ITHH-BCS150 Ice storage tank - Capacity kg 137 - Size cm 76.2 x 101.6 x 132 h - Weight kg 82
ITHH-BCS300 Ice storage tank - Capacity kg 300 - Size cm 76.2 x 101.6 x 186.5 h - Weight kg 95
ITHH-BCD400 Ice storage tank - Capacity kg 413 - Size cm 152.4 x 101.6 x 152 h - Weight kg 140
