Recessed hood - Refrigerated - N. 2 doors - cm 150 x 68.5 x 77 h
Recessed hood - Refrigerated - N. 2 doors - cm 150 x 68.5 x 77 h

  • -8%
Recessed hood - Refrigerated - N. 2 doors - cm...
Recessed hood - Refrigerated - N. 2 doors - cm...

Recessed hood - Refrigerated - N. 2 doors - cm 150 x 68.5 x 77 h

IF-F-EY122064-118-088
IF-F-EY122064-118-088
€1,905.28 €2,070.96 -8%
€1,905.28 Senza tasse €2,324.45 Con tasse €2,070.96 Senza tasse
Tax excluded

Recessed hood - Refrigerated - N. 2 doors - Dimensions cm 150 x 68.5 x 77 h

Refrigeration

Options

+ ACCESSORIES


Recessed hood EY122064-118-088

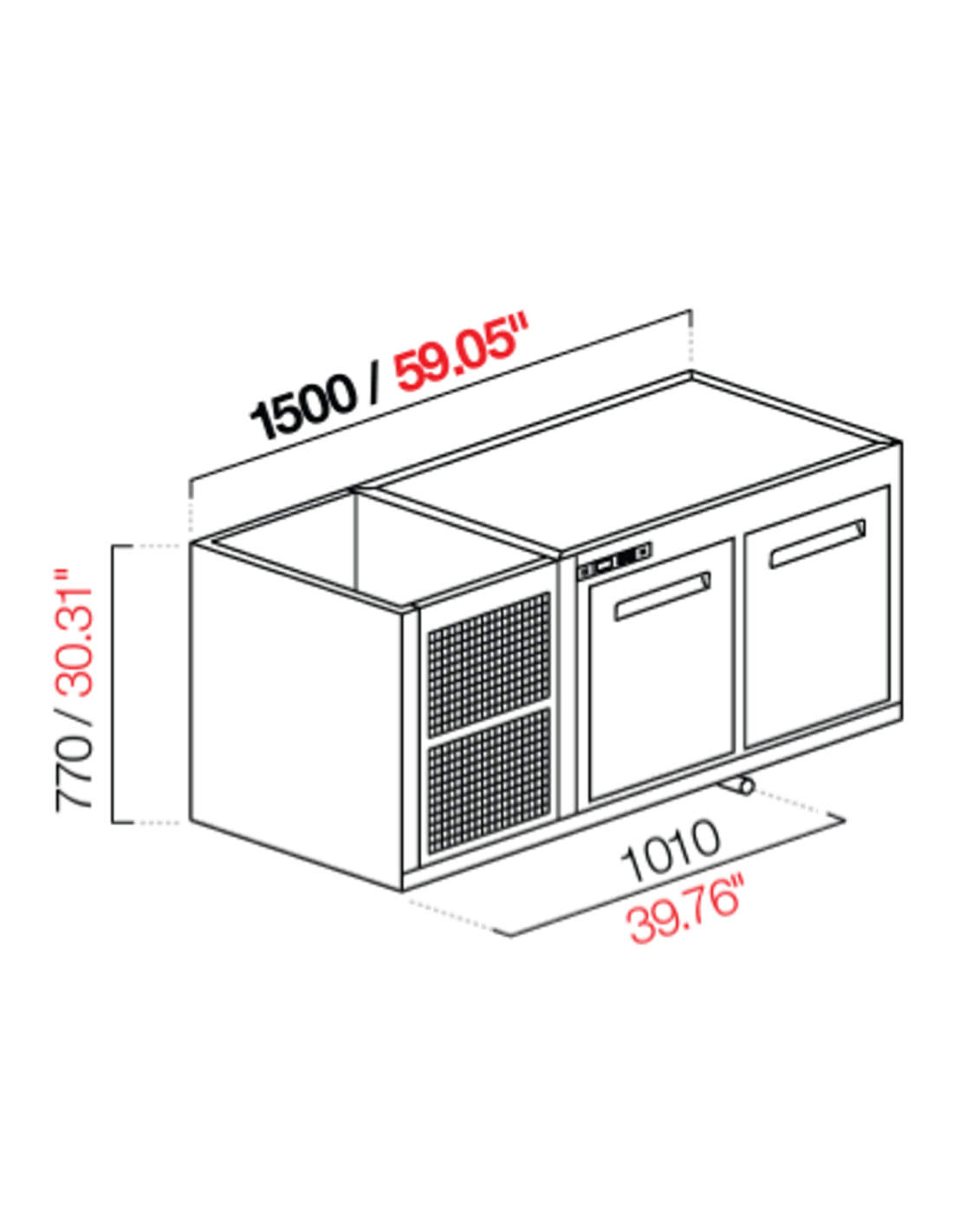

Dimensions product cm 150 x 68.5 x 77 h
Composition N. 2 doors
Norma CE
Warranty 12 months
GENERAL FEATURES
Insulated single block with HFO Solstice LBA Low GWP expansion, interior walls and stainless steel bottom AISI 304 18/10 finish 2B
Electronic control panel
External back in galvanized sheet. Stainless steel cell front AISI 304 18/10 gloss finish BA. External side sides in plasticized sheet
Of series one intermediate grid in grey plastified wire for each compartment can be positioned on 3 different levels via internal hygienic rack printed in stainless steel AISI 304 18/10 with 2B finish
Door with 180 opening° stainless steel AISI 304 18/10 glossy BA finish and magnetic closure
The door, often 55 mm, is isolated with polyurethane and has been tested in climate room at 35°C of room temperature with 60% relative humidity and 20°C ambient temperature with 75% relative humidity
The thickness of the perimeter frame of the door is 20 mm to improve insulation at a point usually critical for condensation formation
The frame mounted on the cell hole is made of PVC extruded with appropriate air chambers for better insulation. The frame counter fits perfectly to the foamed structure of the cell avoiding cold air spill, and is perfectly finished without visible screws
REFRIGERATION
EVAPORATORYE-VEN): Refrigeration system consisting of air compressor, condenser with copper tube and air cooled aluminium fins with fan; evaporator with copper tube and aluminum fins fed to capillary in case of capacitor unit on board, valve in case of remote capacitor unit. Ventilated refrigeration with uniform air distribution through a special conveyor located above the evaporator. Evaporator place to ceiling in the cell L.544, wall in all other modules. Automatic defrosting. The condensation discharge is housed in a special funnel on the bottom of the tank to avoid water leaks; optional condensation evacuation system via condensate evaporation tank with electrical resistance. The system is tested at 35°C / 60% U.R. environment
EVAPORATORYE-STA : Refrigeration system consisting of airtight compressor, condenser with copper tube and air cooled aluminium fins with fan; evaporator with copper tube and aluminum fins fed to capillary in case of capacitor unit on board, valve in case of remote capacitor unit. Static Refrigeration. Automatic defrosting. The condensation discharge is housed in a special funnel on the bottom of the tank to avoid water leaks; optional condensation evacuation system via condensate evaporation tank with electrical resistance. The system is tested at 35°C / 60% U.R.
EVAPORARY A SCOMPARSAE-SCO: Refrigeration system consisting of air compressor, condenser with copper pipe and air cooled aluminium fins with fan; evaporator with copper pipe drowned in polyurethane foam and placed in contact with the inner walls of the cell, fed to capillary in case of capacitor unit on board, valve in case of remote capacitor unit. The cell has always supplied the bottom grids in PST; condensation discharge also has water discharge function. On request ventilation kit, mandatory in case of glass doors. The system is tested at 35°C / 60%U.R. grid bottom cell in PST.
*TEMPERATURE
*Positiva*
*LENGTH
*150 cm*
* DEPTH'
*68.5 cm *
*HEIGHT
*77 cm *
