Forming machine 2 cylinders - Cylinders mm 500 - Filonatore - Raschiatore - cm 77 x 116 x 123 h
Forming machine 2 cylinders - Cylinders mm 500 - Filonatore - Raschiatore - cm 77 x 116 x 123 h
Forming machine 2 cylinders - Cylinders mm 500 - Filonatore - Raschiatore - cm 77 x 116 x 123 h
Forming machine 2 cylinders - Cylinders mm 500 - Filonatore - Raschiatore - cm 77 x 116 x 123 h

  • -8%
Forming machine 2 cylinders - Cylinders mm 500...
Forming machine 2 cylinders - Cylinders mm 500...
Forming machine 2 cylinders - Cylinders mm 500...
Forming machine 2 cylinders - Cylinders mm 500...

Forming machine 2 cylinders - Cylinders mm 500 - Filonatore - Raschiatore - cm 77 x 116 x 123 h

G-MI-F2C500EASY+FIL500
G-MI-F2C500EASY+FIL500
€3,179.75 €3,456.25 -8%
€3,179.75 Senza tasse €3,879.30 Con tasse €3,456.25 Senza tasse
Tax excluded

2 cylinder forming machine - Model F2C500EASY-FIL - Cylinders mm 500 - Grams pasta 30÷2500 - With philanthropist - With painted inner shoulders - With scraper - Power Kw 0.75 - Three-phase power supply V400 / 3 / 50Hz - Size cm 77 x 116 x 123 h


PRODUCT INFORMATION

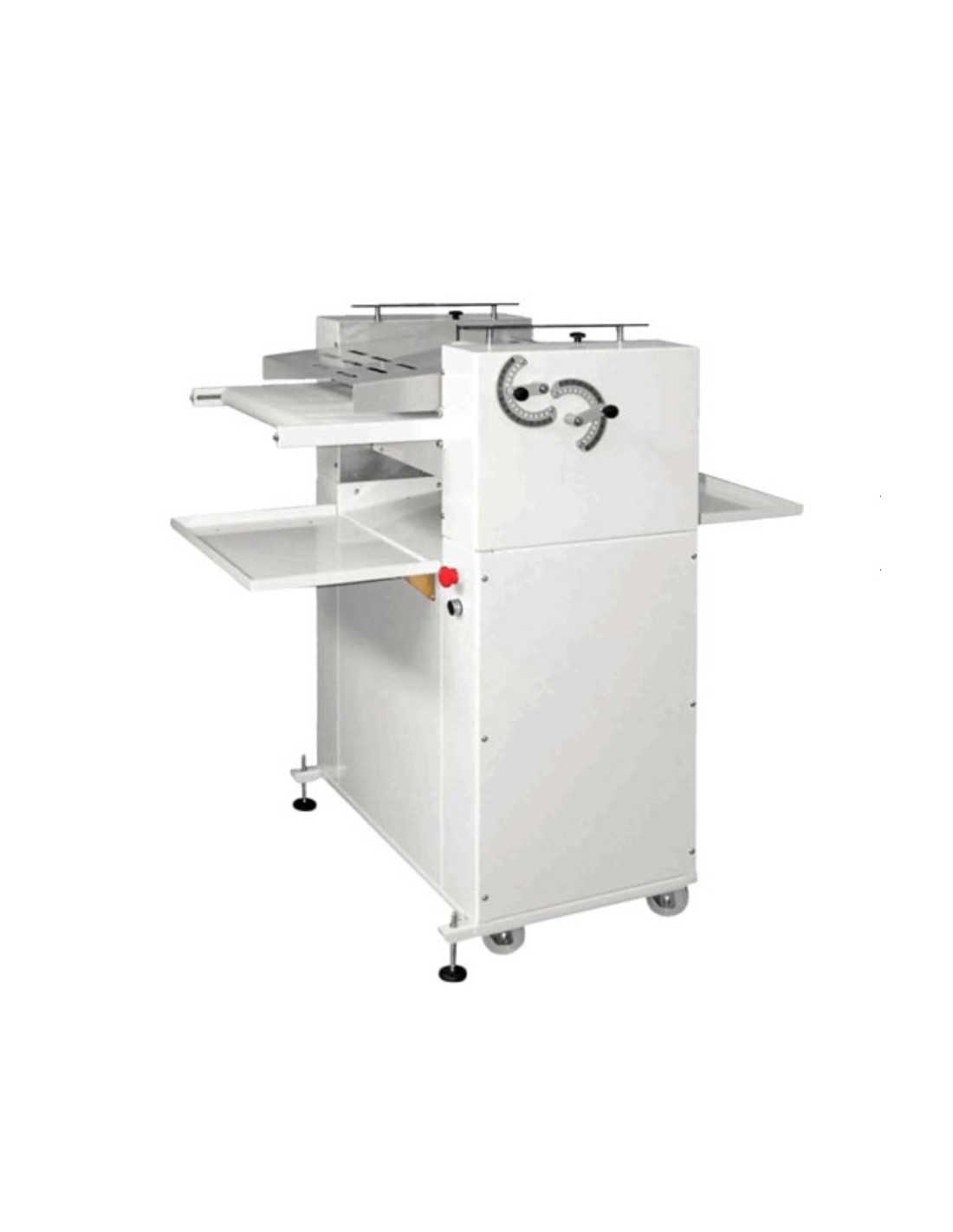

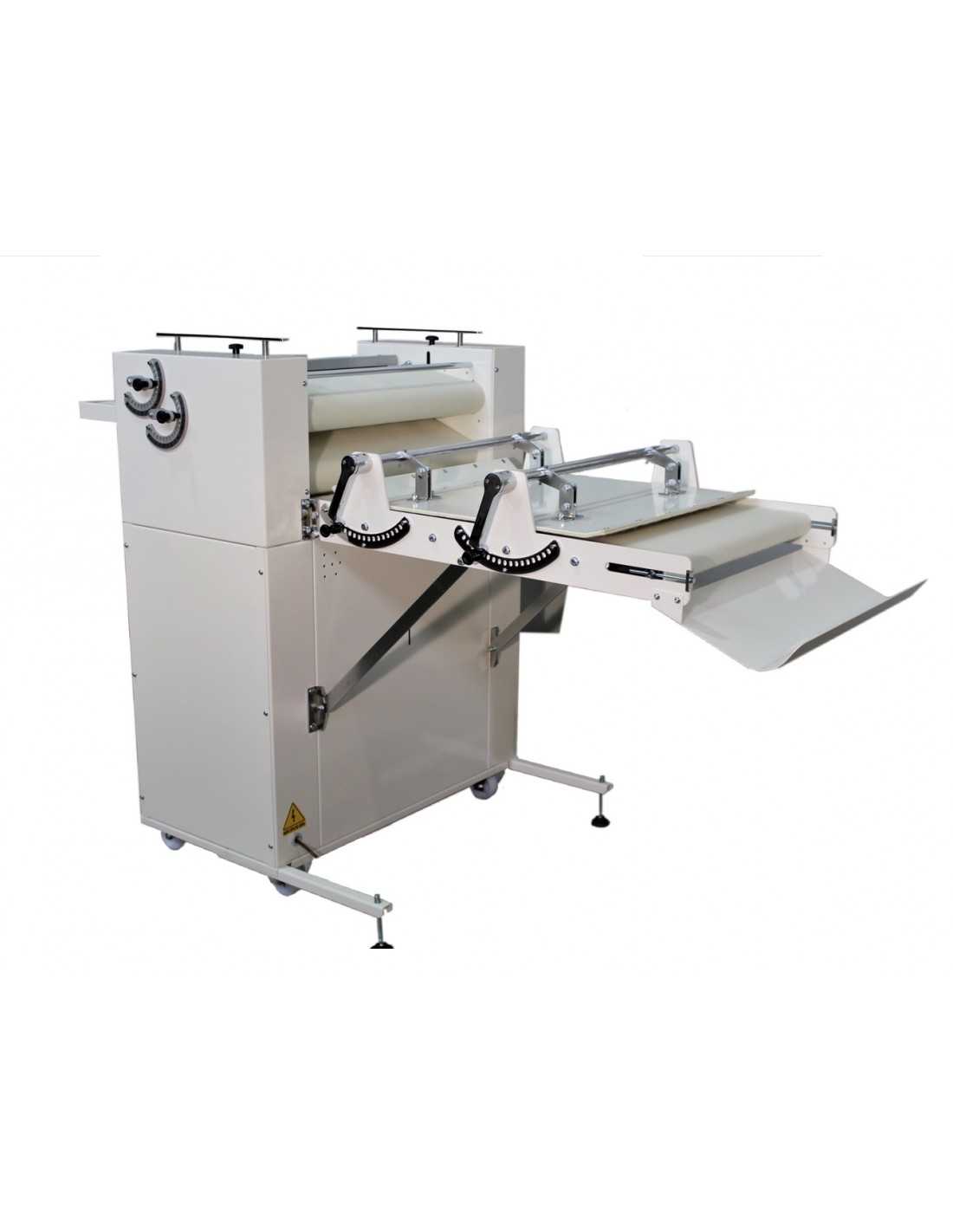

2 cylinder forming machine F2C500 EASY-FIL
Ideal For the production of various shapes and sizes of florins, fillets and pasta, usually wrapped
Dimensions C 77 x 116 x 123 h
Weight Kg 140
Origins Italy
Warranty 12 months
Norma CE
TECHNICAL DATA
Cylinders NO. 2
Cylinder length 500 mm
White painted inner shoulders Yes
With philanthropist 500 mm
Grams of pasta 30 ÷ 2500
Power 0.75 kW
Power supply Triphase V400 / 3 / 50Hz
GENERAL INFORMATION

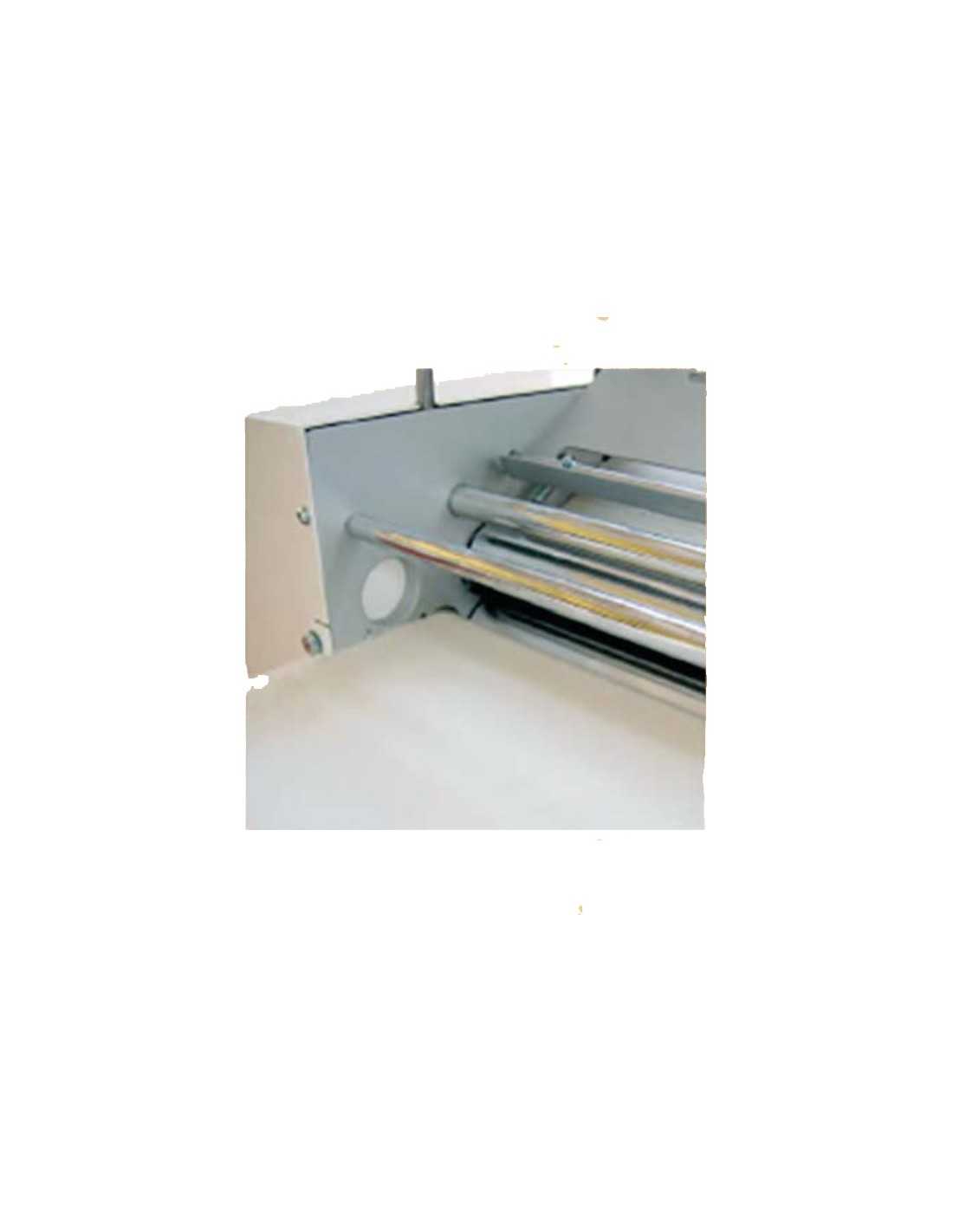

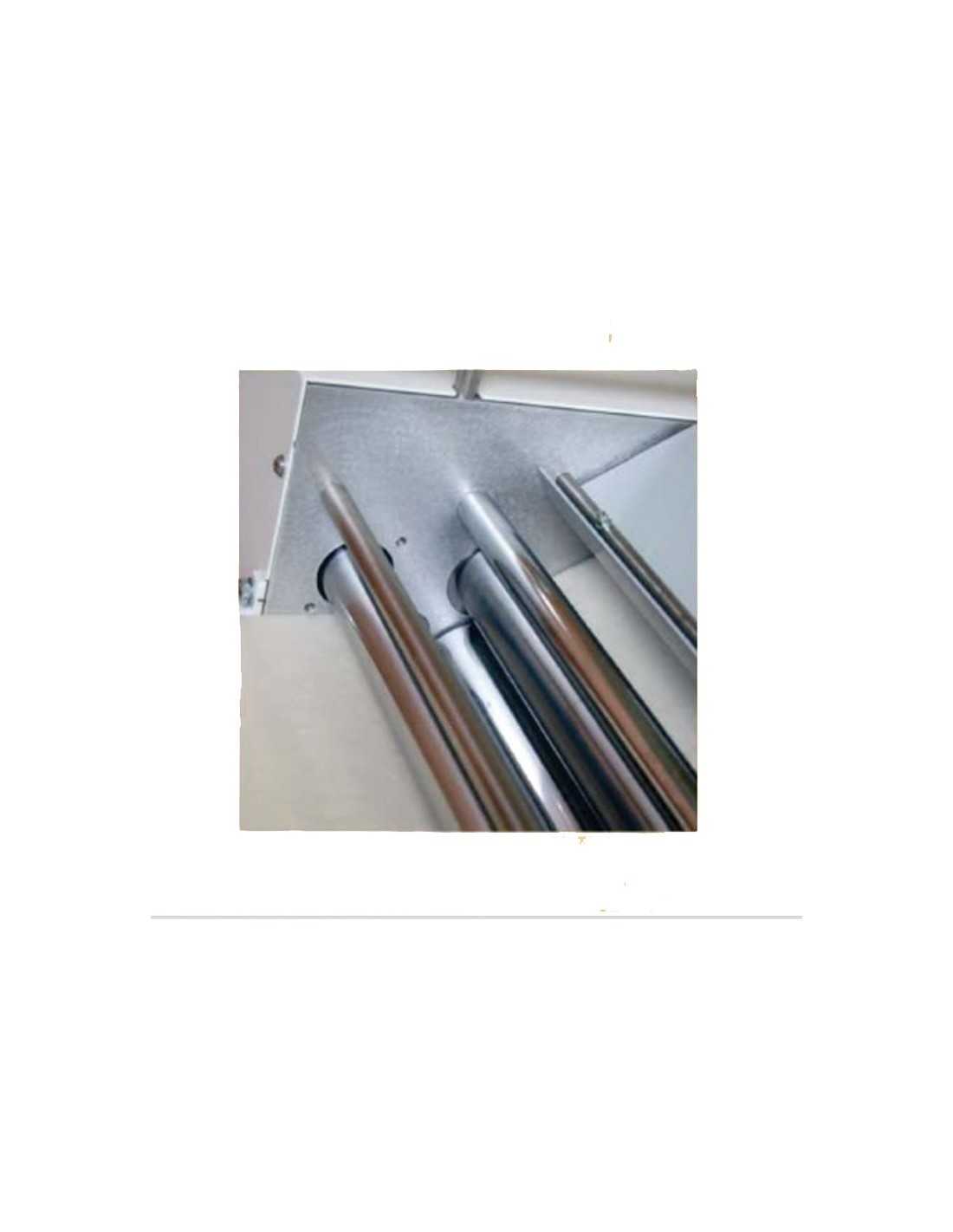

By means of the motorized intro carpet, the dough is conveyed to the rectified laminators, whose particular polishing treatment favours the optimal detachment of the dough from the same
After lamination, the dough is wrapped by the two wool felt carpets, which flowing with opposite motion, provide the wrapping of the dough in the various forms, in consideration of the quantity and inclination with which it was inserted
The product thus obtained can be reconvoked to the operator or remain on the opposite tray for the intellation according to the requirements
The protection grid placed on the intro carpet equipped with safety device for shutdown operation, can be lifted to facilitate cleaning and maintenance
An upper carpet stop device also allows to refine and/or displace small/medium quantities of pasta
The trainer is equipped with 2 fixed wheels and 2 rotating wheels that facilitate the movement and equipped with brakes for the block of the machine during the processing
Construction in heavy carpentry with moving organs, oversized supports and bearings, coating with fire-catalyzed epoxy powders
The machine meets the current safety standards of machines, as well as compliance with hygiene standards on food contact materials
