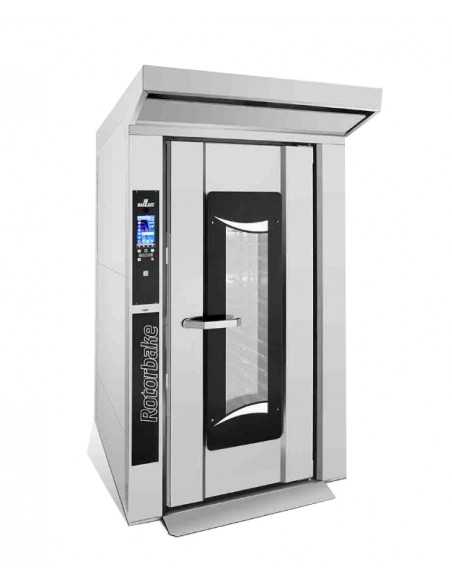

Touch gas oven - N.15x cm 40x60/40x80/66x46/50X/60X65 - cm 115 x 139 x 232h
Rotary trolley oven - ModelRotorbakeT5/15T Vision - Gas - Touch screen controls - Suitable for bread making and pastry - Capacity of pans n.15x cm 40x60/40x80/66x46/50X70/60X65 - Power kW 34.8-kcal/h30.000 - Dimensions cm 115 x 139 x 232h
Options
+ ACCESSORIES
![]() ![]() Water filtration and purification kit for steam
|
Water filtering and purification kit for steam |
|
![]() ![]() Replacement cartridge for filtering and water purification kit
|
Replacement cartridge for filtering and water purification kit |
|
![]() ![]() Complete factory assembly
|
Factory Complete Assembly |
|
![]() ![]() Ethernet and wi-fi connection only with Vision commands
|
Ethernet and wi-fi connection only with Vision commands |
|
![]() ![]() Riello gas ramp burner mb dle405/1 for FS5/8 Rotorbake T5-T8
|
Burner Riello gas ramp mb dle405/1 for FS5/8 Rotorbake T5-T8 |

SHIPMENTS AND DELIVERIES
Couriers deliver to street level and porterage service is excluded. When ordering, the customer is required to inform if delivery is to be made to an inconvenient area. Disturbed areas are all those places that due to distance or conformation of the territory are difficult to reach, ( e.g. islands, LTZ, historical centers, alleys, etc..) To deliver to these destinations, couriers require longer delivery times and the payment of an extra commission.
The goods will be shipped to the address provided during the order process. If it is to be delivered to a different address, it is the customer's responsibility to notify us at the time of ordering. If, after the shipment has been handled, the customer decides to change the destination address, the goods go into storage, resulting in charges for opening the file and for shipping


Professional machinery often comes without the socket for several technical and regulatory reasons:
Standardization and compatibility: Professional machinery is used in different parts of the world, where socket standards and electrical voltages vary. Providing the cord without a socket allows users to adapt the machinery to the standards of their country or work environment.
Installation customization: Professional machinery is often installed by qualified technicians who choose the type of socket or connection best suited to the customer's needs, such as direct connections to the electrical system or specific industrial sockets.
Safety regulations: In some professional settings, regulations require that machinery be connected directly to the electrical system through an earth leakage circuit breaker or fixed connection, rather than through a standard outlet. This reduces the risk of overloading or electrical failure.
Versatility of use: Providing the cable without a socket allows greater flexibility in configuration, preventing the manufacturer from having to manage product variants with specific sockets for each market.
Cost and waste reduction: Not including the socket reduces production costs and avoids waste in case the end user needs a different type of connection.
This practice is common for equipment requiring technical installation or operating in professional environments with specific requirements.

TERMS OF PAYMENT: You will be able to pay for the products ordered on our portal using the following payment methods
_______________________________
1) PAYPAL
D.L.Service Div. E-Commerce Srl provides all the security and speed of payment through Paypal, a secure means of sending money, because it is possible to pay without sharing credit card data.
1) CREDIT OR PAY DEBT CARD IN 2.3.4 INSTALLMENTS
Alma is available for purchases suitable value between € 50.00 and € 2,000.00. It can be paid in 2.3.4 comfortable installments. Payment allowed also in some European countries.
2) CREDIT CARD
By choosing payment by credit card you will be automatically directed to the website of the bank that will handle the transaction. The accepted credit cards are all those that rely on the Visa, MasterCard, American Express, CartaSi, Maestro circuit. The security of the transaction is guaranteed by a data encryption system that uses SSL (Secure Socket Layer) certificates
3) 30% ADVANCE PAYMENT WITH 70% BALANCE WHEN GOODS READY
By choosing this payment method you will have to pay 30% of the total order and the remaining 70% when the goods are ready for shipment. In this case, the customer will be notified two days before shipment in order to issue the balance transfer.
4) ADVANCE BANK TRANSFER
If you prefer to pay by bank transfer, you must send the accounting copy via email: info@ristorazione-refrigerazione.it or via WhatApp to n. +39 389 7940545. The purpose of the transfer must include the order number


Production times can vary from 3 to 15 days. The "Prompt Delivery" sticker is present on thousands of products. For all other products you can request availability by contacting our Customer Care on +39 0824 1816643, sending a WhatsApp message to no. +39 389 7940545 or send an email to info@ristorazione-refrigerazione.it

PRODUCT INFORMATION | |
---|---|
Rotary trolley oven | RotorbakeT5/15T Vision |

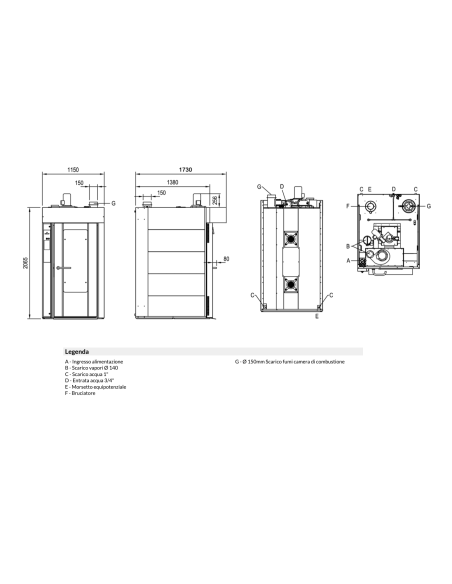

Product size | cm115 x 139 x 232h |
Weight | KG 715 |
Origins | Italy |
Warranty | 12 months |
Norma | CE |
TECHNICAL DATA | |
---|---|
Capacity | n.15x cm 40x60/40x80/66x46/50X70/60X65 |
Distance | mm |
Temperature | Max 270°C |
Consumption | kW 34.8-kcal/h30.000 |

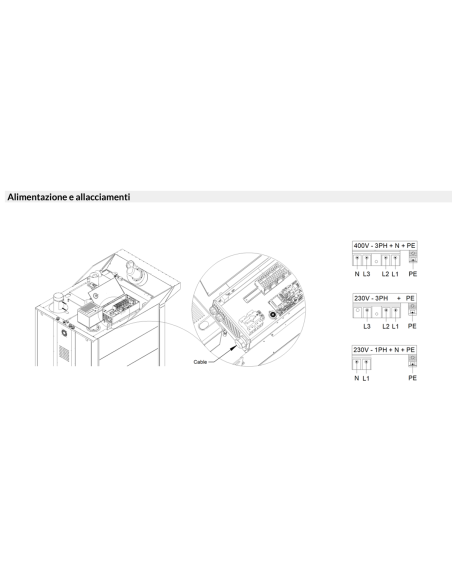

Power supply | V400-3Ph+N+PE/50-60Hz |
INFORMATION | |
---|---|
Rotative oven for fresh, frozen or precooked bread and pastry, compact and versatile thanks to the original and highly reliable 10 year “U” heat exchanger that reduces bulk and consumption by optimizing combustion, highly technological with climate management in the room, programmable cooking cycles up to 10 phases and regulation of ventilation speed. |
GENERAL FEATURES | |
---|---|
Double low emissive glass | |
BakeAIR multi-wind system | |
USB connection | |
High yield thermal insulation | |
Five ventilation and semi-static cooking speeds | |
Five cooking modes | |
Automatic opening of the BakeDRY fireplace | |
Block password programs | |
Automatic climate control in the room | |
Automatic control of the degree of cooking and the load of furnace | |
Steam control in BakeSTEAM percentage | |
Burning room guaranteed 7 years | |
Internal heat exchanger to the cooking chamber | |
Manual steam injection | |
Multi-timer function for multiple cottures and mixesInjection of time programmable steamInjection of manual steam | |
How to use custom programs | |
Storage, display and export cooking data (haccp) | |
Cooling programme | |
Manual usage mode | |
Mode of use with preset programs | |
Automatic preheating | |
Deferred cooking programming | |
Deferred ignition programming | |
Automatic cooling of the cooking chamber | |
Pre-loaded and online receptionist | |
Automatic detection and error reporting | |
7" capacitive touch screen display with icons |
- *TYPE
- *Con vapore diretto*
- *POWER SUPPLY
- *Gas
- *CONTROL PANEL
- *Touch screen*
- * TRAYS CAPACITY
- *15 Teglie / Griglie*
16 other products in the same category:
Electric oven - Grill - Indirect vapor - N.4 x cm 60 x 40 - cm 78.4 x 75.4 x 63.4 h
Electric convection oven with N. 4 Baking pans from GN 1/1 or cm 60 x 40 - cm 86 x 72.5...
Mixed electric oven - N. 10 x cm 60 x 40 or GN 1/1 - cm 94 x 89 x 121.1 h
Gas oven - N. 10 x GN 2/1 - cm 85 x 103.5 x 123 h
Gas oven - N. 4 x cm 60 x 40 - cm 85 x 103.5 x 80 h
Electric Convection Oven with 3 Baking Trays cm 60 x 40 or GN 1/1 - Cm 86 x 72.5 x 53 h
Electric oven - N. 4 x GN 1/1 - cm 72.4 x 73 x 59.7h
Electric oven - N. 10 x GN 2/1 - cm 85 x 104.1 x 113 h
Electric oven - N.6 x cm 60 x 40 - cm 85 x 104.1 x 85 h
Combined electric oven - N. 6 x GN 2/3 - cm 51.7 x 71.5 x 77h
Electric oven - N. 10 x GN 1/1 - 60 x 40 - Direct steam - cm 84 x 91 x 115 h
Electric oven - Indirect vapor - N. 4 x GN 1/1 - cm 78.4 x 75.4 x 63.4h
Home
- PROFESSIONAL SLICERS
- BAR FURNITURE
- Refrigerated back counters
- Back counters for coffee machines
- Neutral back counters
- Multipurpose counters
- Cocktail stations
- Bar counters
- Beer counters
- Tobacco - football pool counters
- Built-in bar counters
- Stainless steel doors and drawers
- Snack display counters
- Bread display counters
- Pizza display counters
- Start Up Line paneled bar counters
- Ice cream counters
- Built-in sinks
- STEEL FURNITURE
- STAINLESS STEEL FURNITURE 430
- BAR-
- FURNITURE COMPLETE KITS
- VENTILATION
- ICE CREAM EQUIPMENT
- BAR EQUIPMENT
- Sauce dispenser
- Pacojet
- Pancake machines
- Toasters
- Hot-dog
- Crepe machine
- Displays - Snack display
- Electric Hotplates
- Fry top snack
- Blenders
- Ice crushers
- Centrifugal
- Citrus Juicers
- Warming Plate
- Hot drinks dispenser
- Doser Coffee Grinder
- Gas plates
- Egg cooker
- Snack bar pasta cookers
- Juice extractors
- Coffee machines
- waffles makers
- Single juice dispenser
- Freeze glasses
- Wine dispenser by the glass
- Milk frother
- KITCHEN EQUIPMENT
- Truffle wash
- Beer dispenser
- Passatrici - Stoning machines
- Mixer
- Groups grinders
- Fryers
- Mussel cleaners
- Bain maries tanks and displays
- Onion peelers
- Salamanders
- Plate warmers
- Rice cooker
- Complete workstation
- Pacojet / Emulsifiers
- Vegatable cleaner
- Lava rock grills
- Thermal blenders
- Food dehydrator - Smoker
- Soup Bowls
- Snack hobs
- Cutter with cooking system
- Tigella maker
- Sauce dispensers
- Can opener
- Electric knife
- Professional air fryers
- Potato peeler
- Cutter
- Graters
- Vegetable Slicers
- ICE CREAM PARLOR EQUIPMENT
- Blast chillers - freezers
- Ice cream display counters
- Cream cookers
- Batch freezers / Ice cream makers
- Soft serve ice cream machines
- Cream whippers
- Pasteurizers
- Ice cream presses
- Patisserie - ice cream displays
- Semifinished Ice cream display counters
- Ageing vats
- Ice cream fridges
- Containers - Ice cream various accessories
- Ice cream sandwich maker
- Pacojet / Emulsifiers
- BUTCHER EQUIPMENT
- Sterilizers
- Meat Showcases
- Meat mincers
- Bone bandsaws
- Chopping blocks
- Tenderizers
- Meat mixer
- Combi meat mincer - grater
- Refrigerated meat mincer
- Curing chambers
- Butcher Display counter
- Knife Sharpner
- Manual Hamburger Maker
- Chopping boards
- Gloves - Stainless steel apron
- Butcher trolleys
- Exhibition floor lamp
- Butcher hooks
- Meat cutting displays
- Bagging machines
- Meat refrigerators
- BAKERY EQUIPMENTS
- Bread displays counters
- Sourdough fermentors
- Bread grinders
- Retarder proofers
- Bread dough moulders
- Breadstick makers
- Taralli heaters
- Flour sieve
- Bread counters
- Tagliafrese
- Pasta and pizza dough dividers - rounders
- Bread ovens
- Bakery - pastry ovens
- Bread kneader
- Bread displays - bread back counters
- Self service bakery displays
- Retarder proofer rooms
- Water chillers
- Bread grinders
- PASTRY EQUIPMENT
- Pastry and Ice Cream display counters
- Refrigerated patisserie tables
- Waffle makers
- Proofers
- Blast chillers - freezers
- Praline mixers
- Pastry dough sheeters
- Pastry fryers
- Pastry counter
- Chocolate pourers and temperers
- Chocolate melter
- Chocolate spray
- Refrigerated griddle
- Tartellette machines
- Dosing - Filling Machines
- Chocolate fountains
- Kurtoskalacs
- Pastry ovens
- Planetary mixers
- Eggs beats
- Sugar grinder
- Pastry display counters
- Slicers
- Sourdough fermentors
- Glazing machines
- Sugar lamps
- Biscuit machines
- Chocolate tables
- PIZZA EQUIPMENT
- FOOD BANKS E MULTIDECK CHILLERS
- CHECKOUT COUNTERS
- SCALES
- TROLLEYS E ACCESSORIES
- NEUTRAL|HOT|REFRIGERATED DRAWERS
- ISOTHERMAL CONTAINERS
- CONTAINERS - TRAYS - ACCESSORIES
- LOW TEMPERATURE COOKING
- PROFESSIONAL COOKING
- ETHNIC KITCHENS
- PIADINA COOKERS
- PROTECTIVE EQUIPMENT E HYGIENE
- DROP-IN UNITS
- BUFFET AND REFRIGERATED FURNITURE
- FRUIT STANDS
- WINE DISPLAYS
- ICE MACHINES
- OVENS E PROOFERS
- PHARMACY FRIDGES
- ROTISSERIE E KEBAB
- SLUSH MACHINES E COOLERS
- PLANETARY MIXERS
- LAUNDRY
- WASHING EQUIPMENT
- PASTA MANUFACTURING
- PROFESSIONAL REFRIGERATION
- Upright fridge with glass door
- Freezers - chillers pit
- Refrigerated Tables
- Refrigerated snack display
- Mini-bar
- Upright fridges with blind door
- Combined Fridges
- Refrigerated/hot deli wall units and back counters
- Cold rooms
- Countertop - undercounter beverage dispensers
- Beer refrigerated boxes
- Blast chillers
- Bottle coolers
- Retarder-proofing cabinets and tables
- Back counters
- Circular refrigerators
- Removable refrigerated cabinets
- FISH LINE
- LUNA PARK LINE
- SERVICE FURNITURE
- INDUSTRY 4.0
- RESTAURANTS E BUFFET
- WASTE DISPOSAL
- MANUAL SERIES E VARIOUS
- Sterilizers
- PACKAGING MACHINES
- "Outdoor" furnishing accessories
- FAST FOOD EQUIPMENT
- Hot dog
- Bain-Marie For Sauce
- Bain-marie for sausage
- Hamburger showcase
- Multi snack trolley
- Heated cutting station
- Topping Warmer
- Heated funnel with piston
- Frytop with toaster
- Pump Dispenser
- Workstation for crepes
- Hot counter for chips
- Cheese raclette
- Warming drawer
- Toaster
- Butter spreader
- Fast food pasta cooker
- Storage and maintenance cabinet
- Support for containers
